Rear Side Door Window Channel Rear Retainer Replacement

Rear Side Door Window Channel Rear Retainer Replacement

Warning

Refer to Glass and Sheet Metal Handling Warning. Removal Procedure

Warning

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

1. Rear Side Door Trim » Remove — Rear Side Door Trim Removal and Installation

Rear Side Door Window Channel Rear Retainer Replacement — figure 1

2. Rear Side Door Trim Bolt (1) » Remove [2x]
3. Rear Side Door Pull Handle Bracket (2) » Remove

Rear Side Door Window Channel Rear Retainer Replacement — figure 2

4. Route the rear side door inside handle cable through hole in deflector (1).
5. Rear Side Door Water Deflector (1) » Remove

Rear Side Door Window Channel Rear Retainer Replacement — figure 3

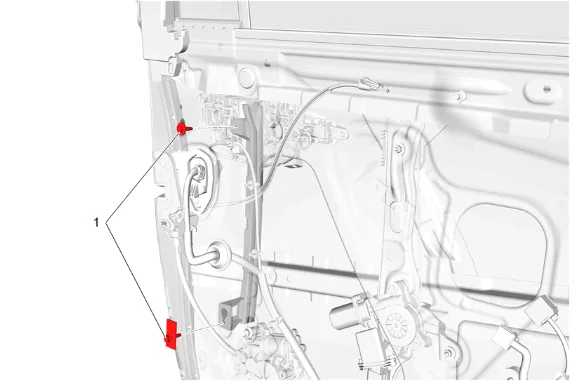

6. Rear Side Door Window Channel Rear Retainer Bolt (1) » Remove [2x]

Rear Side Door Window Channel Rear Retainer Replacement — figure 4

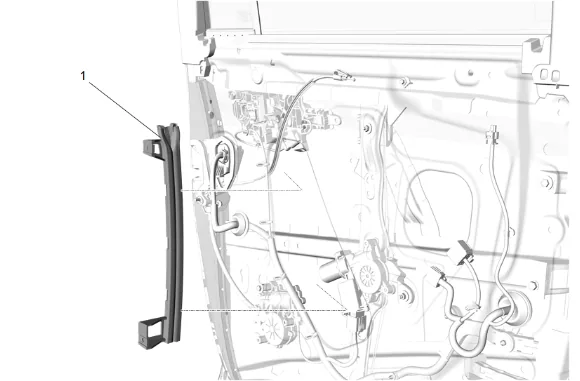

7. Rear Side Door Window Channel Rear Retainer(1) » Remove Installation Procedure

8. Rear Side Door Window Channel Rear Retainer(1) » Install

Caution

Refer to Fastener Caution.

2. Rear Side Door Window Channel Rear Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Route the rear side door inside handle cable through hole in deflector (1).

Note

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

4. Rear Side Door Water Deflector (1) » Install

5. Rear Side Door Pull Handle Bracket (2) » Install

6. Rear Side Door Trim Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Rear Side Door Trim » Install — Rear Side Door Trim Removal and Installation
