Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07)

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) Removal Procedure

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 1

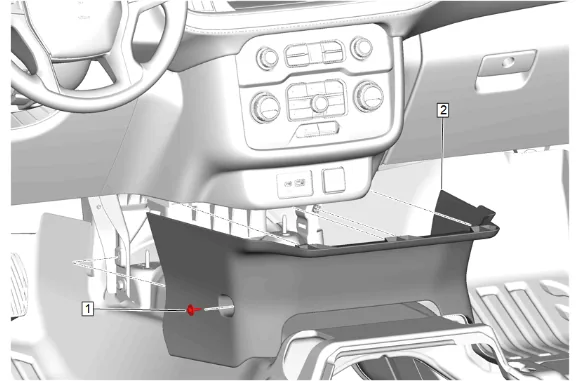

1. Instrument Panel Lower Trim Panel Bolt (1) » Remove
2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Lower Center Trim Panel (2) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 2

4. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 5

9. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
10. Disconnect the electrical connectors.
11. Instrument Panel Trim Pad (2) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 6

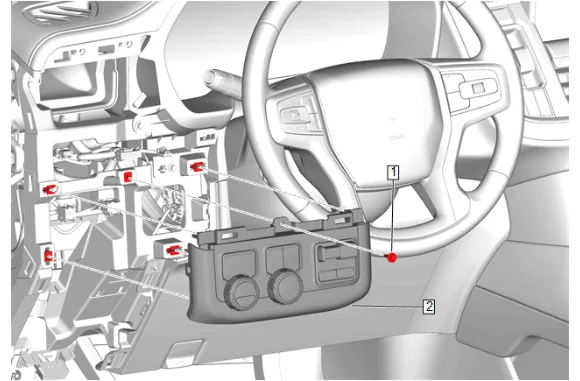

12. Instrument Panel Switch Trim Plate Bolt (1) » Remove
13. Disconnect the electrical connectors.
14. Instrument Panel Switch Trim Plate (2) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 7

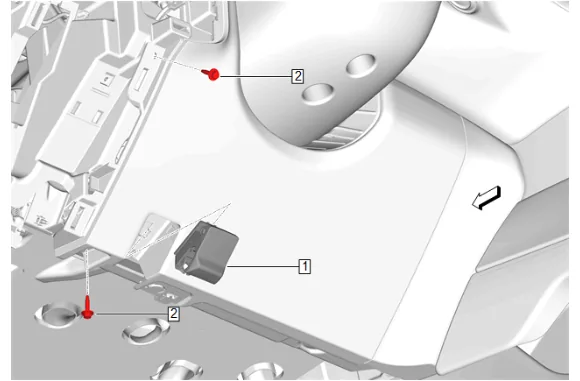

15. Hood Primary Latch Release Cable Handle (1) » Release
16. Instrument Panel Knee Bolster Bolt (2) » Remove [2x]

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 8

Warning

When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

Note

You may have to push down on the lower steering column closeout to clear the instrument panel cluster trim plate.

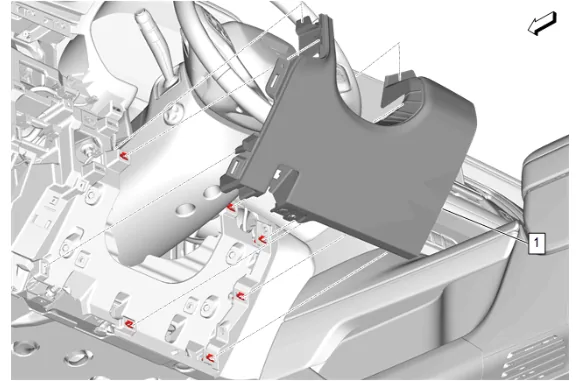

17. Instrument Panel Knee Bolster (1) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 9

18. Using a flat-bladed plastic trim tool, release the retaining clips.
19. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 10

20. Using a flat-bladed plastic trim tool, release the retaining clips.
21. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 11

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 12

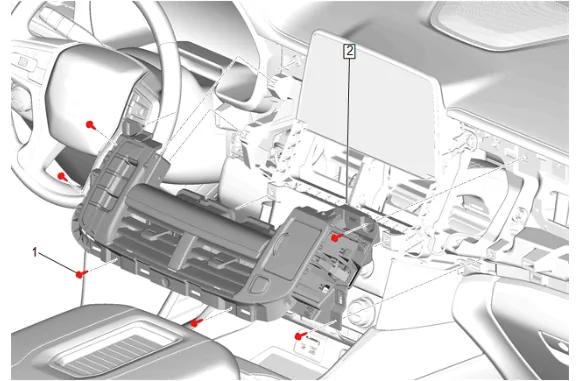

24. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
25. Using a flat-bladed plastic trim tool, release the retaining clips.
26. Disconnect the electrical connector.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

27. Instrument Panel Trim Pad (2) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 13

28. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
29. Disconnect the electrical connectors.
30. Instrument Panel Transmission Shift Opening Cover (2) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 14

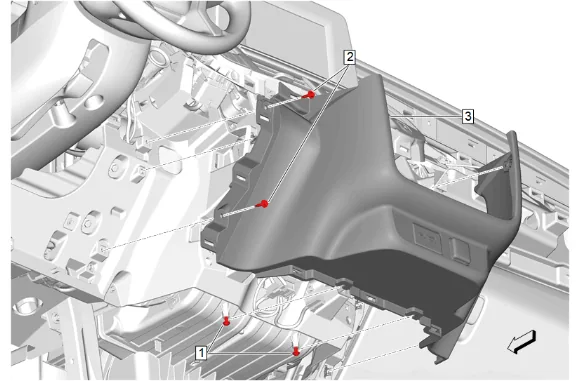

31. Instrument Panel Lower Trim Panel Bolt (1) » Loosen [2x]
32. Instrument Panel Lower Trim Panel Bolt (2) » Remove [2x]
33. Instrument Panel Lower Trim Panel (3) » Remove
34. Disconnect the electrical connectors.

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 15

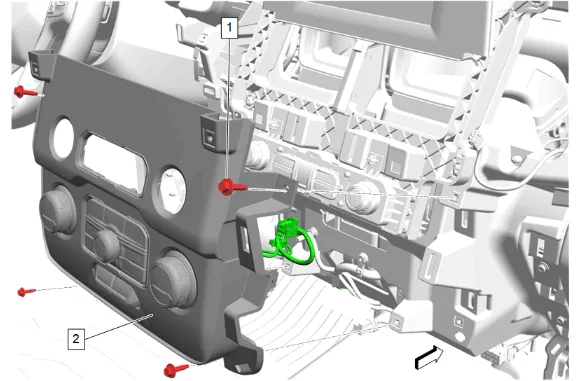

35. Instrument Panel Accessory Bezel Bolt (1) » Remove [4x]
36. Reposition the component to access the electrical connector.
37. Disconnect the electrical connector.
38. Instrument Panel Accessory Bezel (2) » Remove

Instrument Panel Accessory Bezel Replacement (without DCH, DCK, D07) — figure 16

39. Heater and Air Conditioning User Interface Control Bolt (1) » Remove [4x]

40. Heater and Air Conditioning User Interface Control (2) » Remove Installation Procedure

41. Heater and Air Conditioning User Interface Control (2) » Install

Caution

Refer to Fastener Caution.

2. Heater and Air Conditioning User Interface Control Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Connect the electrical connector.

4. Instrument Panel Accessory Bezel (2) » Install

5. Instrument Panel Accessory Bezel Bolt (1) » Install and tighten [4x] — Fastener Specifications

6. Connect the electrical connectors.

7. Instrument Panel Lower Trim Panel (3) » Install

8. Instrument Panel Lower Trim Panel Bolt (2) » Install and tighten [2x] — Fastener Specifications

9. Instrument Panel Lower Trim Panel Bolt (1) » Tighten [2x] — Fastener Specifications

10. Connect the electrical connectors.

11. Instrument Panel Transmission Shift Opening Cover (2) » Install

12. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

13. Connect the electrical connector.

14. Instrument Panel Trim Pad (2) » Install

15. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

16. Instrument Panel Center Trim Plate Applique (1) » Install

17. Instrument Panel Trim Plate Applique (1) » Install

18. Instrument Panel Fuse Block Access Hole Cover (1) » Install

Warning

When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

19. Instrument Panel Knee Bolster (1) » Install

20. Instrument Panel Knee Bolster Bolt (2) » Install and tighten [2x] — Fastener Specifications

21. Hood Primary Latch Release Cable Handle (1) » Install

22. Connect the electrical connectors.

23. Instrument Panel Switch Trim Plate (2) » Install

24. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

25. Connect the electrical connectors.

26. Instrument Panel Trim Pad (2) » Install

27. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

28. Instrument Panel Trim Plate Applique (1) » Install

29. Instrument Panel Fuse Block Access Hole Cover (1) » Install

30. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

31. Instrument Panel Lower Center Trim Panel (2) » Install

32. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications
