Internal Components (1)

Internal Components

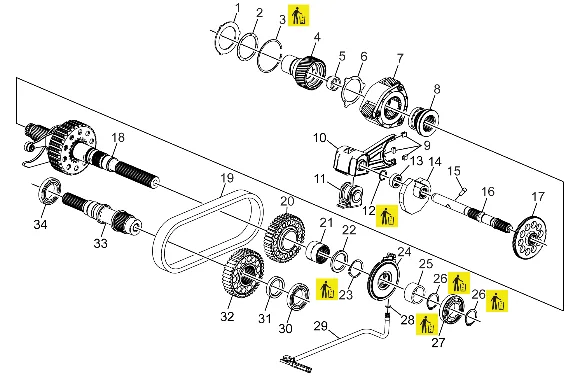

Internal Components (1) — figure 1

(1) Transfer Case High/Low Locking Plate (2) Transfer Case Input Shaft Washer (3) Transfer Case Input Shaft Inner Retaining Ring (4) Transfer Case Input Shaft (5) Transfer Case Input Shaft Pilot Bearing (6) Transfer Case Planetary Carrier Sun Gear Thrust Washer (7) Transfer Case High/Low Planetary Carrier (8) Transfer Case High/Low Clutch (9) Transfer Case High/Low Shift Fork Insert (10) Transfer Case High/Low Shift Fork (11) Transfer Case High/Low Shift Fork Spring (12) Transfer Case Two/Four Wheel Drive Actuator Cam Retaining Ring (13) Transfer Case Two/Four Wheel Drive Actuator Cam Spacer (14) Transfer Case Two/Four Wheel Drive Actuator Cam (15) Transfer Case High/Low Shift Fork Pin (16) Transfer Case Control Actuator Shaft (17) Transfer Case Two/Four Wheel Drive Actuator Shaft Gear (18) Transfer Case Rear Output Shaft (19) Transfer Case Front Output Shaft Drive Chain Assembly (20) Transfer Case Front Output Shaft Drive Sprocket (21) Transfer Case Front Output Shaft Drive Sprocket Bearing (22) Transfer Case Front Output Shaft Driven Sprocket Spacer - Rear (23) Transfer Case Front Output Shaft Drive Sprocket Retaining Ring (24) Transfer Case Oil Pump (25) Transfer Case Rear Output Shaft Bearing Spacer (26) Transfer Case Rear Output Shaft Rear Bearing Retaining Ring (27) Transfer Case Rear Output Shaft Rear Bearing (28) Transfer Case Oil Pump Suction Pipe Seal (29) Transfer Case Oil Pump Suction Pipe (30) Transfer Case Front Output Shaft Rear Bearing (31) Transfer Case Front Output Shaft Driven Sprocket Spacer (32) Transfer Case Front Output Shaft Driven Sprocket (33) Transfer Case Front Output Shaft (34) Transfer Case Front Output Shaft Front Bearing
