Tahoe / Yukon Service Manual

Wireless Charging System Module Replacement (DCK, D07)

Removal Procedure

Wireless Charging System Module Replacement (DCK, D07) — figure 1
Wireless Charging System Module Replacement (DCK, D07) — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Lower Applique (1) » Remove
Wireless Charging System Module Replacement (DCK, D07) — figure 2
Wireless Charging System Module Replacement (DCK, D07) — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Applique (1) » Remove
Wireless Charging System Module Replacement (DCK, D07) — figure 3
Wireless Charging System Module Replacement (DCK, D07) — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Lower Applique (1) » Remove
Wireless Charging System Module Replacement (DCK, D07) — figure 4
Wireless Charging System Module Replacement (DCK, D07) — figure 4
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Applique (1) » Remove

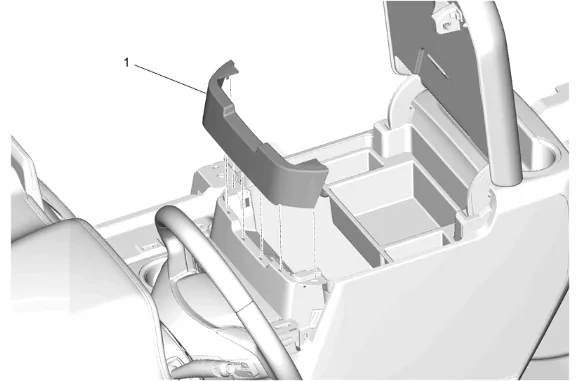

Wireless Charging System Module Replacement (DCK, D07) — figure 5
Wireless Charging System Module Replacement (DCK, D07) — figure 5
  1. Using a suitable plastic trim tool, release the retaining tabs.
  2. Front Floor Rear Console Side Trim Panel (1) » Remove

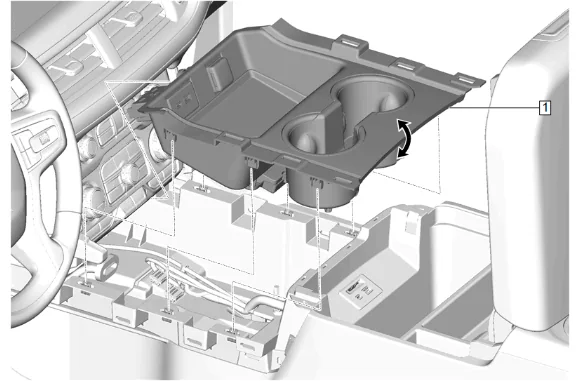

Wireless Charging System Module Replacement (DCK, D07) — figure 6
Wireless Charging System Module Replacement (DCK, D07) — figure 6
  1. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
  2. Disconnect the electrical connectors.
  3. Front Floor Console Cup Holder Trim Plate (1) » Remove

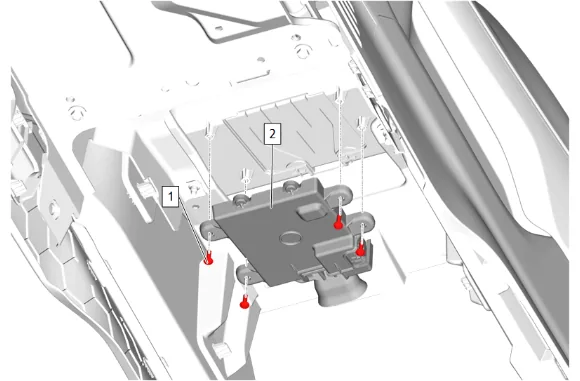

Wireless Charging System Module Replacement (DCK, D07) — figure 7
Wireless Charging System Module Replacement (DCK, D07) — figure 7

  1. Wireless Charging System Module Bracket Bolt (1) » Remove [4x]

  2. Wireless Charging System Module (2) » Remove Installation Procedure

  3. Wireless Charging System Module (2) » Install

  1. Wireless Charging System Module Bracket Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Connect the electrical connectors.

  3. Front Floor Console Cup Holder Trim Plate (1) » Install

  4. Front Floor Rear Console Side Trim Panel (1) » Install

  5. Front Floor Console Applique (1) » Install

  6. Front Floor Console Lower Applique (1) » Install

  7. Front Floor Console Applique (1) » Install

  8. Front Floor Console Lower Applique (1) » Install
