Communication Interface Module Battery Replacement

Removal Procedure

Communication Interface Module Battery Replacement — figure 1

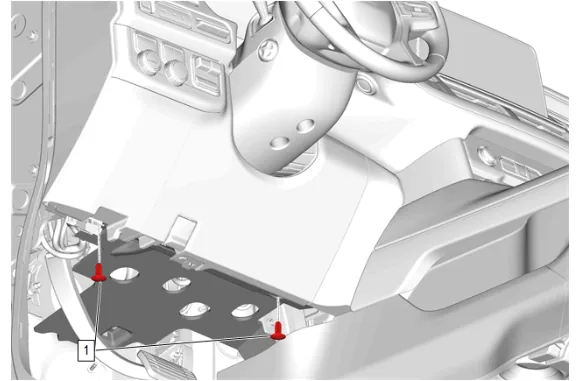

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

Communication Interface Module Battery Replacement — figure 2

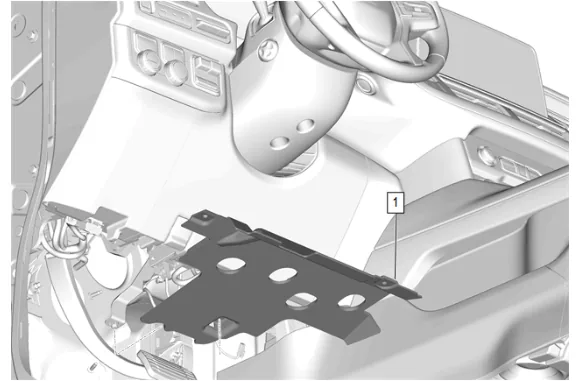

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove

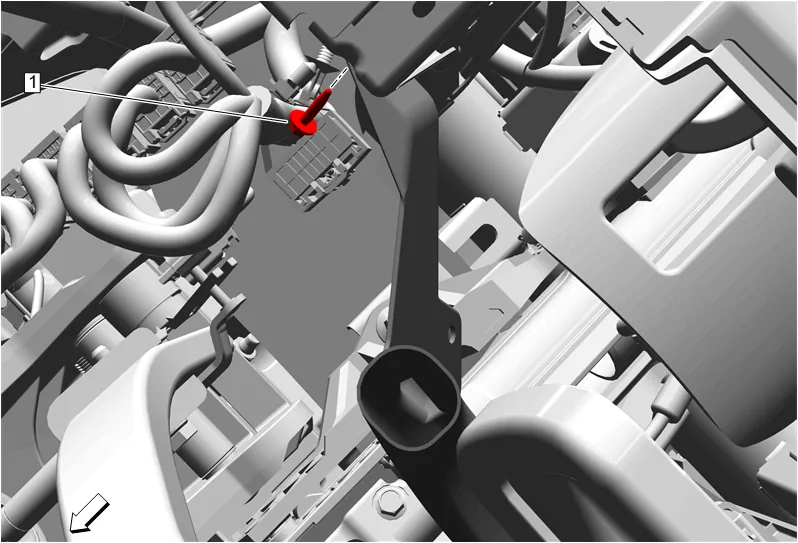

Communication Interface Module Battery Replacement — figure 3

3. Floor Front Air Outlet Duct Bolt (1) » Remove

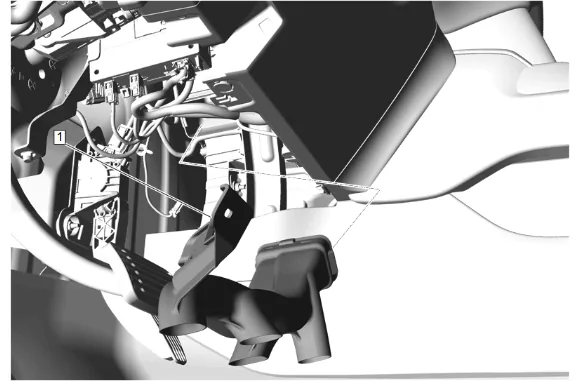

Communication Interface Module Battery Replacement — figure 4

4. Floor Front Air Outlet Duct - Left Side (1) » Remove

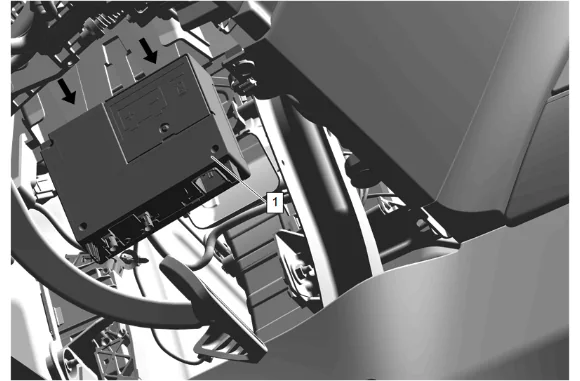

Communication Interface Module Battery Replacement — figure 5

5. Disconnect the electrical connectors.
6. Release the retaining tabs.
7. Telematic Control Module (1) » Remove

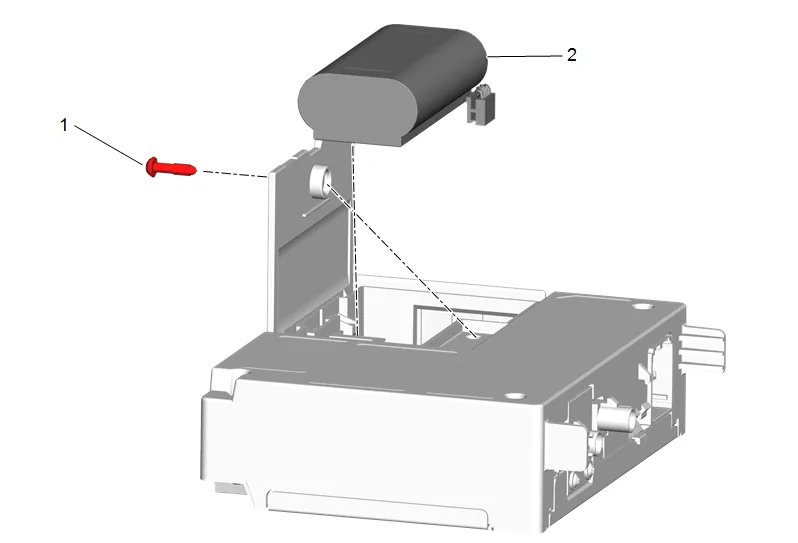

Communication Interface Module Battery Replacement — figure 6

8. Communication Interface Module Battery Bolt (1) » Remove

9. Communication Interface Module Battery (2) » Remove Installation Procedure

10. Communication Interface Module Battery (2) » Install

Caution

Refer to Fastener Caution.

2. Communication Interface Module Battery Bolt (1) » Install and tighten — Fastener Specifications

3. Telematic Control Module (1) » Install

4. Connect the electrical connectors.

Warning

Upon installing the floor duct to the side of the HVAC case, it is necessary to verify duct opening is completely installed, surrounding the HVAC case outlet port. Failure to do so could result in the duct falling downward, with the potential to interfere with driver’s legs and gas/brake pedal operation.

5. Floor Front Air Outlet Duct - Left Side (1) » Install

6. Floor Front Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

7. Instrument Panel Lower Trim Panel Insulator (1) » Install

8. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

9. Perform the necessary programming and setup procedure: Control Module References
