Park Release Lever and Park Pawl Actuator Installation

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 5112494 Single Use Fasteners and Components Manual Shift Shaft Pin Park Pawl Actuator Guide Pin Transmission Fluid Cooler Pipe Fitting Seal [2x] Special Tools DT-47770 Seal Installer Equivalent regional tools: Special Tools

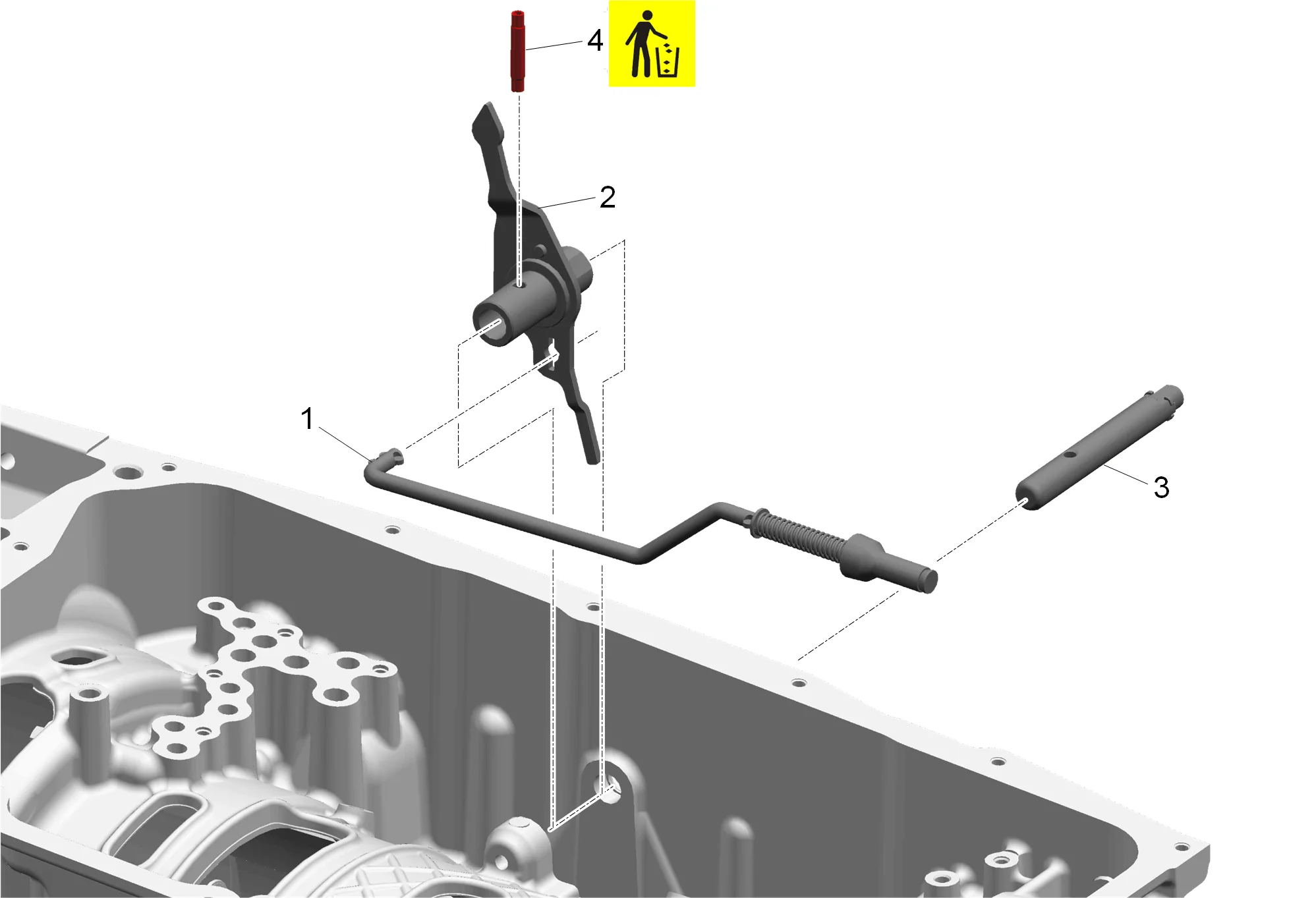

Park Release Lever and Park Pawl Actuator Installation — figure 1

1. Park Pawl Actuator Assembly (1) » Install
2. Park Release Lever (2) » Install
3. Manual Shift Shaft (3) » Install

Note

Install the NEW pin so equal amounts stick out from either side of the manual shaft.

4. Manual Shift Shaft Pin (4) » Install NEW

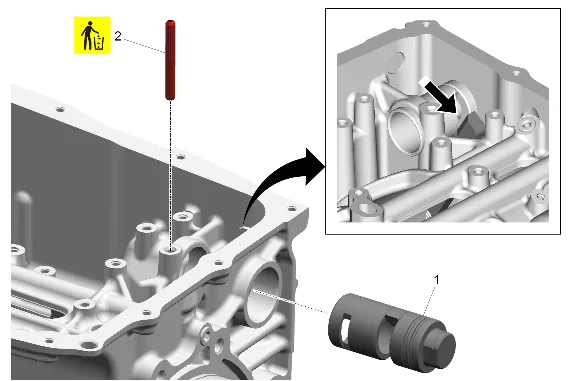

Park Release Lever and Park Pawl Actuator Installation — figure 2

1. Pull the park pawl away indicated by the arrow, then install the Park Pawl Actuator Guide Assembly (1) into the case.
2. Park Pawl Actuator Guide Assembly (1) » Install

Caution

Refer to Pin Reuse Caution

3. Park Pawl Actuator Guide Pin (2) » Install NEW

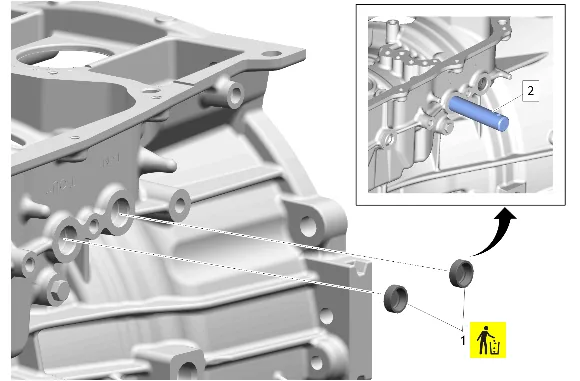

Park Release Lever and Park Pawl Actuator Installation — figure 3

1. Use DT-47770 Seal Installer (2) to install the Transmission Fluid Cooler Pipe Fitting Seal (1).
2. Transmission Fluid Cooler Pipe Fitting Seal (1) » Install NEW [2x]
