Front Suspension 4 Corner Leveling System Position Sensor Replacement

Front Suspension 4 Corner Leveling System Position Sensor Replacement Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

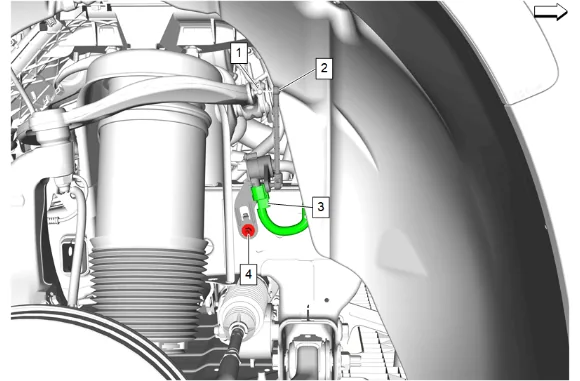

Front Suspension 4 Corner Leveling System Position Sensor Replacement — figure 1
Front Suspension 4 Corner Leveling System Position Sensor Replacement — figure 1
  1. Disconnect the front suspension 4 corner leveling system position sensor link (2) from the electronic suspension front position sensor link ball stud (1).
  2. Disconnect the electrical connector (3).
  1. Loosen the front suspension 4 corner leveling system position sensor (4).

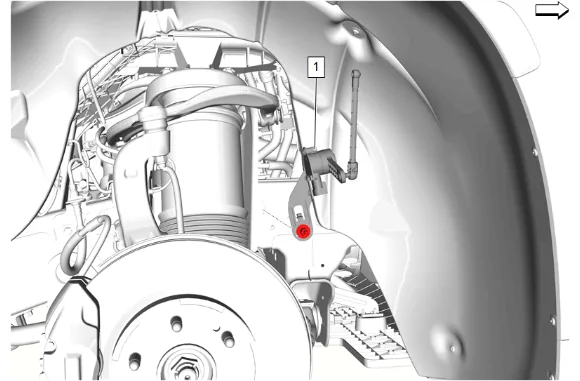

Front Suspension 4 Corner Leveling System Position Sensor Replacement — figure 2
Front Suspension 4 Corner Leveling System Position Sensor Replacement — figure 2
  1. Remove the front suspension 4 corner leveling system position sensor (1) from the keyhole slot at the frame. Installation Procedure
  1. Insert the front suspension 4 corner leveling system position sensor (1) into the keyhole slot at the frame.
  1. Tighten the front suspension 4 corner leveling system position sensor (4). Fastener Specifications
  2. Connect the electrical connector (3).
  3. Connect the front suspension 4 corner leveling system position sensor link (2) to the electronic suspension front position sensor link ball stud (1).
  4. Remove the support and lower the vehicle.
  5. Clear All Vehicle DTCs
  6. Perform the electronic suspension position sensor trim height calibration. Automatic Level Control Trim Height Learn
