Front Tire Front Air Deflector Replacement

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

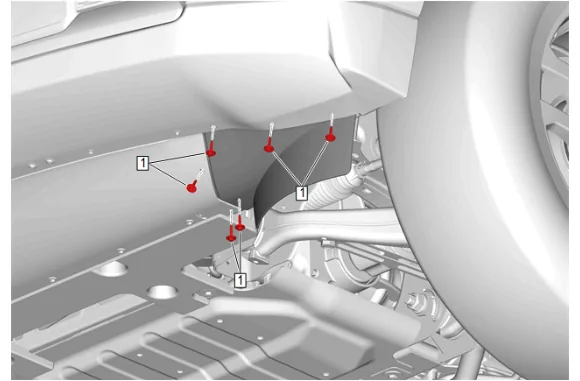

Front Tire Front Air Deflector Replacement — figure 1
Front Tire Front Air Deflector Replacement — figure 1
  1. Front Tire Front Air Deflector Bolt (1) » Remove [6x]

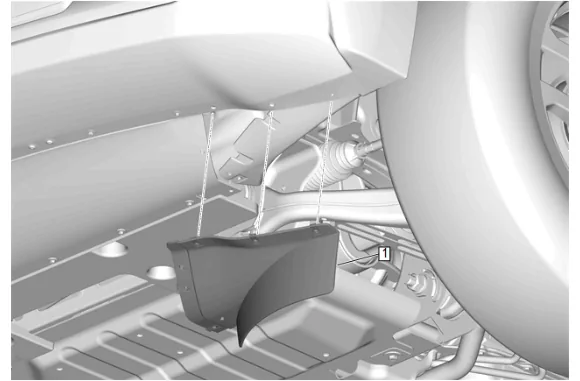

Front Tire Front Air Deflector Replacement — figure 2
Front Tire Front Air Deflector Replacement — figure 2

  1. Front Tire Front Air Deflector (1) » Remove Installation Procedure

  2. Front Tire Front Air Deflector (1) » Install

  1. Front Tire Front Air Deflector Bolt (1) » Install and tighten [6x] — Fastener Specifications
  2. Lower the vehicle.
