Rear Side Door Upper Hinge and Lower Hinge Replacement

Rear Side Door Upper Hinge and Lower Hinge Replacement Removal Procedure

1. Mark the location of the upper hinge before removing the bolts with a grease pencil.

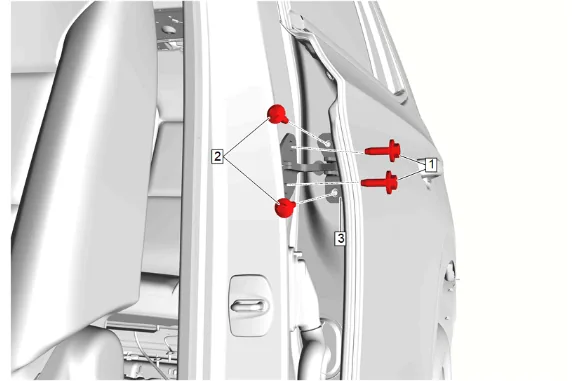

Rear Side Door Upper Hinge and Lower Hinge Replacement — figure 1

Note

Keep the door in the closed position and replace only one hinge at a time.

2. Rear Side Door Hinge Bolt - Body Side (1) » Remove [2x]
3. Rear Side Door Hinge Bolt - Door Side (2) » Remove [2x]
4. Rear Side Door Upper Hinge (3) » Remove
5. Mark the location of the lower hinge before removing the bolts with a grease pencil.

Rear Side Door Upper Hinge and Lower Hinge Replacement — figure 2

6. Rear Side Door Hinge Bolt - Body Side (1) » Remove [2x]

7. Rear Side Door Hinge Bolt - Door Side (2) » Remove [2x]

8. Rear Side Door Lower Hinge (3) » Remove Installation Procedure

9. Rear Side Door Lower Hinge (3) » Install

Caution

Refer to Fastener Caution.

2. Rear Side Door Hinge Bolt - Door Side (2) » Install and tighten [2x] — Fastener Specifications

3. Rear Side Door Hinge Bolt - Body Side (1) » Install and tighten [2x] — Fastener Specifications

4. Rear Side Door Upper Hinge (3) » Install

5. Rear Side Door Hinge Bolt - Door Side (2) » Install and tighten [2x] — Fastener Specifications

6. Rear Side Door Hinge Bolt - Body Side (1) » Install and tighten [2x] — Fastener Specifications

7. Inspect the door for proper operation and alignment.

8. If necessary, adjust the rear side door. Rear Side Door Adjustment
