Rear Wheel Drive Shaft Replacement - Left Side (G96)

Single Use Fasteners and Components Rear Wheel Drive Shaft Nut Rear Wheel Drive Shaft Washer Special Tools DT-45859 Axle Remover Equivalent regional tools: Special Tools. Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle
2. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 1

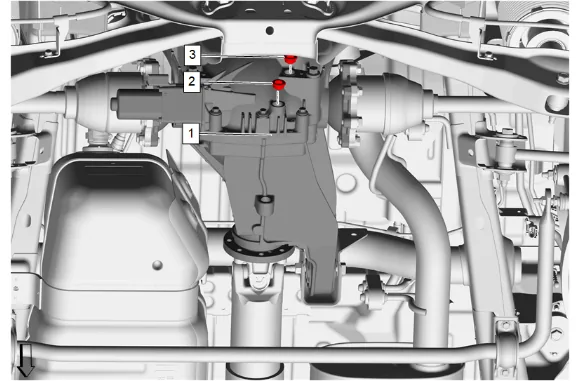

3. Position a drain pan under the rear differential carrier (1).
4. Rear Axle Housing Drain Plug (2) » Remove
5. Rear Axle Housing Fill Plug (3) » Remove
6. Clean the rear axle housing drain and fill plugs. Allow the fluid to completely drain.

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 2

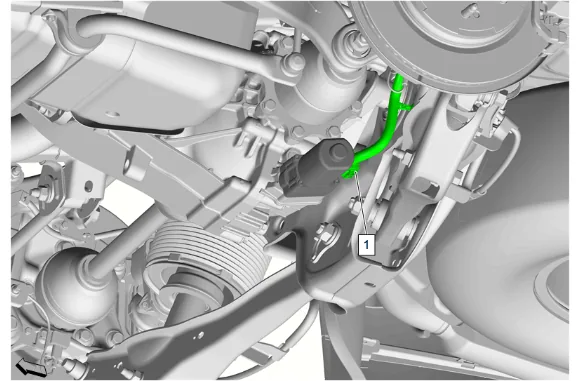

7. Disconnect the limited slip differential clutch motor electrical connector (1)

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 3

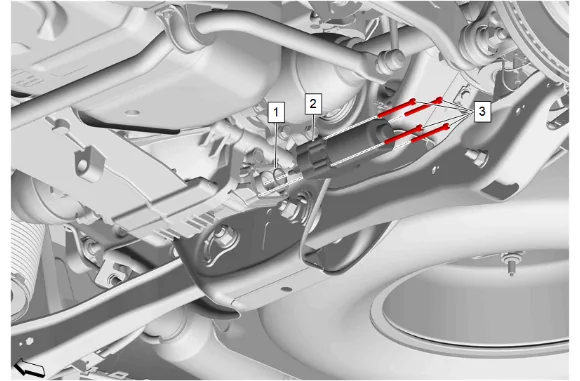

8. Limited Slip Differential Clutch Motor Bolt (3) » Remove [4x]
9. Limited Slip Differential Clutch Motor (2) » Remove
10. Limited Slip Differential Clutch Motor Seal (1) » Remove
11. Have an assistant apply the brakes.

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 4

Caution

DO NOT use air tools to remove the wheel drive shaft nut. Damage to the wheel drive shaft threads could occur. Use hand tools only.

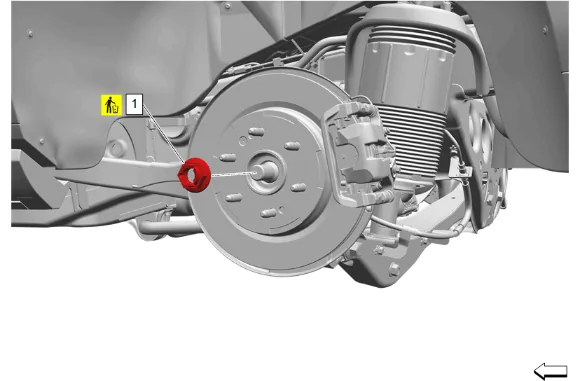

12. Rear Wheel Drive Shaft Nut (1) » Remove and DISCARD

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 5

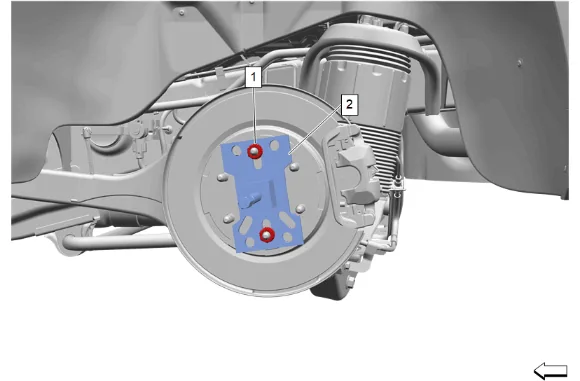

13. Install the DT-45859 Axle Remover (2) to the rear wheel hub and secure with 2 wheel nuts (1) hand tightened.
14. Using the DT-45859 Axle Remover (2), release the rear wheel drive half shaft from the rear wheel hub.
15. Remove the 2 wheel nuts (1) and the DT-45859 Axle Remover (2) from the rear wheel hub.

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 6

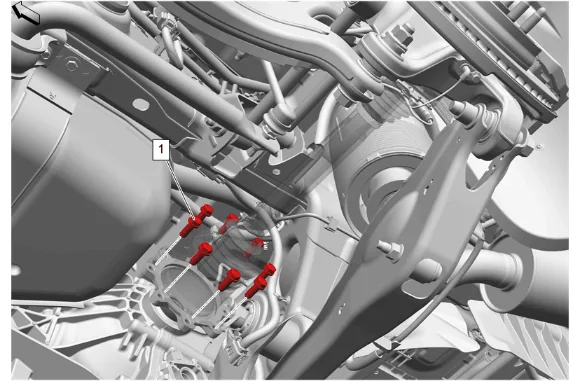

16. Rear Wheel Drive Shaft Bolt (1) » Remove [8x]

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 7

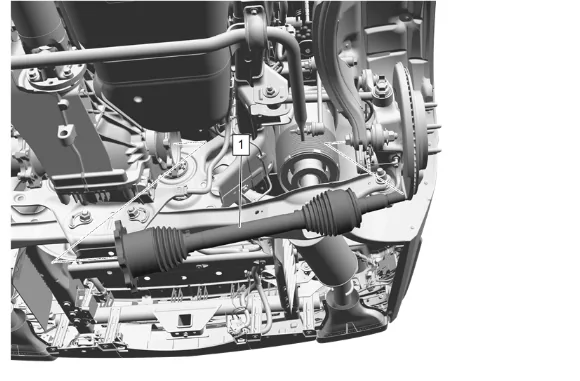

17. Rear Wheel Drive Shaft (1) » Remove

Rear Wheel Drive Shaft Replacement - Left Side (G96) — figure 8

18. Remove and DISCARD the rear wheel drive shaft washer (1). Installation Procedure

19. Install NEW rear wheel drive shaft washer (1).

20. If reusing the rear wheel drive shaft, inspect the boots for damage before re-installing.

21. Rear Wheel Drive Shaft (1) » Install

22. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 4.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 4.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 4.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 4.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Caution

Refer to Fastener Caution.

5. Rear Wheel Drive Shaft Bolt (1) » Install and tighten [8x] — Fastener Specifications
6. Have an assistant apply the brakes.

Caution

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

7. Rear Wheel Drive Shaft Nut (1) » Install NEW and tighten — Fastener Specifications

8. Limited Slip Differential Clutch Motor Seal (1) » Install

9. Limited Slip Differential Clutch Motor (2) » Install

10. Limited Slip Differential Clutch Motor Bolt (3) » Install and tighten [4x] — Fastener Specifications

11. Connect the limited slip differential clutch motor electrical connector (1)

Caution

Refer to Component Fastener Tightening Caution.

12. Rear Axle Housing Drain Plug (2) » Install and tighten — Fastener Specifications
13. Fill the rear differential carrier with the appropriate amount and type of axle lubricant: Approximate Fluid Capacities Adhesives, Fluids, Lubricants, and Sealers
14. The gear lubricant level should be 1–2 mm (0.039-0.079 in) below the fill plug opening.
15. Rear Axle Housing Fill Plug (3) » Install and tighten — Fastener Specifications
16. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
17. Remove the support and lower the vehicle.
