Tahoe / Yukon Service Manual

Battery Replacement (LM2)

Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
Battery Replacement (LM2) — figure 1
Battery Replacement (LM2) — figure 1

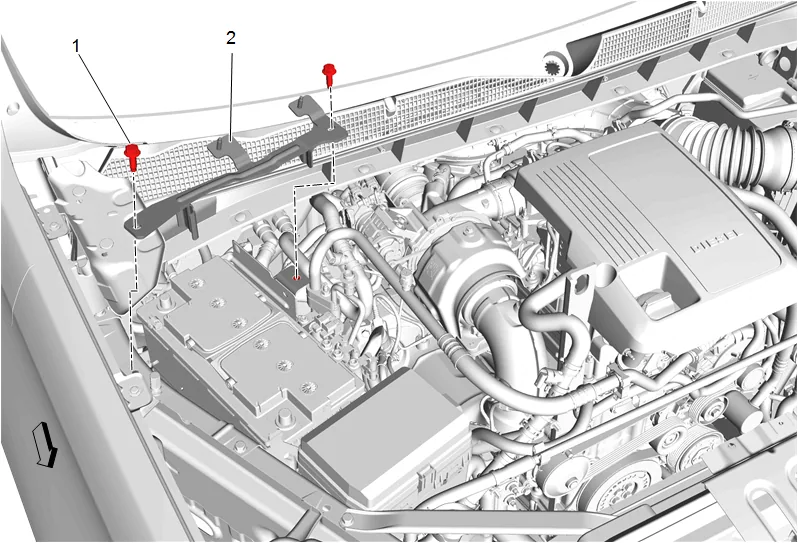

  1. Battery Hold Down Strap Bolt (1) » Remove [2x]
  2. Battery Hold Down Strap (2) » Remove
Battery Replacement (LM2) — figure 2
Battery Replacement (LM2) — figure 2

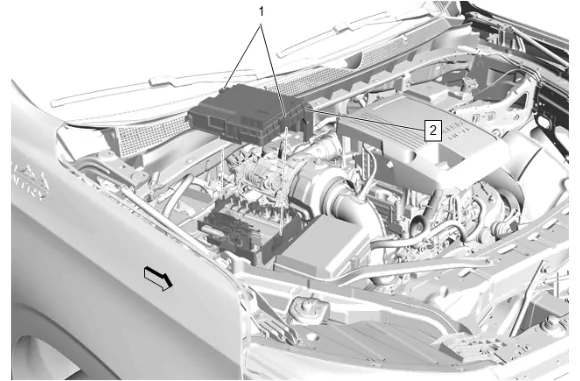

  1. Retaining Tab (1) » Disengage [2x]
  2. Front Compartment Fuse Block Cover (2) » Remove
Battery Replacement (LM2) — figure 3
Battery Replacement (LM2) — figure 3

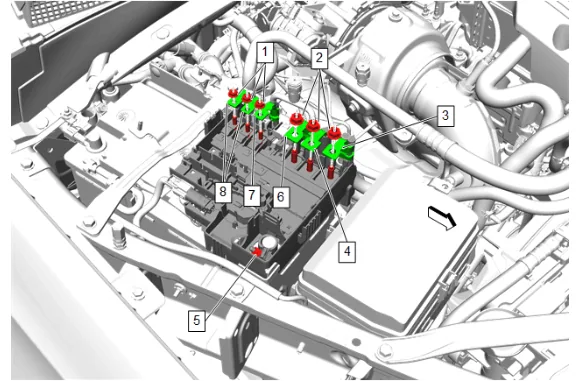

  1. Battery Positive Post Clamp Nut (5) » Loosen
Battery Replacement (LM2) — figure 4
Battery Replacement (LM2) — figure 4

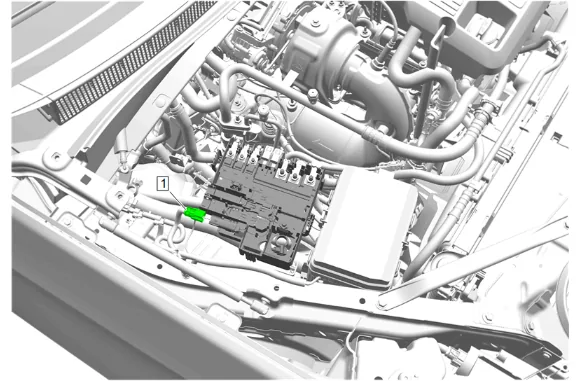

  1. Electrical Connector (1) » Disconnect
Battery Replacement (LM2) — figure 5
Battery Replacement (LM2) — figure 5

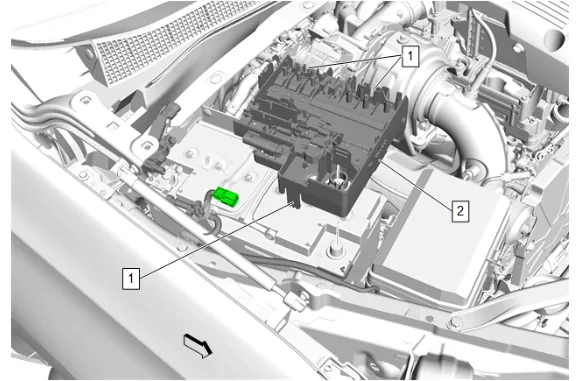

  1. Retaining Tab (1) » Disengage [3x]
  2. Battery Distribution Engine Compartment Fuse Block (2) » Reposition
Battery Replacement (LM2) — figure 6
Battery Replacement (LM2) — figure 6

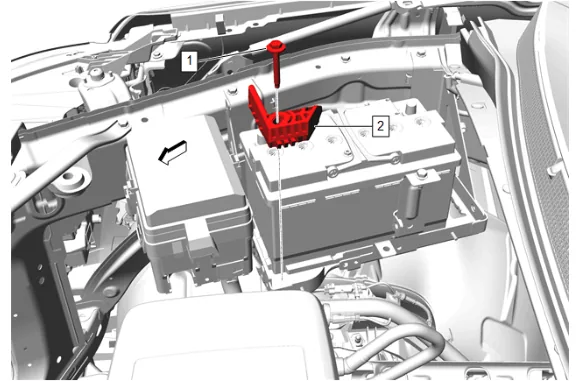

  1. Battery Hold Down Retainer Bolt (1) » Remove
  2. Battery Hold Down Retainer (2) » Remove
Battery Replacement (LM2) — figure 7
Battery Replacement (LM2) — figure 7

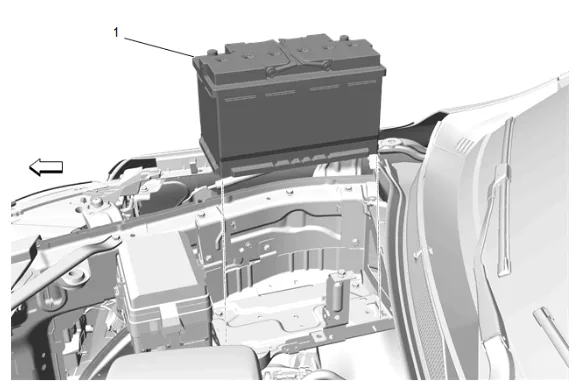

  1. Battery (1) » Remove Installation Procedure

  2. Battery (1) » Install

  3. Battery Hold Down Retainer (2) » Install

  1. Battery Hold Down Retainer Bolt (1) » Install and tighten — Fastener Specifications

  2. Battery Distribution Engine Compartment Fuse Block (2) » Install

  3. Retaining Tab (1) » Engage [3x]

  4. Battery Positive Post Clamp Nut (5) » Tighten — Fastener Specifications

  5. Electrical Connector (1) » Connect

  6. Front Compartment Fuse Block Cover (2) » Install

  7. Retaining Tab (1) » Engage [2x]

  8. Battery Hold Down Strap (2) » Install

  9. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 11.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 11.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 11.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 11.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  10. Battery Hold Down Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications

  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
