Outside Rearview Mirror Actuator Replacement

Removal Procedure

Outside Rearview Mirror Actuator Replacement — figure 1
Outside Rearview Mirror Actuator Replacement — figure 1
  1. Apply masking tape over the outside rearview mirror glass (1).
Outside Rearview Mirror Actuator Replacement — figure 2
Outside Rearview Mirror Actuator Replacement — figure 2
  1. Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Outside Rearview Mirror Actuator Replacement — figure 3
Outside Rearview Mirror Actuator Replacement — figure 3
  1. Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).
Outside Rearview Mirror Actuator Replacement — figure 4
Outside Rearview Mirror Actuator Replacement — figure 4
  1. Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).
  2. Disconnect all electrical connectors.
Outside Rearview Mirror Actuator Replacement — figure 5
Outside Rearview Mirror Actuator Replacement — figure 5

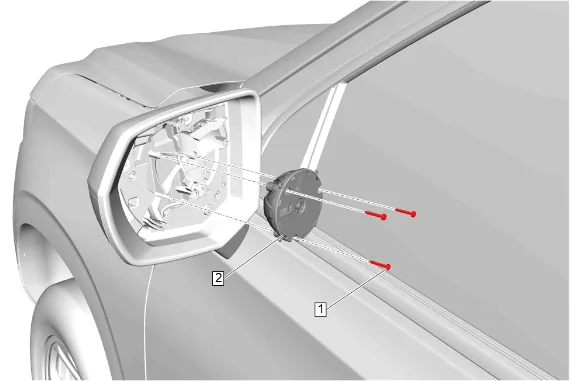

  1. Outside Rearview Mirror Actuator Bolt (1) » Remove [3x]

  2. Outside Rearview Mirror Actuator (2) » Remove

  3. Disconnect the electrical connector. Installation Procedure

  4. Connect the electrical connector.

  5. Outside Rearview Mirror Actuator (2) » Install

  1. Outside Rearview Mirror Actuator Bolt (1) » Install and tighten [3x] — Fastener Specifications

  2. Connect all electrical connectors.

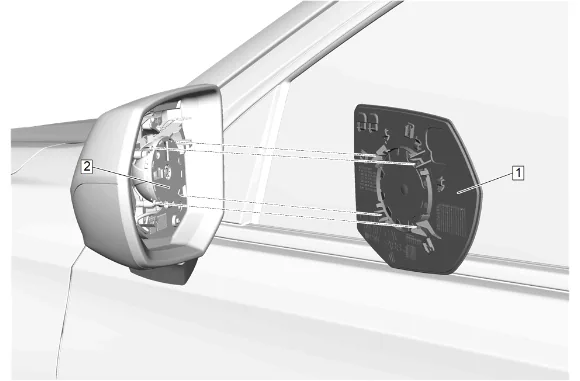

  3. Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).

  4. Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass is fully secured.

  5. Remove the masking tape from the outside rearview mirror glass (1).

  6. Inspect the outside rearview mirror for proper operation.
