Front Seat Adjuster Memory Module Bracket Replacement

Removal Procedure

Front Seat Adjuster Memory Module Bracket Replacement — figure 1

1. Front Seat Cushion Cover and Pad (1) » Remove — Front Seat Cushion Cover and Pad Removal and Installation

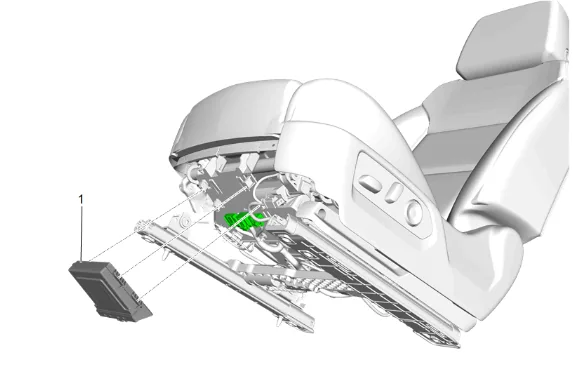

Front Seat Adjuster Memory Module Bracket Replacement — figure 2

2. Disconnect the electrical connectors.
3. Release the retaining tabs.
4. Driver or Passenger Seat Adjuster Memory Module (1) » Remove

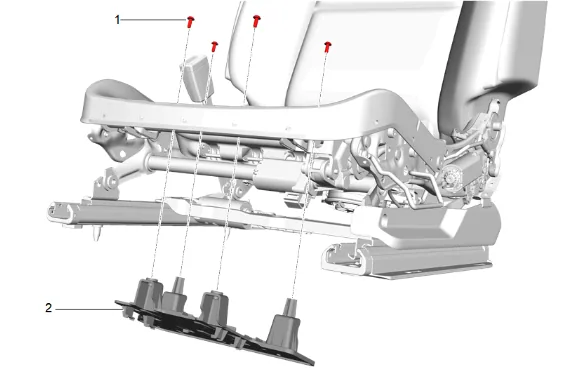

Front Seat Adjuster Memory Module Bracket Replacement — figure 3

5. Disconnect and reposition harness as necessary.

6. Front Seat Adjuster Memory Module Bolt (1) » Remove [4x]

7. Front Seat Adjuster Memory Module Bracket (2) » Remove Installation Procedure

8. Front Seat Adjuster Memory Module Bracket (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Adjuster Memory Module Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Connect and position the wiring harness.

4. Driver or Passenger Seat Adjuster Memory Module (1) » Install

5. Connect the electrical connectors.

6. Front Seat Cushion Cover and Pad (1) » Install — Front Seat Cushion Cover and Pad Removal and Installation
