Front Seat Belt Opening Bezel Replacement (Center Seat)

Removal Procedure

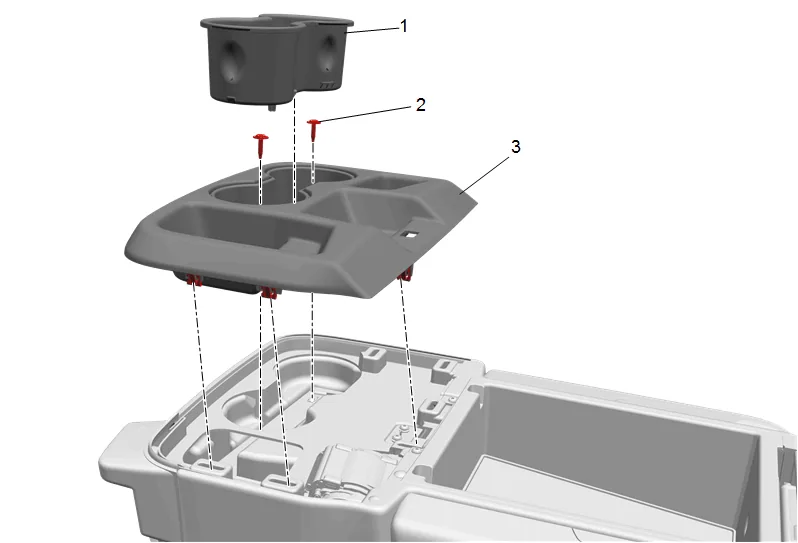

Front Seat Belt Opening Bezel Replacement (Center Seat) — figure 1
Front Seat Belt Opening Bezel Replacement (Center Seat) — figure 1
  1. Front Center Seat Cup Holder (1) » Remove
  2. Front Seat Armrest Cup Holder Bolt (2) » Remove [2x]
  3. Using a suitable trim tool, release the front seat armrest cup holder retainers.
  4. Front Seat Armrest Cup Holder (3) » Remove

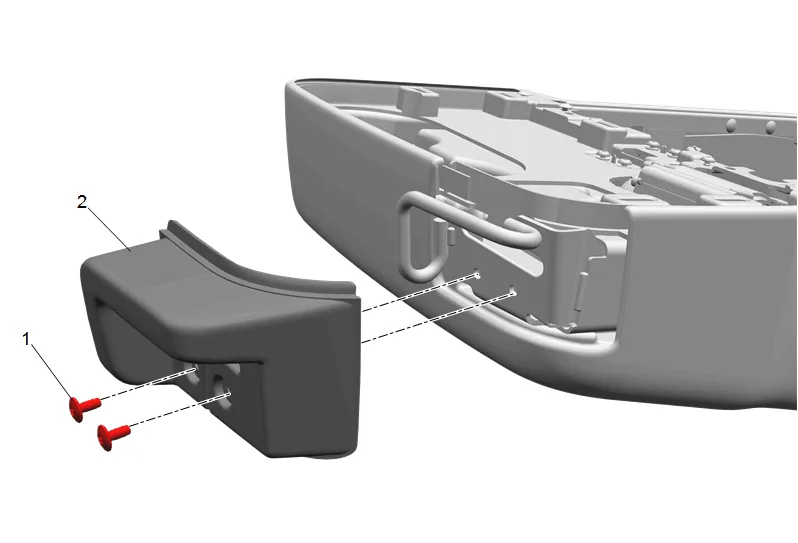

Front Seat Belt Opening Bezel Replacement (Center Seat) — figure 2
Front Seat Belt Opening Bezel Replacement (Center Seat) — figure 2

  1. Front Seat Belt Opening Bezel Bolt (1) » Remove [2x]

  2. Front Seat Belt Opening Bezel (2) » Remove Installation Procedure

  3. Front Seat Belt Opening Bezel (2) » Install

  4. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 2.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 2.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 2.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 2.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  1. Front Seat Belt Opening Bezel Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Front Seat Armrest Cup Holder (3) » Install

  3. Front Seat Armrest Cup Holder Bolt (2) » Install and tighten [2x] — Fastener Specifications

  4. Front Center Seat Cup Holder (1) » Install
