Forward Collision Alert Display Bezel Replacement

Removal Procedure

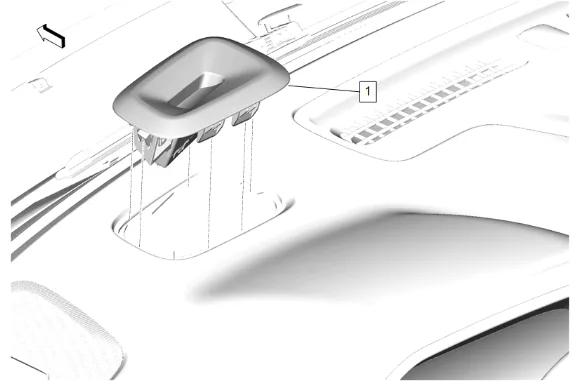

Forward Collision Alert Display Bezel Replacement — figure 1

1. Using a suitable plastic trim tool, release the retaining tabs.

2. Disconnect the electrical connector.

3. Forward Collision Alert Display Bezel (1) » Remove

4. Transfer components as necessary. Installation Procedure

5. Connect the electrical connector.

6. Forward Collision Alert Display Bezel (1) » Install
