Rear Seat Cushion Frame Dampener Replacement (3rd Row Seat)

Rear Seat Cushion Frame Dampener Replacement (3rd Row Seat) Removal Procedure

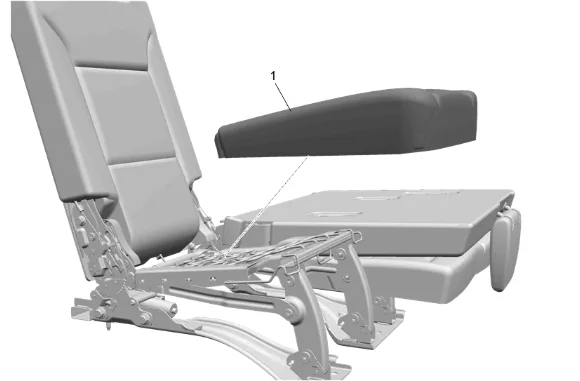

Rear Seat Cushion Frame Dampener Replacement (3rd Row Seat) — figure 1

1. 3rd Row Seat Cushion Cover and Pad (1) » Remove — 3rd Row Seat Cushion Cover and Pad Removal and Installation

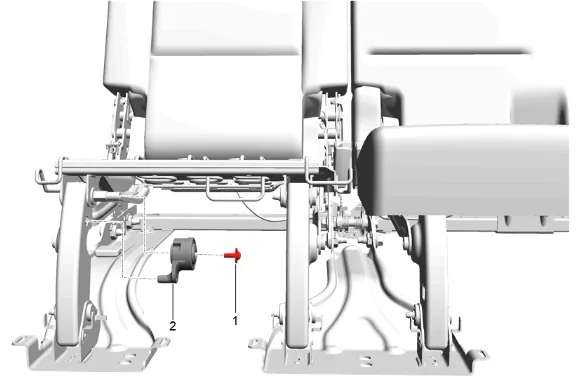

Rear Seat Cushion Frame Dampener Replacement (3rd Row Seat) — figure 2

2. Rear Seat Cushion Frame Dampener Bolt (1) » Remove

3. Rear Seat Cushion Frame Dampener (2) » Remove Installation Procedure

4. Rear Seat Cushion Frame Dampener (2) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Cushion Frame Dampener Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. 3rd Row Seat Cushion Cover and Pad (1) » Install — 3rd Row Seat Cushion Cover and Pad Removal and Installation
