Ride Control Switch Replacement

Removal Procedure

Ride Control Switch Replacement — figure 1

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Ride Control Switch Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Ride Control Switch Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

Ride Control Switch Replacement — figure 4

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Disconnect the electrical connectors.
8. Instrument Panel Trim Pad (2) » Remove

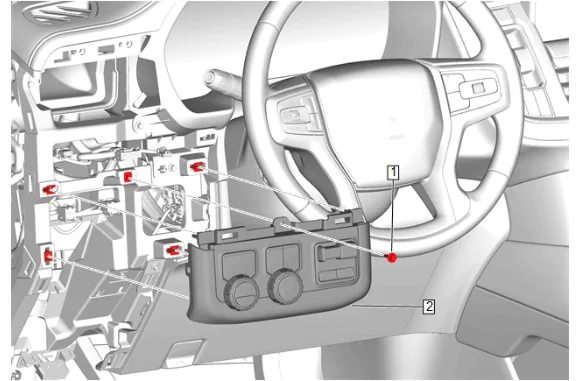

Ride Control Switch Replacement — figure 5

9. Instrument Panel Switch Trim Plate Bolt (1) » Remove
10. Disconnect the electrical connectors.
11. Instrument Panel Switch Trim Plate (2) » Remove

Ride Control Switch Replacement — figure 6

12. Release the retaining tabs.

13. Ride Control Switch (1) » Remove Installation Procedure

14. Ride Control Switch (1) » Install

15. Ensure the retaining tabs have fully secured.

16. Connect the electrical connectors.

17. Instrument Panel Switch Trim Plate (2) » Install

Caution

Refer to Fastener Caution.

5. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

6. Connect the electrical connectors.

7. Instrument Panel Trim Pad (2) » Install

8. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

9. Instrument Panel Trim Plate Applique (1) » Install

10. Instrument Panel Fuse Block Access Hole Cover (1) » Install

11. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
