Air Conditioning Refrigerant Heat Exchanger Replacement (LM2 without C69)

Air Conditioning Refrigerant Heat Exchanger Replacement (LM2 without C69) Single Use Fasteners and Components Air Conditioning Compressor and Condenser Hose Seal - Large [2x] Air Conditioning Compressor and Condenser Hose Seal - Small [2x] Removal Procedure

1. Recover the refrigerant. Refrigerant Recovery and Recharging
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Front Wheelhouse Liner - Right Side » Remove — Front Wheelhouse Liner Replacement

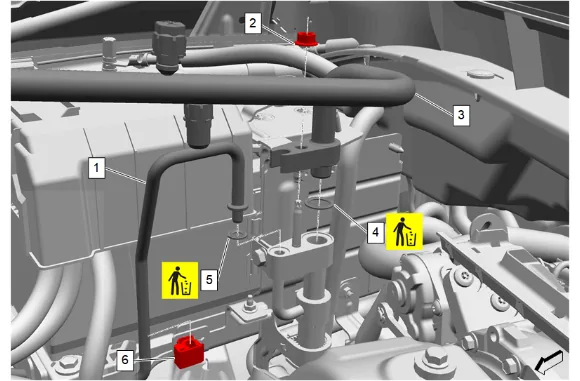

Air Conditioning Refrigerant Heat Exchanger Replacement (LM2 without C69) — figure 1

4. Air Conditioning Compressor and Condenser Hose Nut (2) @ Air Conditioning Refrigerant Heat Exchanger » Remove
5. Air Conditioning Compressor and Condenser Hose (3) @ Air Conditioning Refrigerant Heat Exchanger » Remove
6. Air Conditioning Compressor and Condenser Hose Seal - Large (4) » Remove and DISCARD
7. Air Conditioning Condenser and Evaporator Hose Clip (6) » Remove
8. Air Conditioning Condenser and Evaporator Hose (1) » Remove
9. Air Conditioning Compressor and Condenser Hose Seal - Small (5) » Remove and DISCARD

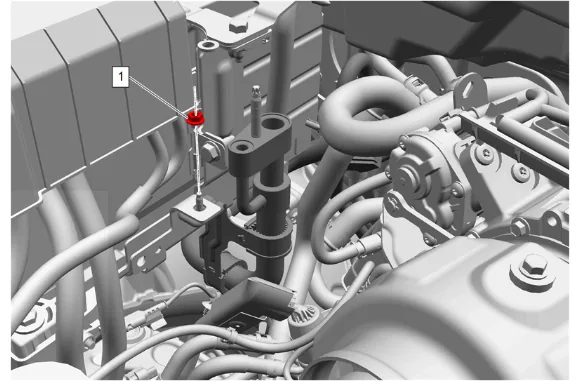

Air Conditioning Refrigerant Heat Exchanger Replacement (LM2 without C69) — figure 2

10. Air Conditioning Refrigerant Heat Exchanger Nut (1) @ Battery Tray » Remove

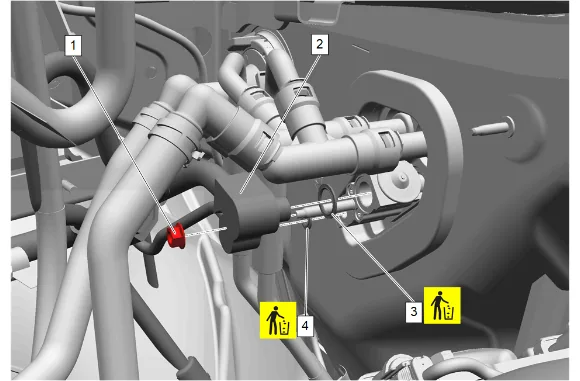

Air Conditioning Refrigerant Heat Exchanger Replacement (LM2 without C69) — figure 3

11. Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) » Remove
12. Air Conditioning Refrigerant Heat Exchanger (2) » Remove
13. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Remove and DISCARD
14. Air Conditioning Compressor and Condenser Hose Seal - Small (4) » Remove and DISCARD Installation Procedure

Caution

New Air Conditioning sealing washers should never be exposed to any type of oil or lubricant, the rubber material may absorb the oil causing failures during installation or the life of the vehicle.

1. Air Conditioning Compressor and Condenser Hose Seal - Small (4) » Install NEW
2. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Install NEW
3. Air Conditioning Refrigerant Heat Exchanger (2) » Install

Caution

Refer to Fastener Caution.

4. Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) » Install and tighten — Fastener Specifications

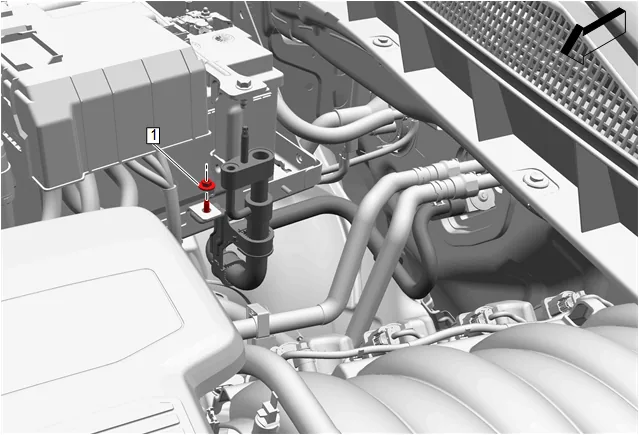

Air Conditioning Refrigerant Heat Exchanger Replacement (LM2 without C69) — figure 4

5. Air Conditioning Refrigerant Heat Exchanger Nut (1) @ Battery Tray » Install and tighten — Fastener Specifications

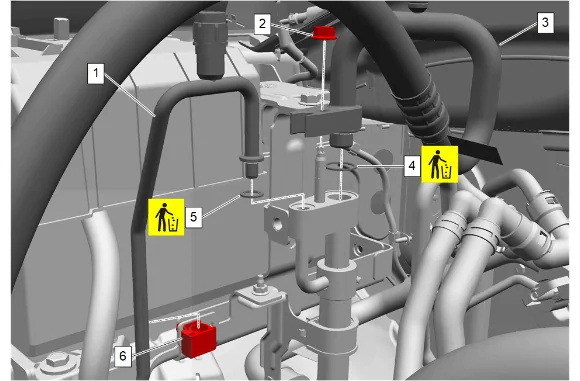

Air Conditioning Refrigerant Heat Exchanger Replacement (LM2 without C69) — figure 5

6. Air Conditioning Compressor and Condenser Hose Seal - Small (5) » Install NEW
7. Air Conditioning Condenser and Evaporator Hose (1) » Install
8. Air Conditioning Condenser and Evaporator Hose Clip (6) » Install
9. Air Conditioning Compressor and Condenser Hose Seal - Large (4) » Install NEW
10. Air Conditioning Compressor and Condenser Hose (3) @ Air Conditioning Refrigerant Heat Exchanger » Install
11. Air Conditioning Compressor and Condenser Hose Nut (2) @ Air Conditioning Refrigerant Heat Exchanger » Install and tighten — Fastener Specifications
12. Front Wheelhouse Liner - Right Side » Install — Front Wheelhouse Liner Replacement
13. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
14. Recharge the refrigerant. Refrigerant Recovery and Recharging
