Rear Seat Center Belt Opening Bezel Replacement (3rd Row)

Rear Seat Center Belt Opening Bezel Replacement (3rd Row) Removal Procedure

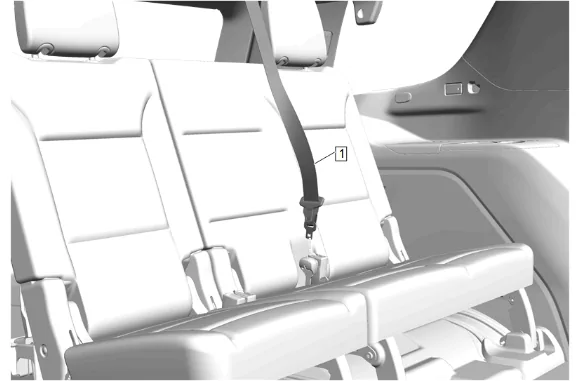

Rear Seat Center Belt Opening Bezel Replacement (3rd Row) — figure 1

1. Disconnect the rear seat belt mini-latch (1).

Rear Seat Center Belt Opening Bezel Replacement (3rd Row) — figure 2

2. Using a suitable plastic trim tool, release the retaining tabs.

3. Rear Seat Center Belt Opening Bezel - 3rd Row Seat (1) » Remove

4. Feed the 3rd row seat center belt through the rear seat center belt opening bezel (1). Installation Procedure

5. Feed the 3rd row seat center belt through the rear seat center belt opening bezel (1).

6. Rear Seat Center Belt Opening Bezel - 3rd Row Seat (1) » Install

7. Connect the rear seat belt mini-latch (1).
