Rear Seat Track Finish Cover Replacement (40 Percent, Bucket)

Rear Seat Track Finish Cover Replacement (40 Percent, Bucket) Removal Procedure

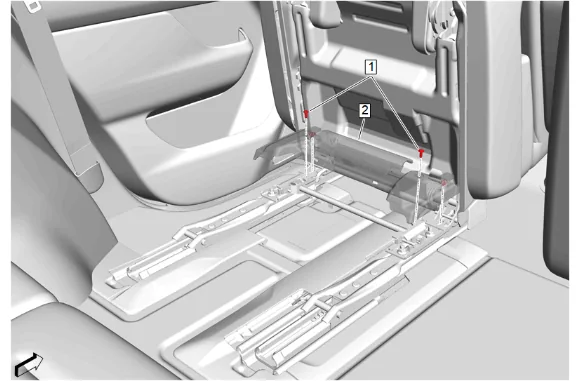

Rear Seat Track Finish Cover Replacement (40 Percent, Bucket) — figure 1

1. Place the rear seat in the fold and tumble position.

2. Disconnect the electrical connector.

3. Disconnect the wiring harness retainers and reposition the harness as necessary.

4. Front Seat Bolt (1) » Remove [2x]

5. Using a flat-bladed plastic trim tool, release the retaining clips.

6. Rear Seat Track Finish Cover (2) » Remove Installation Procedure

7. Rear Seat Track Finish Cover (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Bolt (2) » Install and tighten [2x] — Fastener Specifications
3. Position the wiring harness and connect the harness retainers.
4. Connect the electrical connector.
5. Return the rear seat to the original position.
