Tahoe / Yukon Service Manual

Instrument Panel Trim Pad Replacement - Left Side

Removal Procedure

Instrument Panel Trim Pad Replacement - Left Side — figure 1
Instrument Panel Trim Pad Replacement - Left Side — figure 1
  1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove
Instrument Panel Trim Pad Replacement - Left Side — figure 2
Instrument Panel Trim Pad Replacement - Left Side — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Fuse Block Access Hole Cover (1) » Remove
Instrument Panel Trim Pad Replacement - Left Side — figure 3
Instrument Panel Trim Pad Replacement - Left Side — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Instrument Panel Trim Plate Applique (1) » Remove
Instrument Panel Trim Pad Replacement - Left Side — figure 4
Instrument Panel Trim Pad Replacement - Left Side — figure 4
  1. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
  2. Instrument Panel Trim Pad (2) » Remove
  3. Disconnect the electrical connectors.

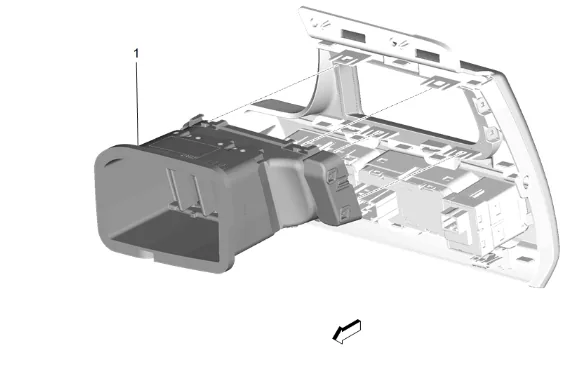

Instrument Panel Trim Pad Replacement - Left Side — figure 5
Instrument Panel Trim Pad Replacement - Left Side — figure 5
  1. Release the retaining tabs.
  2. Instrument Panel Outer Air Outlet (1) » Remove

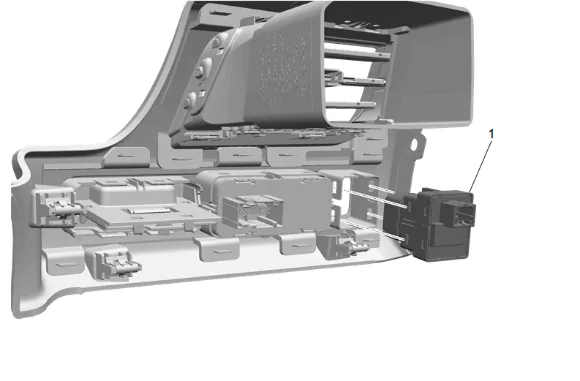

Instrument Panel Trim Pad Replacement - Left Side — figure 6
Instrument Panel Trim Pad Replacement - Left Side — figure 6
  1. Release the retaining tabs.
  2. Parking Brake Control Switch (1) » Remove

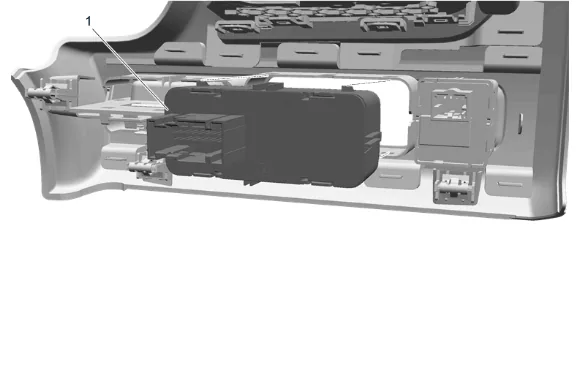

Instrument Panel Trim Pad Replacement - Left Side — figure 7
Instrument Panel Trim Pad Replacement - Left Side — figure 7
  1. Release the retaining tabs.
  2. Vehicle Stability Control System Switch (1) @ Instrument Panel Trim Pad » Remove

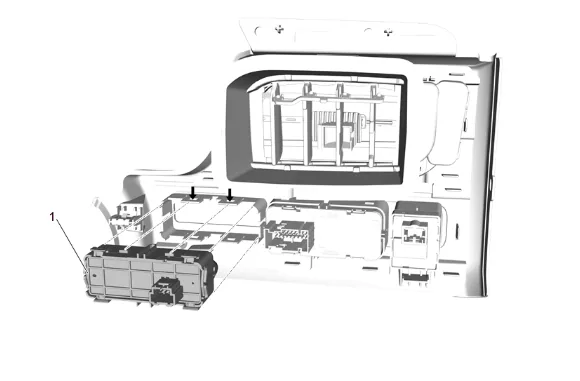

Instrument Panel Trim Pad Replacement - Left Side — figure 8
Instrument Panel Trim Pad Replacement - Left Side — figure 8

  1. Release the retaining tabs.

  2. { If equipped } Head-Up Display Switch (1) » Remove Installation Procedure

  3. { If equipped } Head-Up Display Switch (1) » Install

  4. Secure the retaining tabs.

  5. Vehicle Stability Control System Switch (1) @ Instrument Panel Trim Pad » Install

  6. Secure the retaining tabs.

  7. Parking Brake Control Switch (1) » Install

  8. Secure the retaining tabs.

  9. Instrument Panel Outer Air Outlet (1) » Install

  10. Secure the retaining tabs.

  11. Connect the electrical connectors.

  12. Instrument Panel Trim Pad (2) » Install

  1. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Instrument Panel Trim Plate Applique (1) » Install

  3. Instrument Panel Fuse Block Access Hole Cover (1) » Install

  4. Instrument Panel Lower Trim Panel Outer Filler (1) » Install
