Fastener Specifications (1)

Fastener Specifications Table 1: Front Bumper Fascia Headlamp Opening Bracket Table 2: Front Bumper Fascia Outer Air Duct and Reinforcement Table 3: Front Bumper Fascia Seal with LM2 and WTX Table 4: Front Bumper Fascia Seal with RC1 Table 5: Front Bumper Fascia Upper Stiffener Table 6: Front Bumper Fascia with WTX Table 7: Front Bumper Fascia without RC1 Table 8: Front Bumper Impact Bar Table 9: Front Bumper Lower Shutter Table 10: Front Bumper Shutter Table 11: Front Grille Support Reinforcement Table 12: Rear Bumper Fascia Table 13: Rear Bumper Fascia Guide Table 14: Rear Bumper Impact Bar

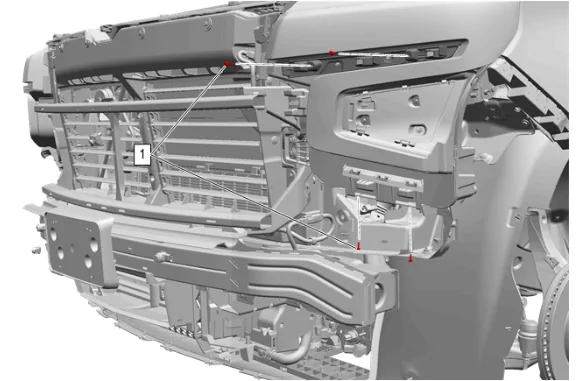

Fastener Specifications (1) — figure 1

Front Bumper Fascia Headlamp Opening Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Fascia Headlamp Opening Bracket Bolt [4x]	—	—	2.3 Y (20 lb in)	Front Bumper Fascia Headlamp Opening Bracket Replacement - Lower
					Front Bumper Fascia Headlamp Opening Bracket Replacement - Upper

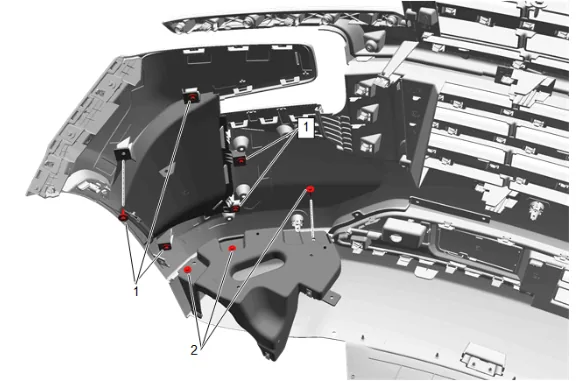

Fastener Specifications (1) — figure 2

Front Bumper Fascia Outer Air Duct and Reinforcement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Fascia Bolt [5x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Outer Air Duct Replacement
2	Front Bumper Fascia Reinforcement Bolt	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Reinforcement Replacement

Fastener Specifications (1) — figure 3

Front Bumper Fascia Seal with LM2 and WTX

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Fascia Bolt [3x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Seal Replacement

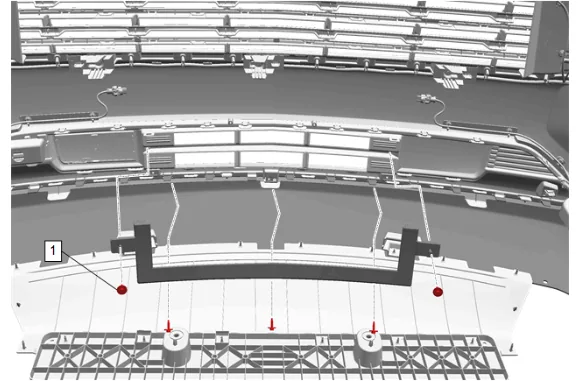

Fastener Specifications (1) — figure 4

Front Bumper Fascia Seal with RC1

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Fascia Bolt [5x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Seal Replacement

Fastener Specifications (1) — figure 5

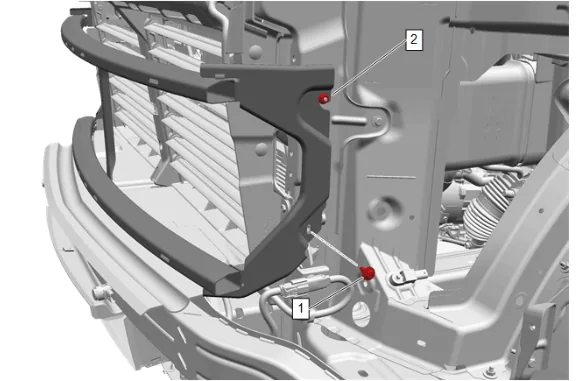

Front Bumper Fascia Upper Stiffener

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Fascia Upper Stiffener Bolt [2x]	—	—	9 Y(80 lb in)	Front Bumper Fascia Upper Stiffener Replacement
2	Front Bumper Fascia Upper Stiffener Nut [2x]	—	—	9 Y(80 lb in)	Front Bumper Fascia Upper Stiffener Replacement

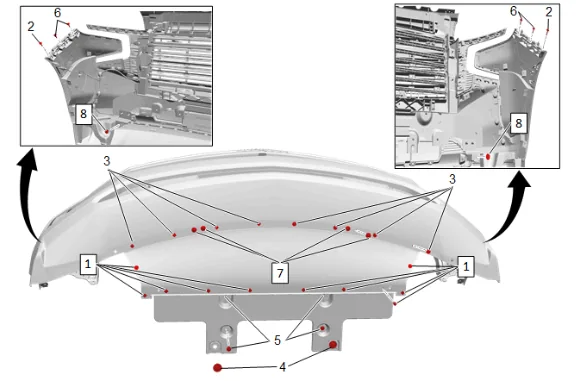

Fastener Specifications (1) — figure 6

Front Bumper Fascia with WTX

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Fascia Air Deflector Bolt [10x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Removal and Installation
2	Front Bumper Fascia Bolt [2x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Removal and Installation
3	Front Bumper Fascia Extension Bolt @ Fascia [8x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Removal and Installation
4	Front Bumper Fascia Extension Bolt @ Skid Shield [2x]	—	—	22 Y(16 lb ft)	Front Bumper Fascia Removal and Installation
5	Front Bumper Fascia Extension Bolt [4x]	—	—	9 Y(80 lb in)	Front Bumper Fascia Removal and Installation

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
6	Front Bumper Fascia Guide Bolt [4x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Removal and Installation
					Front Bumper Fascia Guide Replacement
7	Front Bumper Fascia Lower Bracket Bolt [4x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Removal and Installation
8	Front Bumper Fascia Support Brace Bolt [2x]	—	—	9 Y(80 lb in)	Front Bumper Fascia Removal and Installation

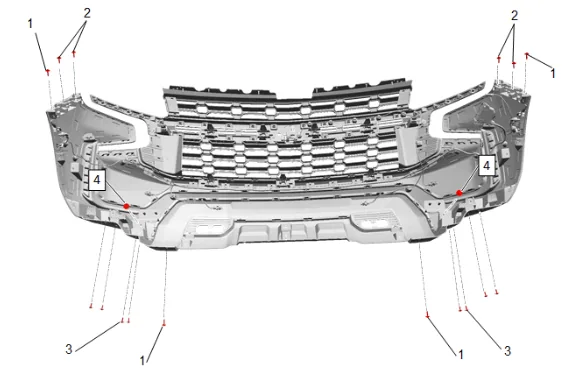

Fastener Specifications (1) — figure 7

Front Bumper Fascia without RC1

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Front Bumper Fascia Bolt [4x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Removal and Installation

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
2	Front Bumper Fascia Guide Bolt [4x]	—	—	2.5 Y (22 lb in)	Front Bumper Fascia Removal and Installation
					Front Bumper Fascia Guide Replacement
3	Front Bumper Fascia Reinforcement Bolt [8x]	—	—	9 Y(80 lb in)	Front Bumper Fascia Removal and Installation
4	Front Bumper Fascia Support Brace Bolt [2x]	—	—	9 Y(80 lb in)	Front Bumper Fascia Removal and Installation

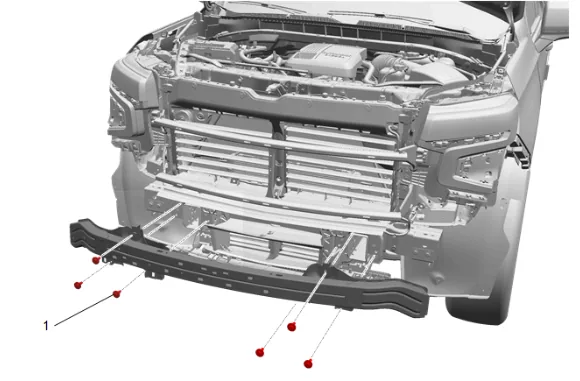

Fastener Specifications (1) — figure 8

Front Bumper Impact Bar

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Impact Bar Bolt [6x]	—	—	58 Y (43 lb ft)	Front Bumper Impact Bar Replacement

Fastener Specifications (1) — figure 9

Front Bumper Lower Shutter

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Shutter Bolt [4x]	—	—	6 Y(53 lb in)	Front Bumper Lower Shutter Replacement

Fastener Specifications (1) — figure 10

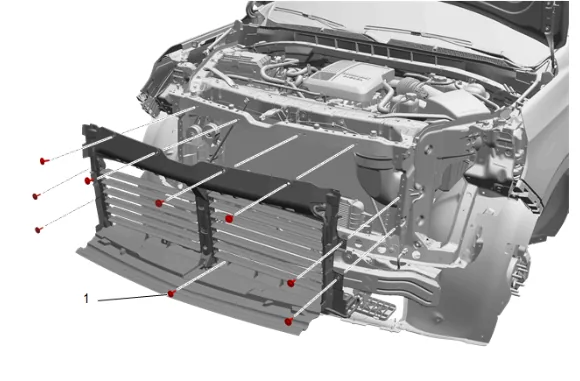

Front Bumper Shutter

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Bumper Shutter Bolt [9x]	—	—	6 Y(53 lb in)	Front Bumper Shutter Replacement

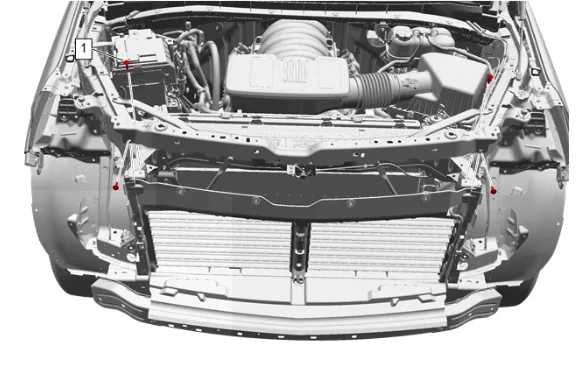

Fastener Specifications (1) — figure 11

Front Grille Support Reinforcement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Grille Support Bracket Bolt [4x]	—	—	9 Y(80 lb in)	Front Grille Support Reinforcement Replacement

Fastener Specifications (1) — figure 12

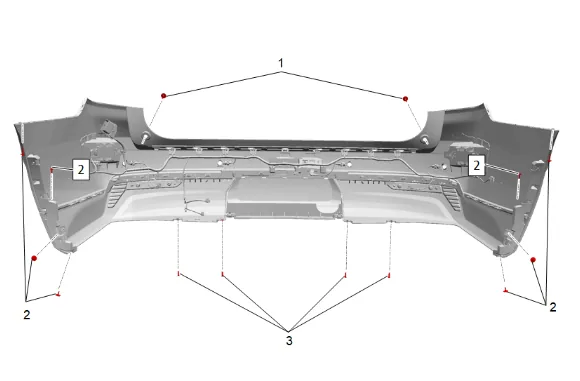

Rear Bumper Fascia

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Liftgate Adjust Bumper Bolt [2x]	—	—	2.5 Y (22 lb in)	Rear Bumper Fascia Removal and Installation
2	Rear Bumper Fascia Bolt [8x]	—	—	2.5 Y (22 lb in)	Rear Bumper Fascia Removal and Installation
3	Rear Bumper Fascia Lower Bracket Bolt [4x]	—	—	7 Y(62 lb in)	Rear Bumper Fascia Removal and Installation

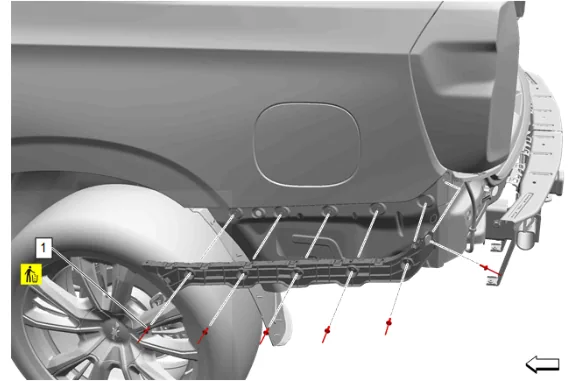

Fastener Specifications (1) — figure 13

Rear Bumper Fascia Guide

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Bumper Fascia Guide Rivet [6x]	Yes	—	—	Rear Bumper Fascia Guide Replacement

Fastener Specifications (1) — figure 14

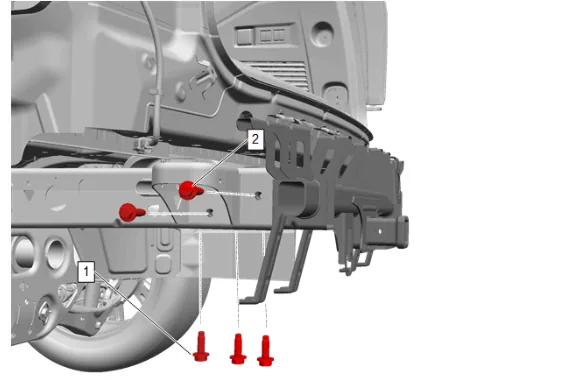

Rear Bumper Impact Bar

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Bumper Impact Bar Bolt @ Lower Frame [3x]	—	—	160 Y (118 lb ft)	Rear Bumper Impact Bar Replacement
2	Rear Bumper Impact Bar Bolt @ Outer Frame [2x]	—	—	100 Y (74 lb ft)	Rear Bumper Impact Bar Replacement
