Front Seat Cushion Pad Center Support Replacement

Removal Procedure

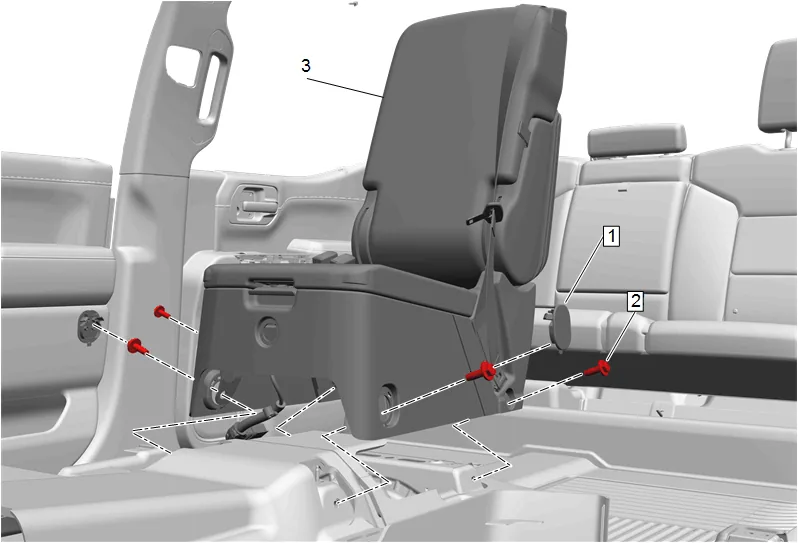

Front Seat Cushion Pad Center Support Replacement — figure 1

1. Front Center Seat (3) » Remove — Front Center Seat Removal and Installation

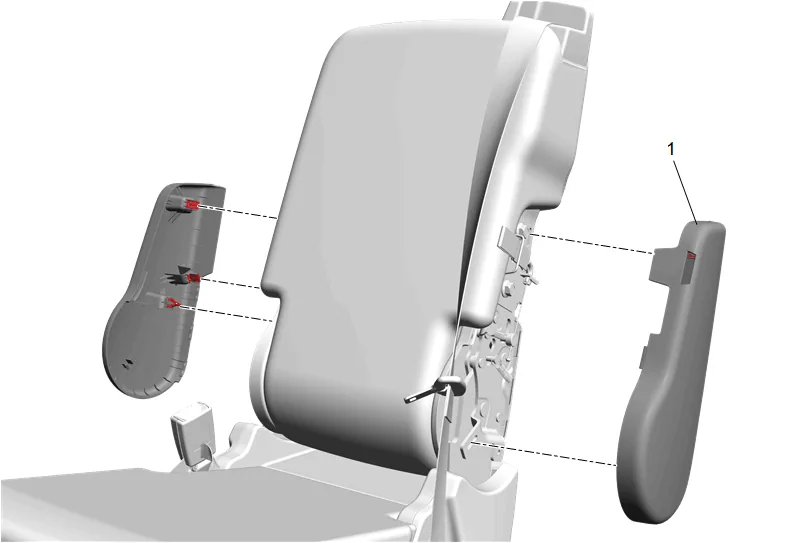

Front Seat Cushion Pad Center Support Replacement — figure 2

2. Using a suitable plastic trim tool, release the retaining clips.
3. Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Remove [2x]

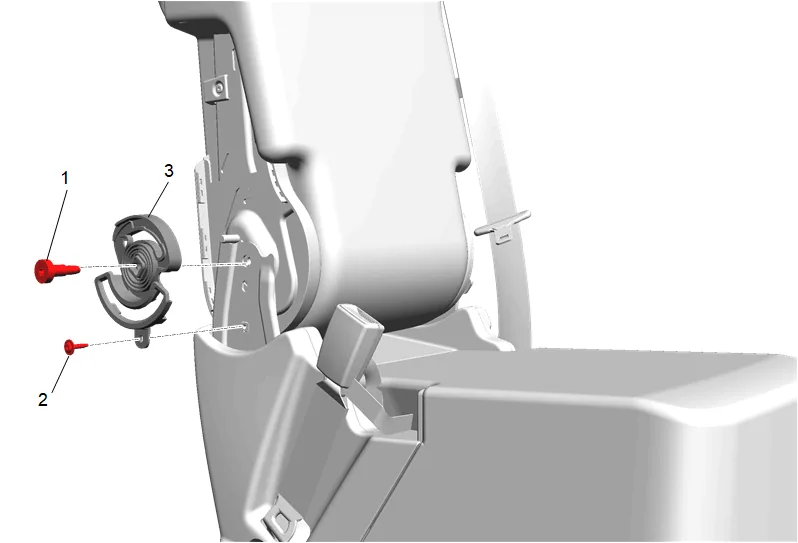

Front Seat Cushion Pad Center Support Replacement — figure 3

4. Front Seat Center Armrest Pivot Bolt (1) » Remove
5. Front Seat Armrest Adjust Retainer Bolt (2) » Remove
6. Front Seat Armrest Adjust Retainer (3) » Remove

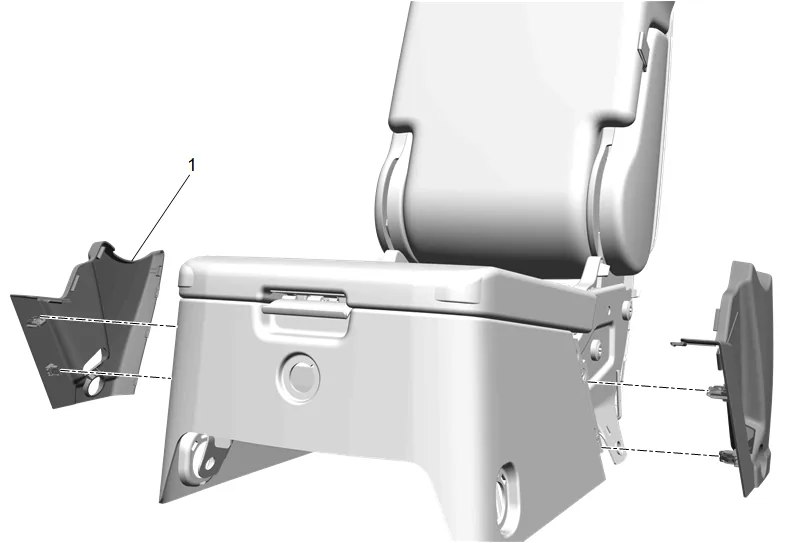

Front Seat Cushion Pad Center Support Replacement — figure 4

7. Using a suitable plastic trim tool, release the front seat center armrest hinge finish cover - lower retaining clips.

Note

Seat belt retaining bushings are for manufacturing purposes only.

8. Remove and DISCARD seat belt retaining bushings.
9. Front Seat Center Belt Buckle » Remove
10. Front Seat Center Belt Anchor Plate » Remove
11. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Remove [2x]

Front Seat Cushion Pad Center Support Replacement — figure 5

12. Disconnect the latch release cable.
13. Front Seat Center Armrest Bolt (1) » Remove [2x]
14. Front Center Seat Armrest (2) » Remove

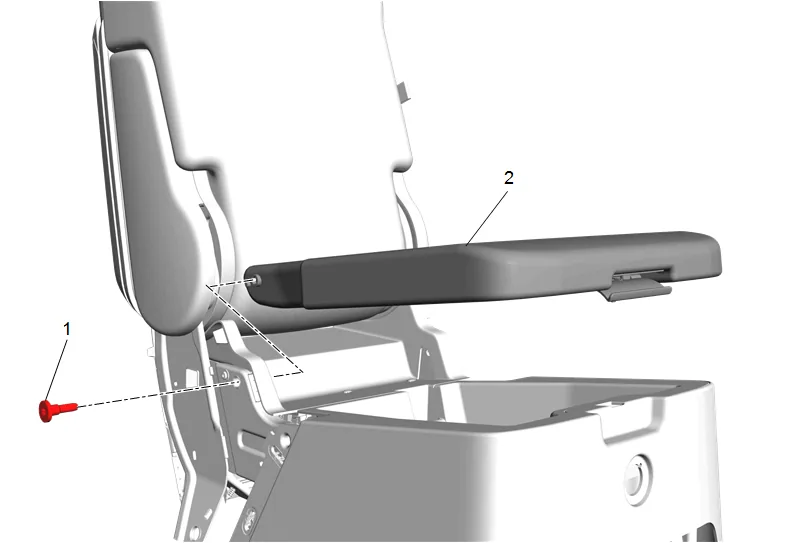

Front Seat Cushion Pad Center Support Replacement — figure 6

15. Front Seat Cushion Center Pad Pivot Bolt (1) » Remove
16. Front Seat Cushion Center Pad (2) » Remove

Front Seat Cushion Pad Center Support Replacement — figure 7

17. Using a suitable plastic trim tool, release the retaining clips.
18. Front Seat Center Armrest Hinge Finish Inner Cover (1) » Remove

Front Seat Cushion Pad Center Support Replacement — figure 8

19. Front Seat Center Storage Compartment Bolt (1) » Remove

20. Front Seat Cushion Pad Center Support (2) » Remove Installation Procedure

21. Front Seat Cushion Pad Center Support (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Center Storage Compartment Bolt (1) » Install and tighten — Fastener Specifications

3. Front Seat Center Armrest Hinge Finish Inner Cover (1) » Install

4. Front Seat Cushion Center Pad (2) » Install

5. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 5.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 5.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 5.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 5.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

6. Front Seat Cushion Center Pad Pivot Bolt (1) » Install and tighten — Fastener Specifications

7. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Install [2x]

8. Front Seat Center Belt Anchor Plate » Install

9. Front Seat Center Belt Buckle » Install

10. Front Center Seat Armrest (2) » Install

11. Front Seat Center Armrest Bolt (1) » Install and tighten [2x] — Fastener Specifications

12. Connect the latch release cable.

13. Front Seat Armrest Adjust Retainer (3) » Install

14. Front Seat Armrest Adjust Retainer Bolt (2) » Install and tighten — Fastener Specifications

15. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 15.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 15.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 15.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 15.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

16. Front Seat Center Armrest Pivot Bolt (1) » Install and tighten — Fastener Specifications

17. Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Install [2x]

18. Front Center Seat (3) » Install — Front Center Seat Removal and Installation
