Surround Vision Camera Description and Operation

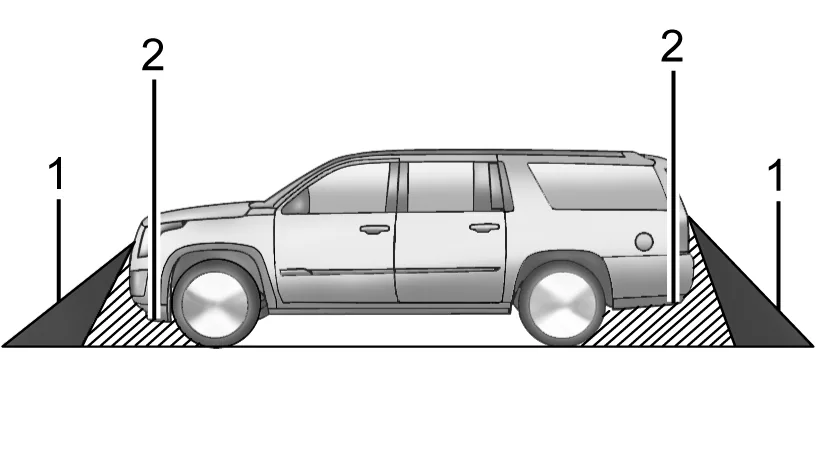

Surround Vision Camera Description and Operation — figure 1
Surround Vision Camera Description and Operation — figure 1
  1. View Displayed by the Surround Vision Camera
  2. Area Not Shown

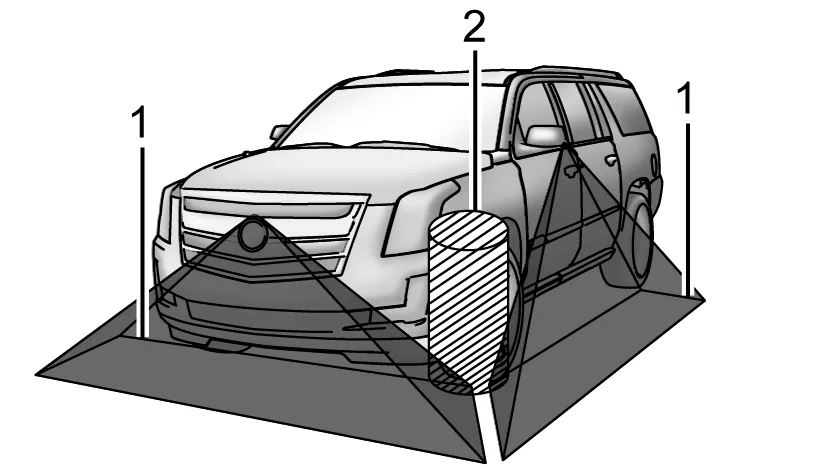

Surround Vision Camera Description and Operation — figure 2
Surround Vision Camera Description and Operation — figure 2
  1. View Displayed by the Surround Vision Camera
  2. Area Not Shown The surround vision camera system consists of the following components: B87 Rearview Camera B174G Frontview Camera – Grille K157 Video Processing Control Module A11 Radio OR K74 Human Machine Interface Module B225L Sideview Camera – Left B225R Sideview Camera – Right X20 Memory Card Receptacle (with XVR) When the vehicle is traveling at speeds slower than 6 mph (10kph) the video processing control module will power up the cameras and send a video signal to the radio or human machine interface module. The following conditions may cause a degraded surround vision camera image: Ice, snow, or mud has built up on the rear vision camera Dark conditions Extreme light conditions, such as glare from the sun or the headlights of another vehicle Damage to the rear of the vehicle Extreme high temperatures or extreme temperature changes Surround Vision displays an overhead view of the area surrounding the vehicle, along with the front or rear camera views in the center stack. The front camera is in the grille or near the front emblem, the side cameras are on the bottom of the outside rearview mirrors, and the rear vision camera is above the license plate.
