Ambient Air Temperature Sensor Replacement

Removal Procedure

Ambient Air Temperature Sensor Replacement — figure 1

1. Hood Latch Actuator Bolt (1) » Remove [2x]
2. Hood Secondary Latch Release Handle (2) » Remove

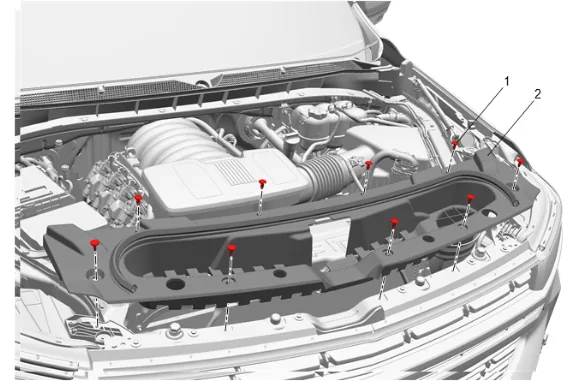

Ambient Air Temperature Sensor Replacement — figure 2

3. Air Inlet Grille Panel Retainer (1) » Remove [9x]
4. Intake Air Splash Shield (2) » Remove

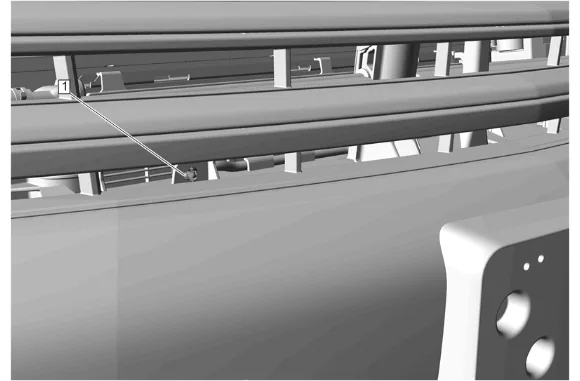

Ambient Air Temperature Sensor Replacement — figure 3

5. Use the appropriate tool to squeeze the 3 ambient air temperature sensor detents (1) to release the sensor from the front bumper shutter.

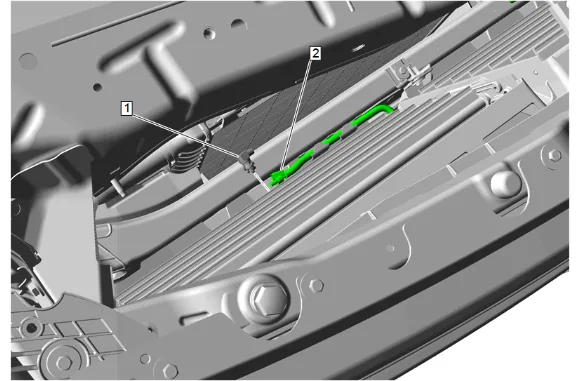

Ambient Air Temperature Sensor Replacement — figure 4

6. Ambient Air Temperature Sensor (1) » Remove

7. Disconnect the electrical connector. (2) Installation Procedure

8. Connect the electrical connector. (2)

9. Ambient Air Temperature Sensor (1) » Install

10. Intake Air Splash Shield (2) » Install

11. Air Inlet Grille Panel Retainer (1) » Install [9x]

12. Hood Secondary Latch Release Handle (2) » Install

13. Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications
