Rear Bumper Lower Fascia Replacement

Removal Procedure

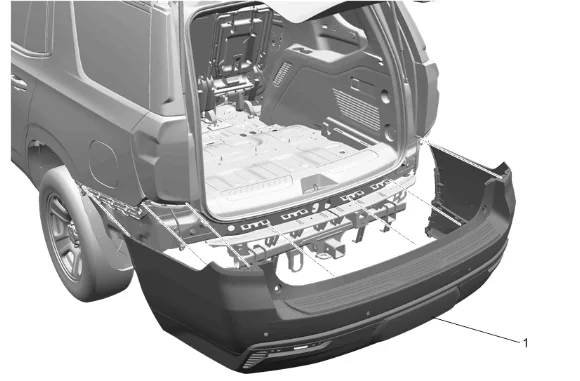

Rear Bumper Lower Fascia Replacement — figure 1
Rear Bumper Lower Fascia Replacement — figure 1
  1. Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation

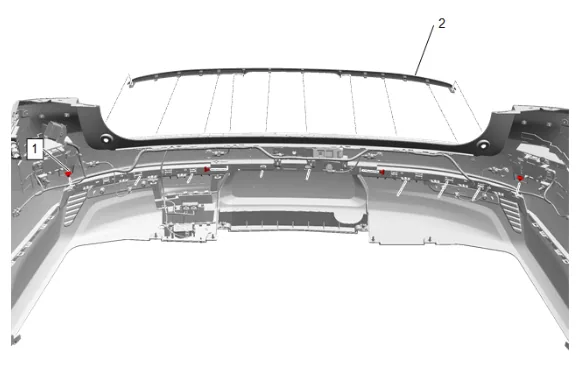

Rear Bumper Lower Fascia Replacement — figure 2
Rear Bumper Lower Fascia Replacement — figure 2
  1. Rear Bumper Fascia Molding Retainer (1) » Remove [4x]
  2. Using the appropriate tool, release the rear bumper fascia lower molding (2).
Rear Bumper Lower Fascia Replacement — figure 3
Rear Bumper Lower Fascia Replacement — figure 3
  1. Turn the 2 rear bumper fascia trailer hitch cover retainers (1) ¼ turn counter clockwise and remove.
  2. Rear Bumper Fascia Trailer Hitch Cover (2) » Remove

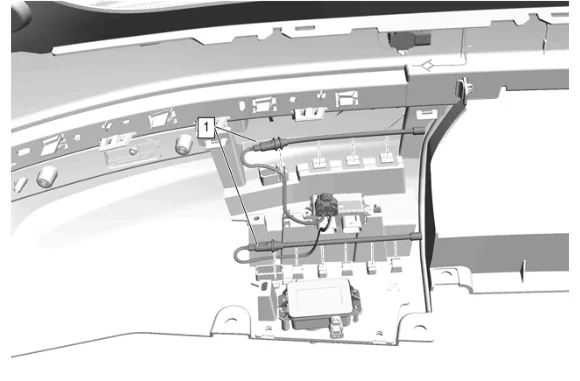

Rear Bumper Lower Fascia Replacement — figure 4
Rear Bumper Lower Fascia Replacement — figure 4
  1. Disengage the wire at the connector, disengage wire at opposite end, then pull back on each tab, and apply slight force on rear closure hands free sensor (1) and push the sensor out of the tabs.
  2. Disconnect all electrical connectors.

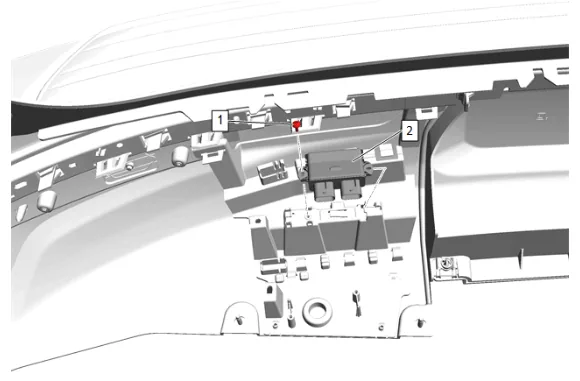

Rear Bumper Lower Fascia Replacement — figure 5
Rear Bumper Lower Fascia Replacement — figure 5
  1. Rear Closure Hands Free Module Bolt (1) » Remove
  2. Rear Closure Hands Free Module (2) » Remove

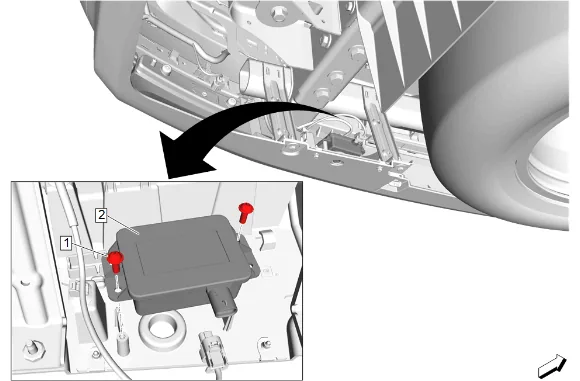

Rear Bumper Lower Fascia Replacement — figure 6
Rear Bumper Lower Fascia Replacement — figure 6
  1. Rear Closure Hands Free Module Bolt (1) » Remove [2x]
  2. Rear Closure Hands Free Lamp (2) » Remove

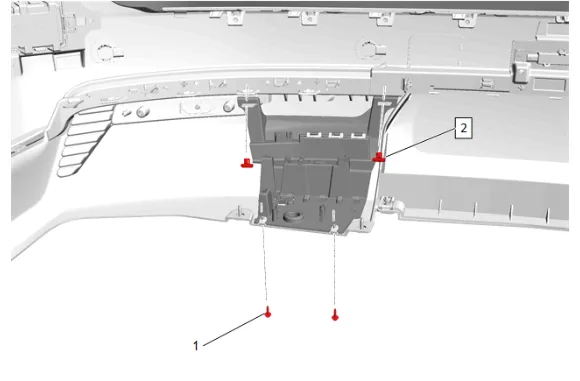

Rear Bumper Lower Fascia Replacement — figure 7
Rear Bumper Lower Fascia Replacement — figure 7
  1. Rear Closure Hands Free Module Bolt (1) » Remove [2x]
  2. Rear Closure Hands Free Module Retainer (2) » Remove [2x]
  3. Release the 2 wire harness retainers from the bracket.

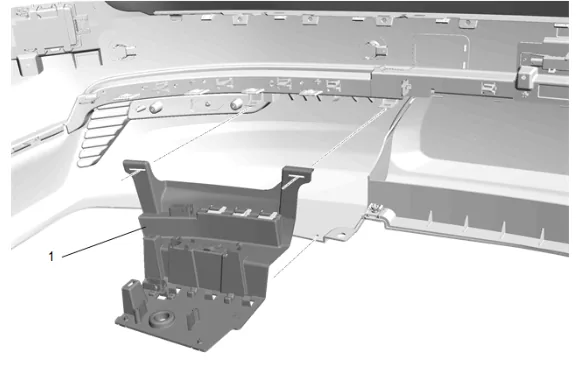

Rear Bumper Lower Fascia Replacement — figure 8
Rear Bumper Lower Fascia Replacement — figure 8
  1. Rear Closure Hands Free Module Bracket (1) » Remove

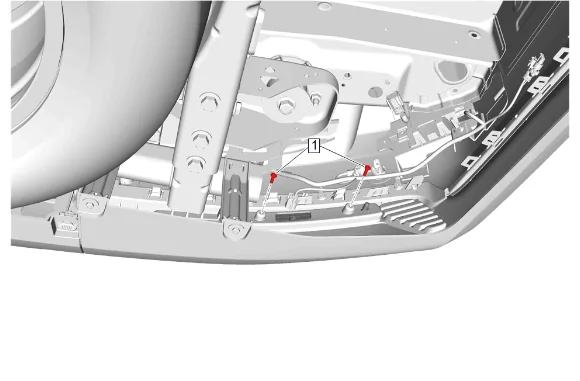

Rear Bumper Lower Fascia Replacement — figure 9
Rear Bumper Lower Fascia Replacement — figure 9
  1. { If equipped } Disconnect the electrical connector.
  2. Rear Fascia Lower Signal Lamp Bolt (1) » Remove [4x]
Rear Bumper Lower Fascia Replacement — figure 10
Rear Bumper Lower Fascia Replacement — figure 10
  1. Rear Fascia Lower Signal Lamp (1) » Remove [2x]
Rear Bumper Lower Fascia Replacement — figure 11
Rear Bumper Lower Fascia Replacement — figure 11

  1. Rear Bumper Fascia Bolt (1) » Remove [4x]

  2. Rear Bumper Fascia Retainer (2) » Remove [4x]

  3. Release the retainer tabs on the rear bumper lower fascia (3) and remove from the upper fascia. Installation Procedure

  4. Install the rear bumper lower fascia (3) to the rear bumper upper fascia.

  5. Rear Bumper Fascia Retainer (2) » Install [4x]

  1. Rear Bumper Fascia Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Rear Fascia Lower Signal Lamp (1) » Install [2x]

  3. Rear Fascia Signal Lamp Bolt (1) » Install and tighten [4x] — Fastener Specifications

  4. { If equipped } Connect the electrical connector. [2x]

  5. Rear Closure Hands Free Module Bracket (1) » Install

  6. Rear Closure Hands Free Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  7. Rear Closure Hands Free Module Retainer (2) » Install [2x]

  8. Install the 2 wire harness retainers.

  9. Rear Closure Hands Free Lamp (2) » Install

  10. Rear Closure Hands Free Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  11. Rear Closure Hands Free Module (2) » Install

  12. Rear Closure Hands Free Module Bolt (1) » Install and tighten — Fastener Specifications

  13. Rear Closure Hands Free Sensor (1) » Install

  14. Connect all electrical connectors.

  15. Rear Bumper Fascia Trailer Hitch Cover (2) » Install

  16. Install the 2 rear bumper fascia trailer hitch cover retainers (1) turn a ¼ turn clockwise to secure.

  17. Rear Bumper Fascia Molding (2) » Install

  18. Rear Bumper Fascia Molding Retainer (1) » Install [4x]

  19. Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation
