Special Tools (3)

Engine Mechanical - 5.3L L84 or 6.2L L87 | Special Tools and Equipment | Document ID: 5628077 Special Tools Illustration Tool Number/Description

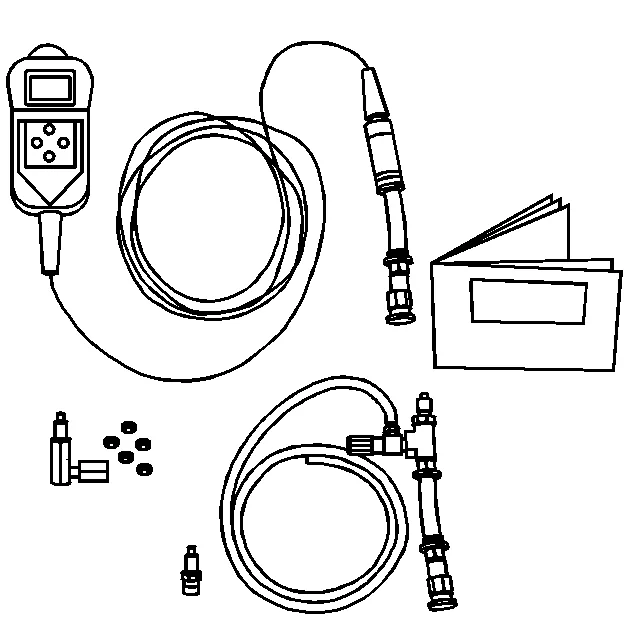

CH-48027 Digital Pressure Gauge

DT-21366 J-21366 Converter Holding Strap

EN-956-1 Extension

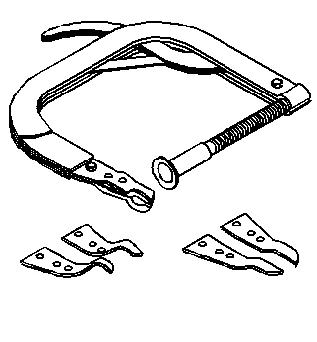

EN-8062 J-8062 Valve Spring Compressor– Head Off

EN-8087

Illustration Tool Number/Description J-8087 Cylinder Bore Gauge

EN-8089 J-8089 Carbon Removal Brush

EN-8520 J-8520 Cam Lobe Lift Indicator

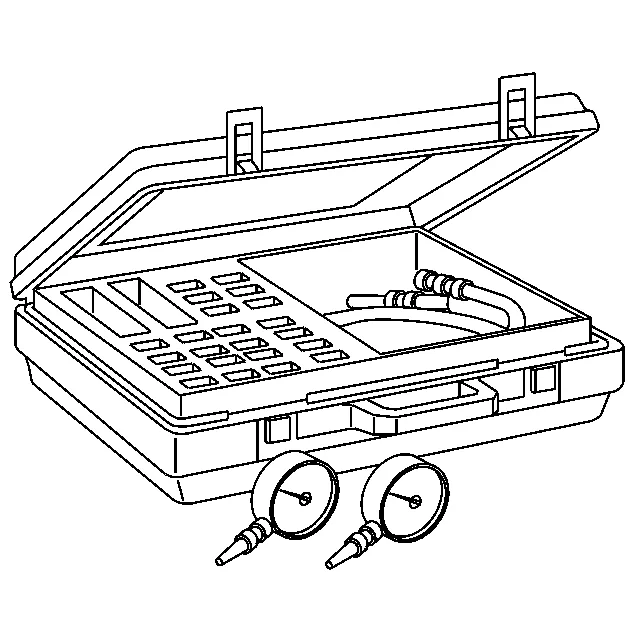

EN-21867-A GE-21867-A Oil Pressure Gauge Kit

Illustration	Tool Number/Description

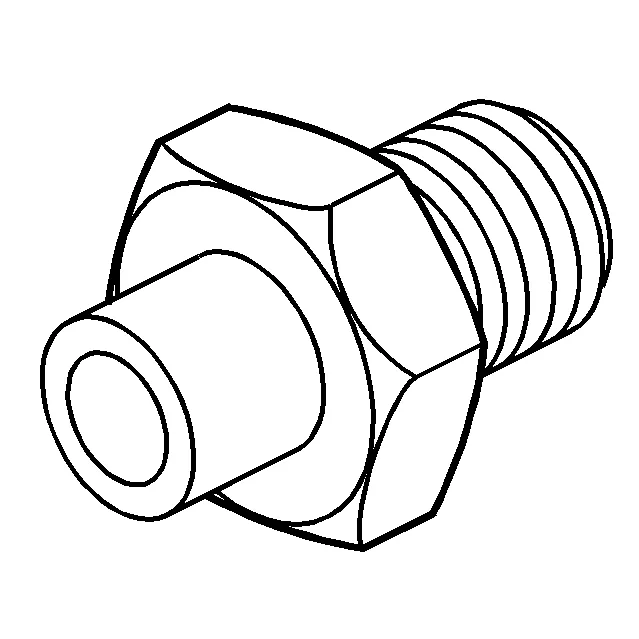

	EN-21867-6 J-21867-6 Oil Pressure Gauge Adapter
	EN-21867-850 J-21867-850 Oil Pressure Adapter
	EN-22738-B J-9666 Valve Spring Tester
	EN-22794 J-22794 Spark Plug Port Adapter

Illustration	Tool Number/Description
	EN-24270 J-24270 Cylinder Bore Ridge Reamer
	EN-28410 J-28410 Gasket Remover
	EN-33049 J-33049 Camshaft Bearing Service Set

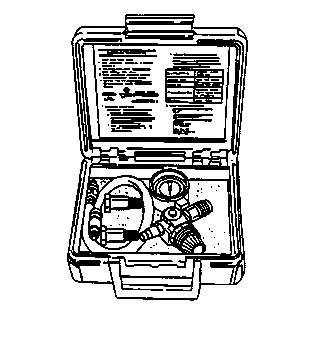

	EN-35667-A J-35667-A Cylinder Head Leakdown Tester

Illustration	Tool Number/Description
	EN-36857 J-36857 Engine Lift Bracket

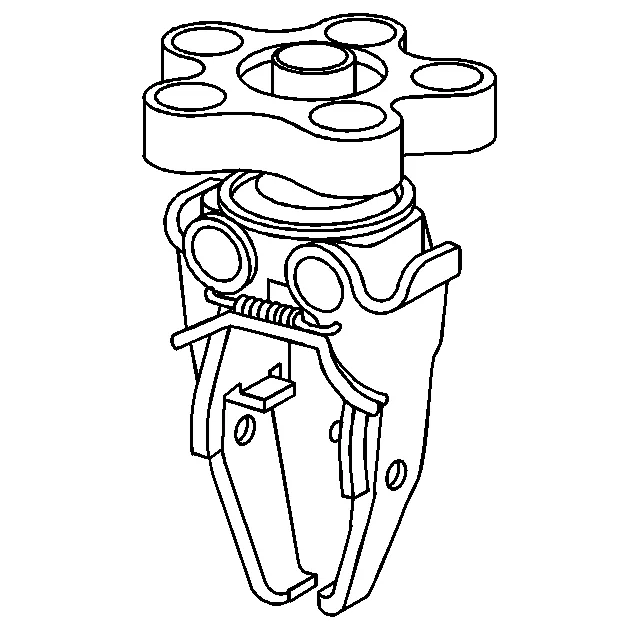

	EN-38606 J-38606 Valve Spring Compressor
	EN-41478-A Crankshaft Front Oil Seal Installer
	EN-41479-2A J-41479-2A Crankshaft Rear Oil Seal Installation Guide

Illustration	Tool Number/Description

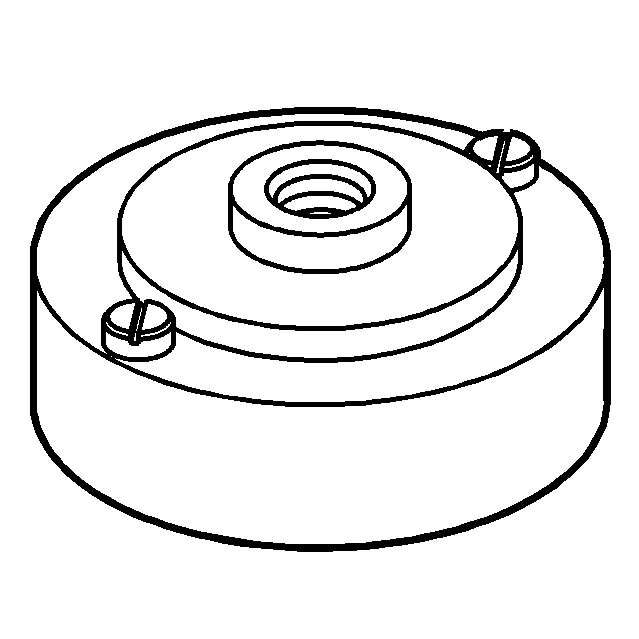

	EN-41479-B J-41479-B Crankshaft Rear Oil Seal Installer
	EN-41479-10 J-41479-10 Crankshaft Rear Oil Seal Installer Adapter
	EN-41556 J-41556 Connecting Rod Guide
	EN-41665-A J-41665-A J-41665 Crankshaft Balancer and Sprocket Installer

Illustration	Tool Number/Description
	EN-41816 J-41816 Crankshaft Balancer Remover
	EN-42385–50 Head/Main Bolt Thread Repair Kit
	EN-42385-100 J-42385-100 Head/Main Bolt Thread Repair Kit
	EN-42385-200 J-42385-200 Common Thread Repair Kit

Illustration	Tool Number/Description

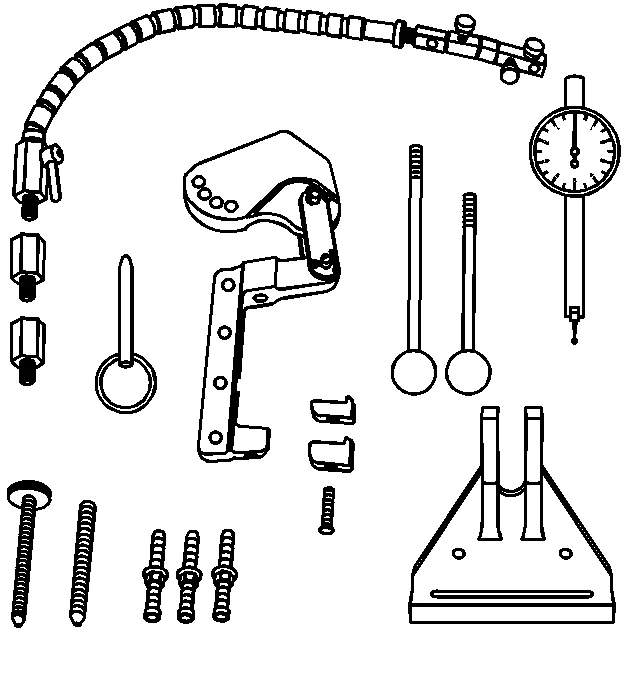

	EN-42385-300 J-42385-300 Fixtures and Hardware Kit
	EN-42386-A J-42386-A Flywheel Holding Tool
	EN-43690-A J-43690-A Rod Bearing Clearance Checking Tool
	EN-44226-5 Crankshaft Protector

Illustration	Tool Number/Description

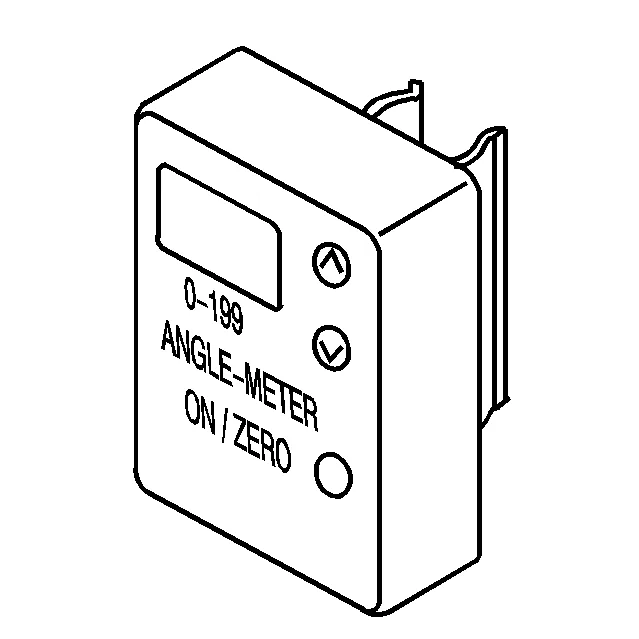

	EN-45059 J-45059 Angle Meter

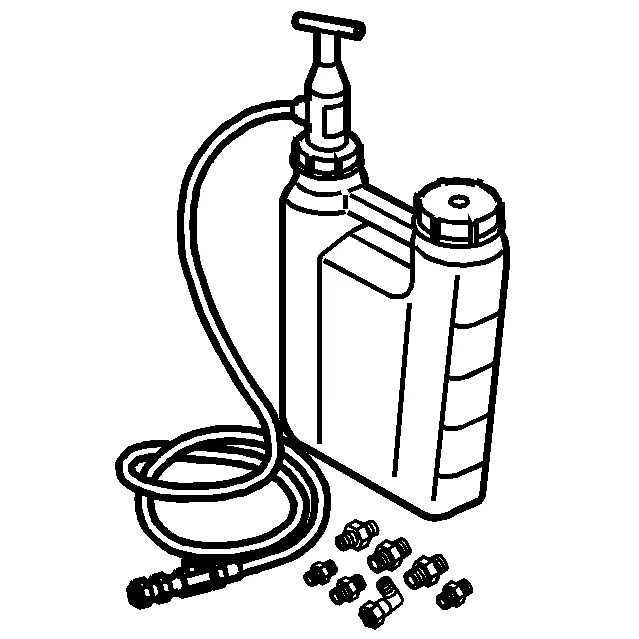

	EN-45299 J-45299 Engine Preluber
	EN-46116 Valve Stem Seal Remover/Installer
	EN-46330 Timing Belt Tensioner Retaining Pin

Illustration	Tool Number/Description
	EN-46335-A J-46335 Valve Spring Compressor-Head On-Vehicle
	EN-46745 J-46354 Piston Pin Clip Remover/Installer

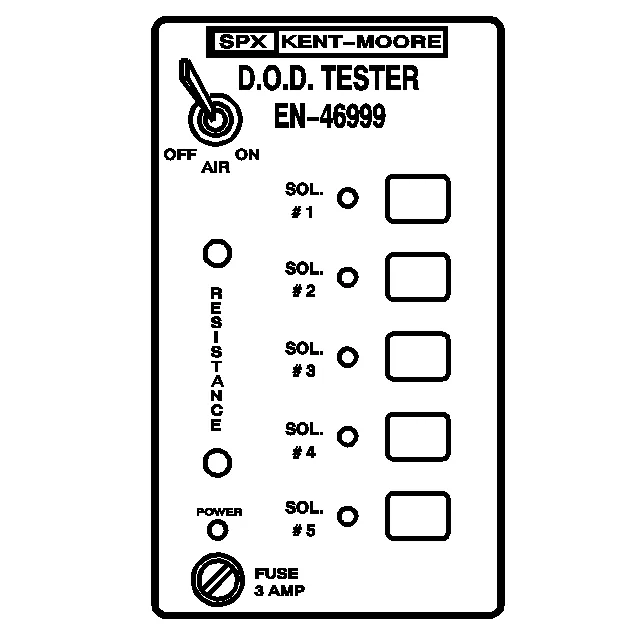

	EN-46999 Active Fuel Management Tester
	EN-46999-18 Active Fuel Management Tester Air Adapter

Illustration	Tool Number/Description

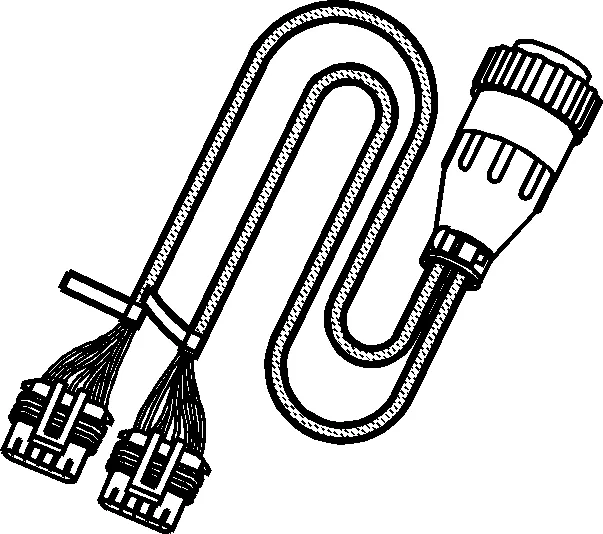

	EN-46999-20 Active Fuel Management Tester Harness – Small Block V8
	EN-47909 Injector Bore and Sleeve Cleaning Kit
	EN-47971 Oil Pressure Gauge Adapter
	EN-49102 J-41818 Crankshaft Bearing Cap Remover

Illustration	Tool Number/Description
	EN-49245 Fuel Injection Seal Installer Sizer
	EN-49248 Injector Rail Assembly Remover
	EN-51091 Crankshaft Front Oil Seal Installer
	EN-51092 Fuel Pump Installation Guage

Illustration	Tool Number/Description
	EN-51096 Rear Main Seal Remover
	EN-51097 Injector Retaining Clip Installer
	EN-51105 Injector Seal Installer and Sizer
	EN-51267 Oil Pump Alignment Tool

Illustration	Tool Number/Description
	EN-51767 Stretchy Belt Installer
	EN-51768 Engine Support Fixture Adapter Bolts M8
	EN-52059 Engine Support Fixture Adapter Bolts M10
	EN-52243 Belt Tensioner Compressor

Illustration	Tool Number/Description
	EN-52287 Balancer Holding Tool
	EN-52511 FAAFM Oil Control Solenoid Remover
	GE-6125-1B J-6125-1B Slide Hammer with Adapter
	GE-7872 J-7872 Magnetic Base Dial Indicator Set

Illustration	Tool Number/Description
	GE-23907-1 J-23907-1 Slide Hammer with Shaft

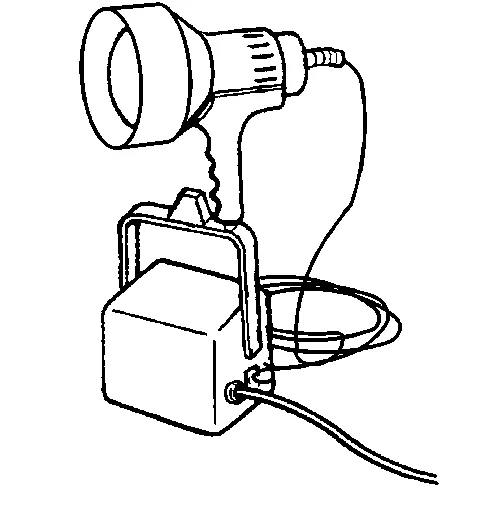

	GE-42220 J-28428-E High-Intensity Black Light Kit
