Rear Side Door Pocket Illumination Lamp Replacement

Removal Procedure

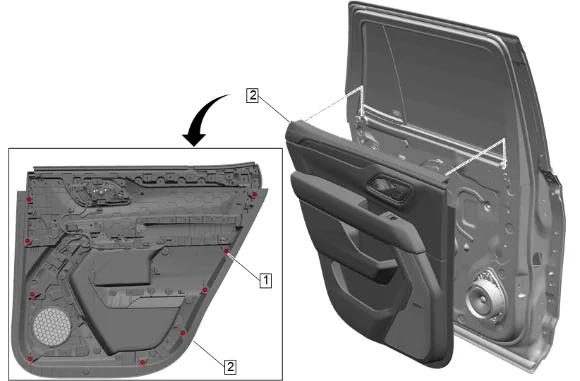

Rear Side Door Pocket Illumination Lamp Replacement — figure 1

1. Rear Side Door Trim (2) » Remove — Rear Side Door Trim Removal and Installation

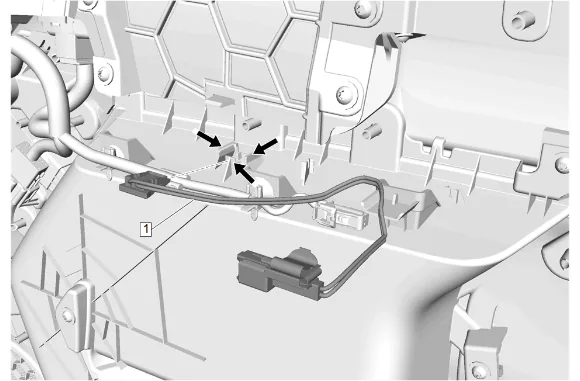

Rear Side Door Pocket Illumination Lamp Replacement — figure 2

2. Reposition the trim panel insulator as necessary.
3. Disconnect the electrical connector.

Note

Observe the mounting and location of the wiring harness to ensure proper reinstallation.

4. Release the rear side door pocket illumination lamp wiring harness (1) from the rear side door trim.

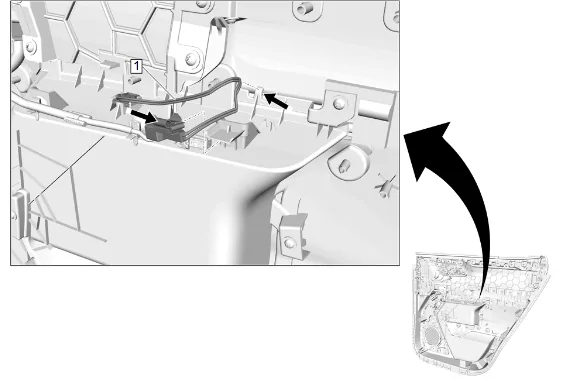

Rear Side Door Pocket Illumination Lamp Replacement — figure 3

5. Release the retaining tabs.

6. Rear Side Door Pocket Illumination Lamp (1) » Remove Installation Procedure

7. Rear Side Door Pocket Illumination Lamp (1) » Install

8. Ensure the retaining tabs have fully secured.

9. Secure the rear side door pocket illumination lamp wiring harness (1) to the rear side door trim.

10. Connect the electrical connector.

11. Install the trim panel insulator.

12. Rear Side Door Trim (2) » Install — Rear Side Door Trim Removal and Installation
