Seal Locations (2 of 3)

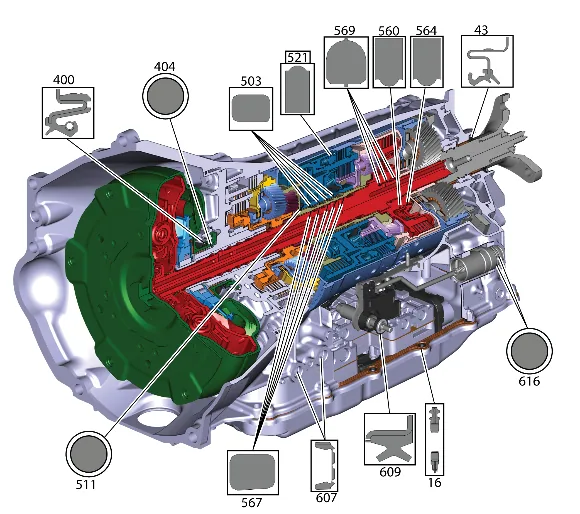

Seal Locations (2 of 3) — figure 1

(16) Automatic Transmission Fluid Pan Gasket (43) Propeller Shaft Transmission Flange Fluid Seal (400) Torque Converter Fluid Seal (404) Torque Converter Fluid Seal (503) Direct Overdrive Sun Gear Shaft Seal (511) 2-3-4-5-7-9-10 Clutch Piston Dam Seal- Inner (521) 4-5-6-7-8-9-10-Reverse Clutch Piston Seal- Outer (560) 1-3-5-6-7-8-9 Clutch Piston Seal (564) 1-3-5-6-7-8-9 Clutch Piston Dam Seal (567) Turbine Shaft Seal (569) Turbine Shaft Seal (607) Transmission Fluid Cooler Pipe Fitting Seal (609) Manual Shift Shaft Seal (616) Park Pawl Actuator Guide Seal
