Transfer Case Two_Four Wheel Drive Actuator Replacement (1)

Transfer Case Two/Four Wheel Drive Actuator Replacement Removal Procedure

1. Start vehicle and shift the transfer case to 2WD/2High.
2. Turn the vehicle off.
3. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
4. Raise and support the vehicle. Lifting and Jacking the Vehicle

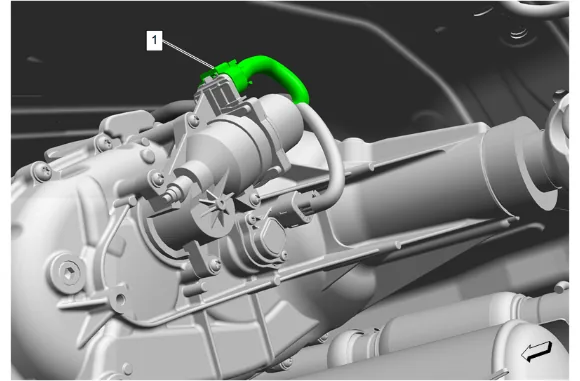

Transfer Case Two_Four Wheel Drive Actuator Replacement (1) — figure 1

5. Transfer Case Two/Four Wheel Drive Actuator Electrical Connector (1) » Disconnect

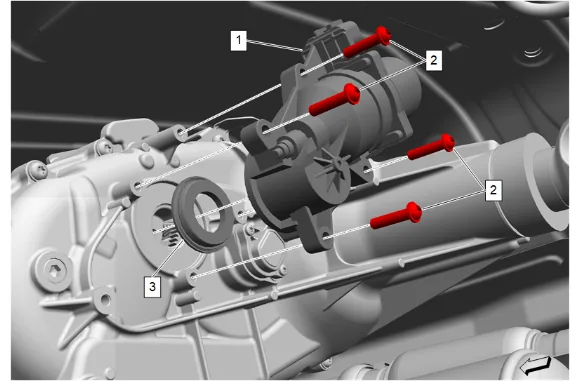

Transfer Case Two_Four Wheel Drive Actuator Replacement (1) — figure 2

6. Transfer Case Two/Four Wheel Drive Actuator Bolt/Screw (1) » Remove [4x]
7. Transfer Case Two/Four Wheel Drive Actuator (2) » Remove

Note

If the transfer case two/four wheel drive actuator seal (3) is damaged, replace the seal and actuator together as an assembly.

8. Clean the sealing surface as necessary. Installation Procedure

9. Transfer Case Two/Four Wheel Drive Actuator (2) » Install

Caution

Refer to Fastener Caution.

2. Transfer Case Two/Four Wheel Drive Actuator Bolt/Screw (1) » Install and tighten [4x] — Fastener Specifications

3. Transfer Case Two/Four Wheel Drive Actuator Electrical Connector (1) » Connect

4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

5. Perform the transfer case range actuator learn. Transfer Case Range Actuator Learn

6. Start the vehicle and shift the transfer case through all modes and ranges to verify correct operation.
