Generator Battery Jumper Cable Replacement (LM2)

Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
Generator Battery Jumper Cable Replacement (LM2) — figure 1
Generator Battery Jumper Cable Replacement (LM2) — figure 1

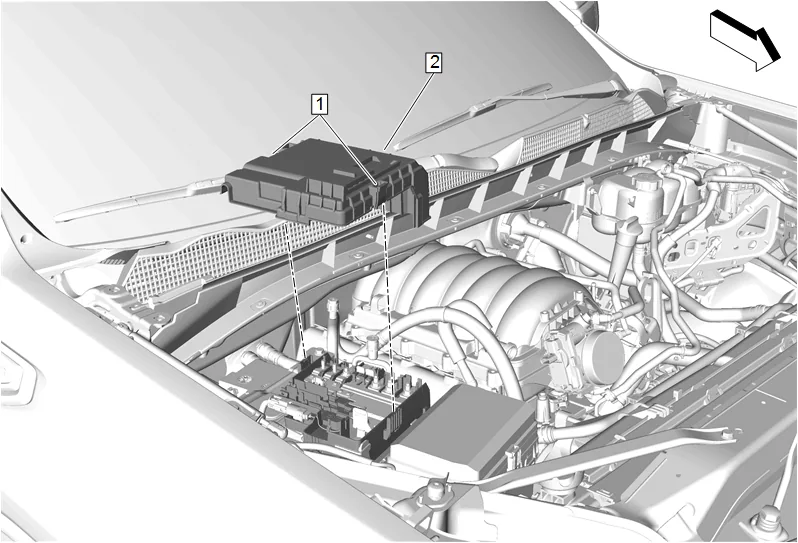

  1. Retainer (1) » Disengage [2x]
  2. Front Compartment Fuse Block Cover (2) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 2
Generator Battery Jumper Cable Replacement (LM2) — figure 2

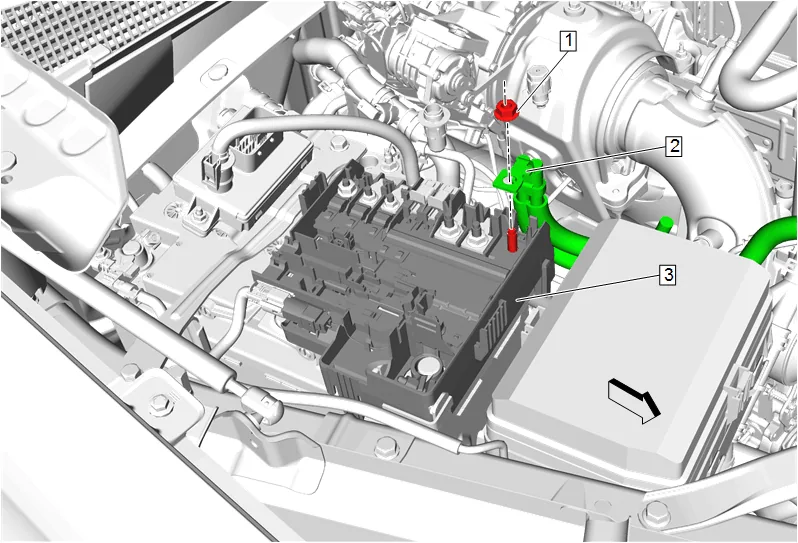

  1. Battery Positive Cable Nut (1) @ Battery Distribution Engine Compartment Fuse Block (3) » Remove
  2. Generator Battery Jumper Cable (2) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 3
Generator Battery Jumper Cable Replacement (LM2) — figure 3
  1. Engine Wiring Harness Junction Block Cover (1) » Remove
  2. Battery Positive Cable Nut (2) @ Engine Wiring Harness Junction Block » Remove
  3. Generator Battery Jumper Cable (3) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 4
Generator Battery Jumper Cable Replacement (LM2) — figure 4

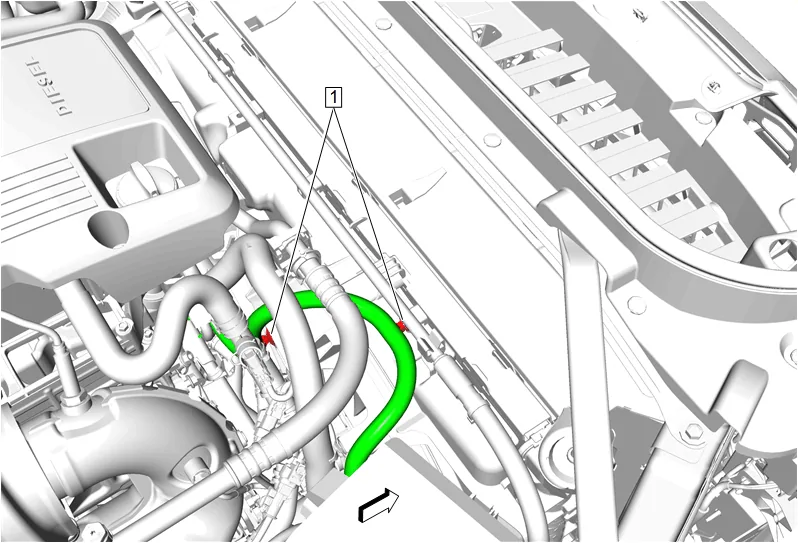

  1. Retainer (1) » Disengage [3x]
Generator Battery Jumper Cable Replacement (LM2) — figure 5
Generator Battery Jumper Cable Replacement (LM2) — figure 5

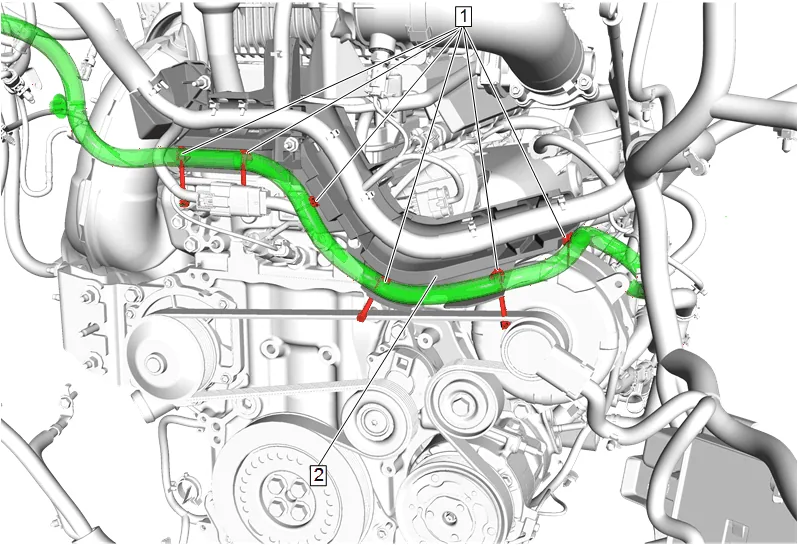

  1. Retainer (1) @ Engine Harness Channel Conduit (2) » Disengage [6x]
Generator Battery Jumper Cable Replacement (LM2) — figure 6
Generator Battery Jumper Cable Replacement (LM2) — figure 6

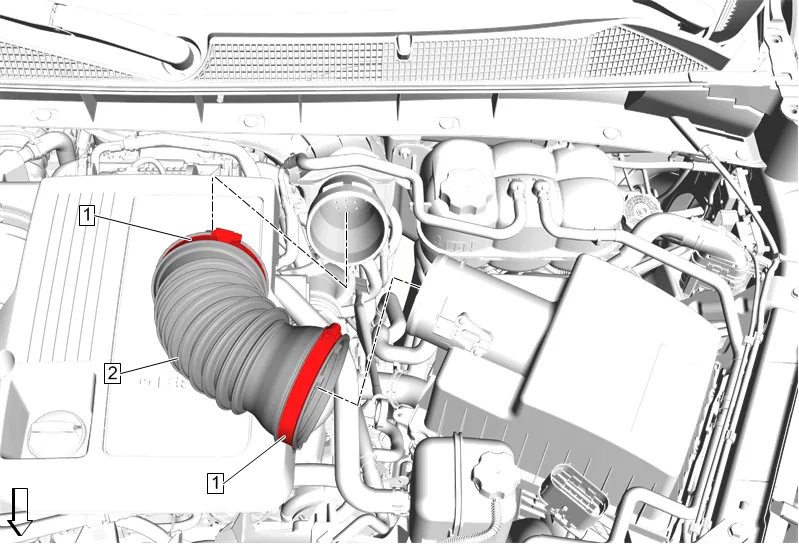

  1. Air Cleaner Outlet Duct Clamp (1) » Loosen [2x]
  2. Air Cleaner Outlet Front Duct (2) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 7
Generator Battery Jumper Cable Replacement (LM2) — figure 7
  1. Hood Latch Actuator Bolt (1) » Remove [2x]
  2. Hood Secondary Latch Release Handle (2) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 8
Generator Battery Jumper Cable Replacement (LM2) — figure 8

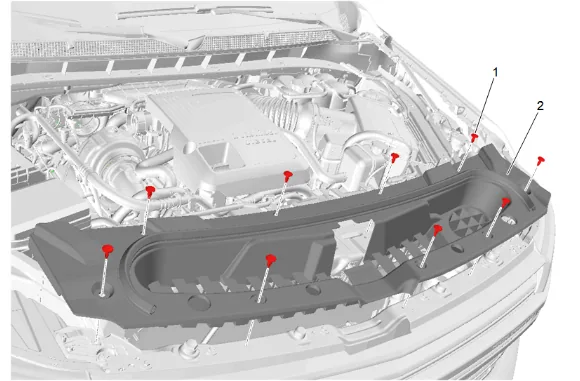

  1. Intake Air Baffle Retainer (1) » Remove [9x]
  2. Intake Air Splash Shield (2) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 9
Generator Battery Jumper Cable Replacement (LM2) — figure 9

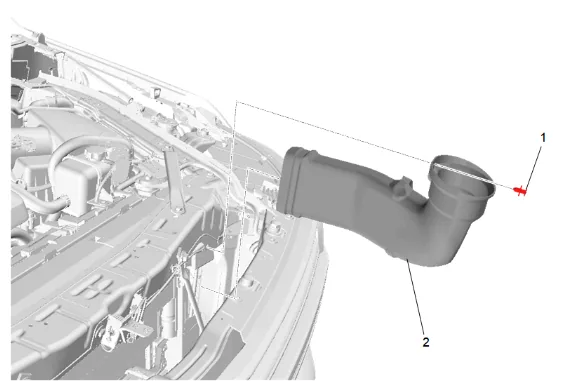

  1. Intake Air Duct Retainer (1) » Remove
  2. Intake Air Duct (2) » Reposition
Generator Battery Jumper Cable Replacement (LM2) — figure 10
Generator Battery Jumper Cable Replacement (LM2) — figure 10
  1. Disconnect the mass airflow sensor electrical connector.

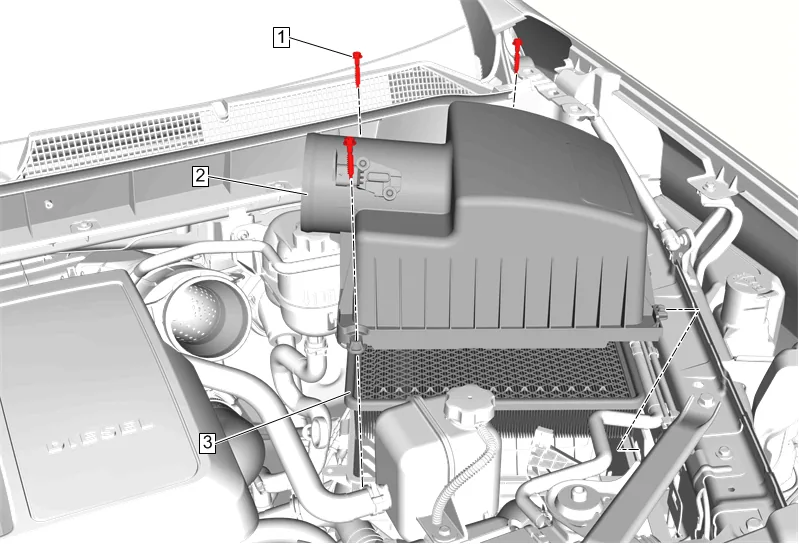

  2. Air Cleaner Housing Cover Bolt (1) » Remove [3x]
  3. Air Cleaner Upper Housing (2) » Remove
  4. Remove all retainers from air cleaner lower housing.
Generator Battery Jumper Cable Replacement (LM2) — figure 11
Generator Battery Jumper Cable Replacement (LM2) — figure 11

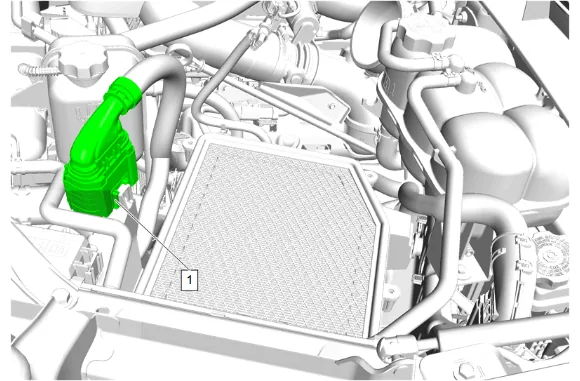

  1. Electrical Connector (1) @ Air Cleaner Lower Housing » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 12
Generator Battery Jumper Cable Replacement (LM2) — figure 12

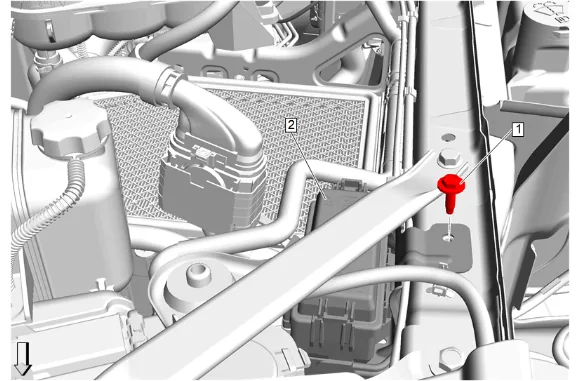

  1. Engine Wiring Harness Fuse Block Bracket Bolt (1) » Remove
  2. Accessory Wiring Junction Block (2) » Reposition
Generator Battery Jumper Cable Replacement (LM2) — figure 13
Generator Battery Jumper Cable Replacement (LM2) — figure 13
  1. Air Cleaner Nut (1) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 14
Generator Battery Jumper Cable Replacement (LM2) — figure 14

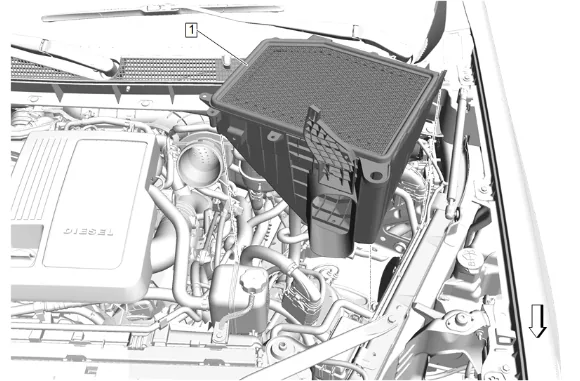

  1. Air Cleaner Lower Housing (1) » Remove
Generator Battery Jumper Cable Replacement (LM2) — figure 15
Generator Battery Jumper Cable Replacement (LM2) — figure 15

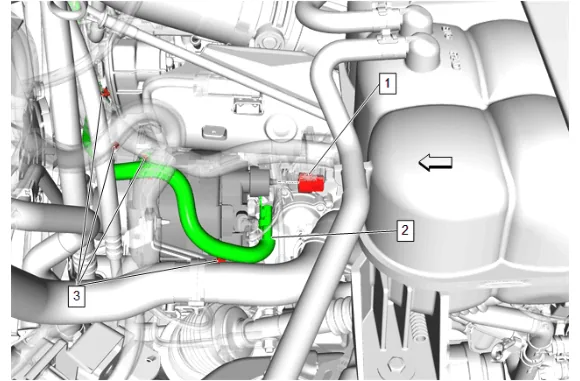

  1. Battery Positive Cable Nut (1) @ Generator » Remove

  2. Retainer (3) » Disengage

  3. Generator Battery Jumper Cable (2) » Remove Installation Procedure

  4. Generator Battery Jumper Cable (2) » Install

  1. Battery Positive Cable Nut (1) @ Generator » Install and tighten — Fastener Specifications

  2. Retainer (3) » Engage

  3. Retainer (1) @ Engine Harness Channel Conduit (2) » Engage [6x]

  4. Air Cleaner Lower Housing (1) » Install

  5. Air Cleaner Nut (1) » Install and tighten — Fastener Specifications

  6. Accessory Wiring Junction Block (2) » Install

  7. Engine Wiring Harness Fuse Block Bracket Bolt (1) » Install and tighten — Fastener Specifications

  8. Electrical Connector (1) @ Air Cleaner Lower Housing » Install

  9. Install all retainers to the air cleaner lower housing.

  10. Air Cleaner Upper Housing (2) » Install

  11. Air Cleaner Housing Cover Bolt (1) » Install and tighten [3x] — Fastener Specifications

  12. Connect the mass airflow sensor electrical connector.

  13. Intake Air Duct (2) » Install

  14. Intake Air Duct Retainer (1) » Install

  15. Intake Air Splash Shield (2) » Install

  16. Intake Air Baffle Retainer (1) » Install [9x]

  17. Hood Secondary Latch Release Handle (2) » Install

  18. Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications

  19. Air Cleaner Outlet Front Duct (2) » Install

  20. Air Cleaner Outlet Duct Clamp (1) » Tighten [2x] — Fastener Specifications

  21. Retainer (1) » Engage [3x]

  22. Generator Battery Jumper Cable (3) » Install

  23. Battery Positive Cable Nut (2) @ Engine Wiring Harness Junction Block » Install and tighten — Fastener Specifications

  24. Engine Wiring Harness Junction Block Cover (1) » Install

  25. Generator Battery Jumper Cable (2) » Install

  26. Battery Positive Cable Nut (1) @ Battery Distribution Engine Compartment Fuse Block (3) » Install and tighten — Fastener Specifications

  27. Front Compartment Fuse Block Cover (2) » Install

  28. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
