Tahoe / Yukon Service Manual

Front End Upper Tie Bar Removal and Installation

Removal Procedure

Front End Upper Tie Bar Removal and Installation — figure 1
Front End Upper Tie Bar Removal and Installation — figure 1
  1. Hood Latch Actuator Bolt (1) » Remove [2x]
  2. Hood Secondary Latch Release Handle (2) » Remove
Front End Upper Tie Bar Removal and Installation — figure 2
Front End Upper Tie Bar Removal and Installation — figure 2

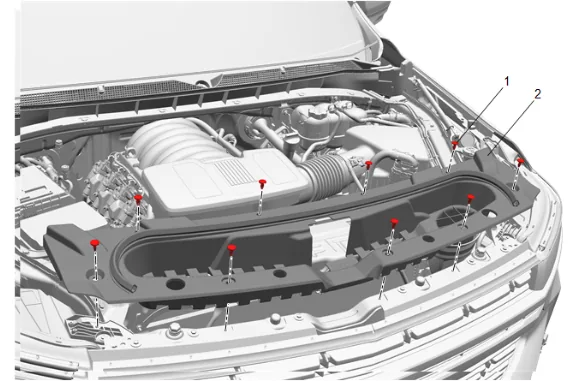

  1. Intake Air Baffle Retainer (1) » Remove [9x]
  2. Intake Air Splash Shield (2) » Remove
Front End Upper Tie Bar Removal and Installation — figure 3
Front End Upper Tie Bar Removal and Installation — figure 3

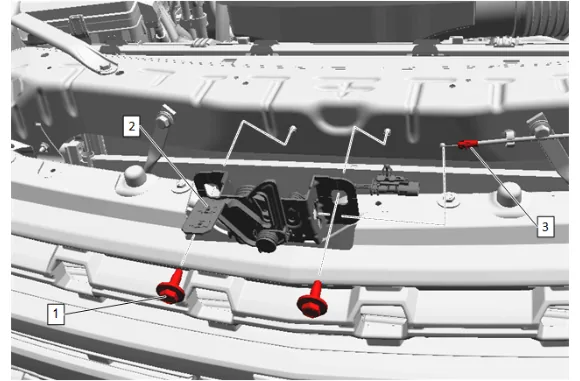

  1. Hood Primary and Secondary Latch Bolt (1) » Remove [2x]
  2. Hood Primary and Secondary Latch (2) » Remove
  3. Disconnect the hood primary latch release cable (3)  from the hood primary latch.
  4. Release the retainer under the tie bar and disconnect the electrical connector.

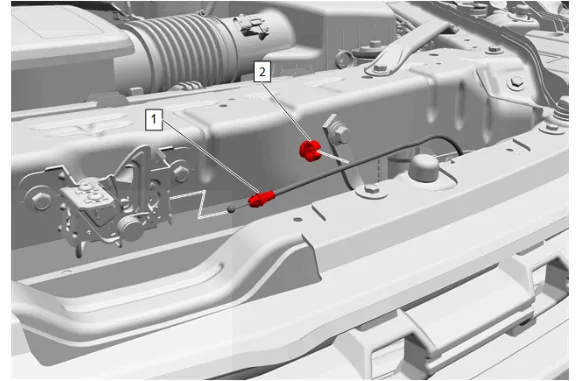

Front End Upper Tie Bar Removal and Installation — figure 4
Front End Upper Tie Bar Removal and Installation — figure 4
  1. Reposition the hood primary latch release cable (1)  from the upper tie bar.
Front End Upper Tie Bar Removal and Installation — figure 5
Front End Upper Tie Bar Removal and Installation — figure 5
  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation
Front End Upper Tie Bar Removal and Installation — figure 6
Front End Upper Tie Bar Removal and Installation — figure 6

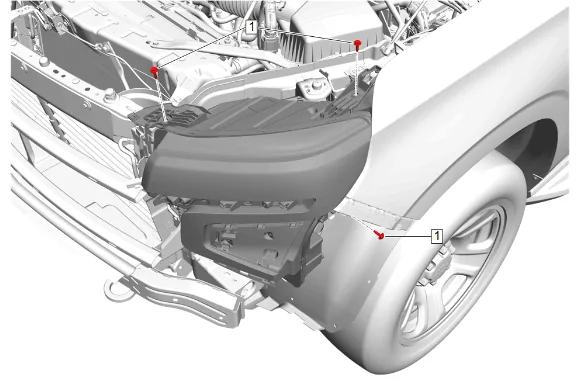

  1. Headlamp Bolt - Left Side and Right Side (1) » Remove [6x]

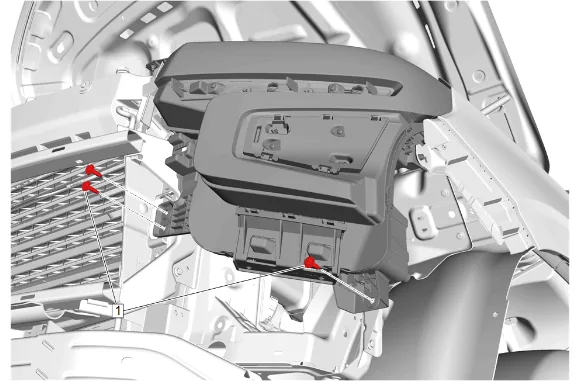

Front End Upper Tie Bar Removal and Installation — figure 7
Front End Upper Tie Bar Removal and Installation — figure 7
  1. Headlamp Bolt - Left Side and Right Side (1) » Remove [6x]

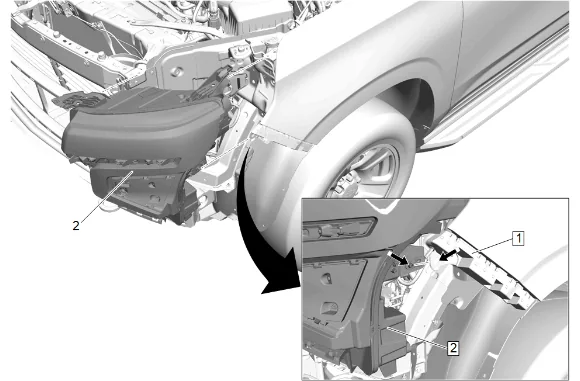

Front End Upper Tie Bar Removal and Installation — figure 8
Front End Upper Tie Bar Removal and Installation — figure 8
  1. Release the front headlamp guide pin from the front bumper fascia guide (1).
  2. Front Headlamp - Left Side and Right Side (2) » Remove [2x]
  3. Release the wiring harness retaining tab
  4. Disconnect all electrical connectors.

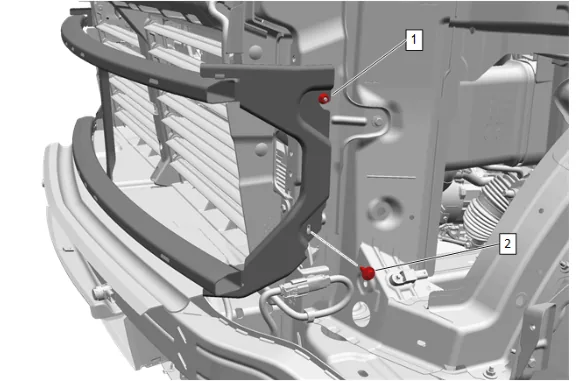

Front End Upper Tie Bar Removal and Installation — figure 9
Front End Upper Tie Bar Removal and Installation — figure 9
  1. Loosen the left and right side front bumper fascia upper stiffener nut (1).
  2. Remove the left and right side front bumper fascia upper stiffener bolt (2).
Front End Upper Tie Bar Removal and Installation — figure 10
Front End Upper Tie Bar Removal and Installation — figure 10

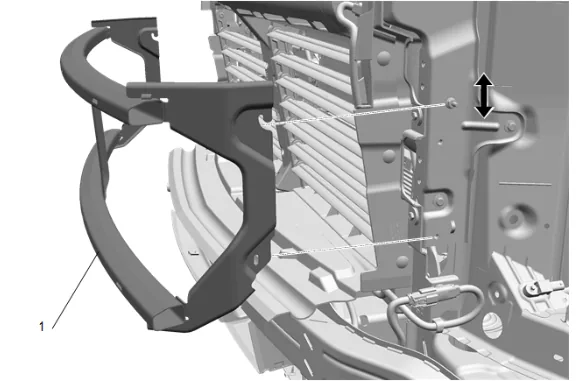

  1. Pull the front bumper fascia upper stiffener (1) up and out over the stud.
Front End Upper Tie Bar Removal and Installation — figure 11
Front End Upper Tie Bar Removal and Installation — figure 11

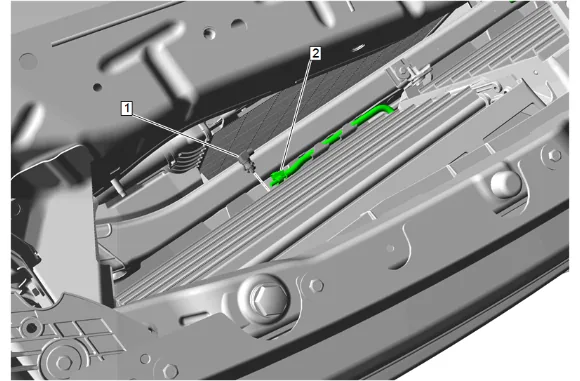

  1. Ambient Air Temperature Sensor (1) » Remove
  2. Disconnect the electrical connector. (2)

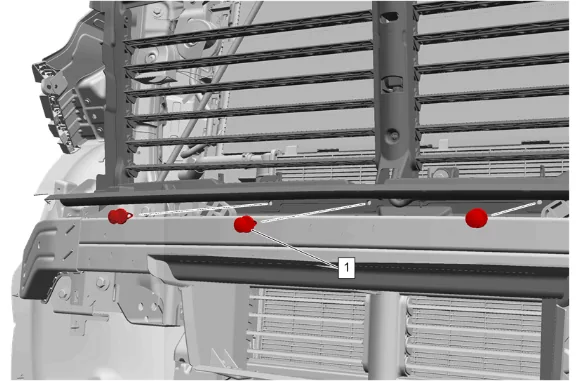

Front End Upper Tie Bar Removal and Installation — figure 12
Front End Upper Tie Bar Removal and Installation — figure 12
  1. Front Bumper Shutter Retainer (1) » Remove [3x]

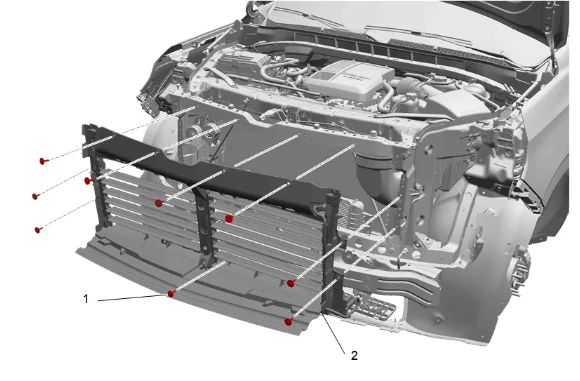

Front End Upper Tie Bar Removal and Installation — figure 13
Front End Upper Tie Bar Removal and Installation — figure 13
  1. Front Bumper Shutter Bolt (1) » Remove [9x]
  2. Front Bumper Shutter (2) » Remove

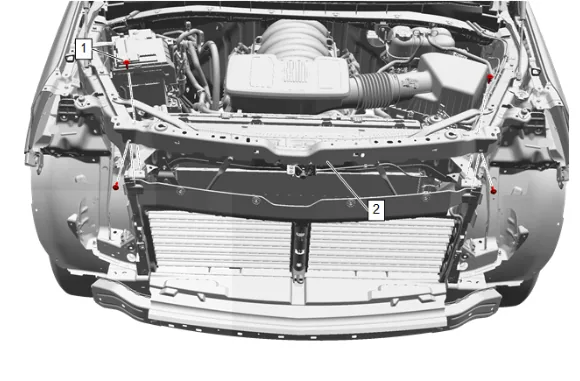

Front End Upper Tie Bar Removal and Installation — figure 14
Front End Upper Tie Bar Removal and Installation — figure 14
  1. Front Grille Support Bracket Bolt (1) » Remove [4x]
  2. Front Grille Support Reinforcement (2) » Remove

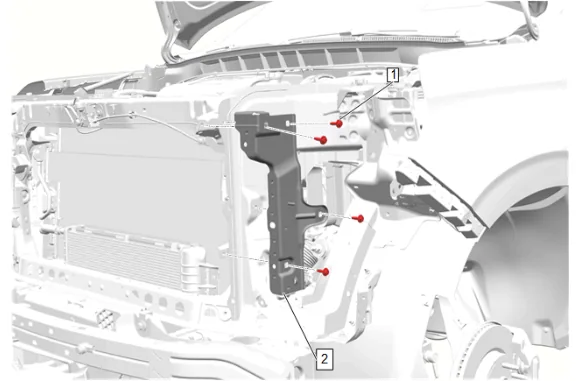

Front End Upper Tie Bar Removal and Installation — figure 15
Front End Upper Tie Bar Removal and Installation — figure 15
  1. Front End Upper Tie Bar Bolt (1) @ Headlamp Bracket » Remove [8x]
  2. Headlamp Bracket (2) » Remove [2x]

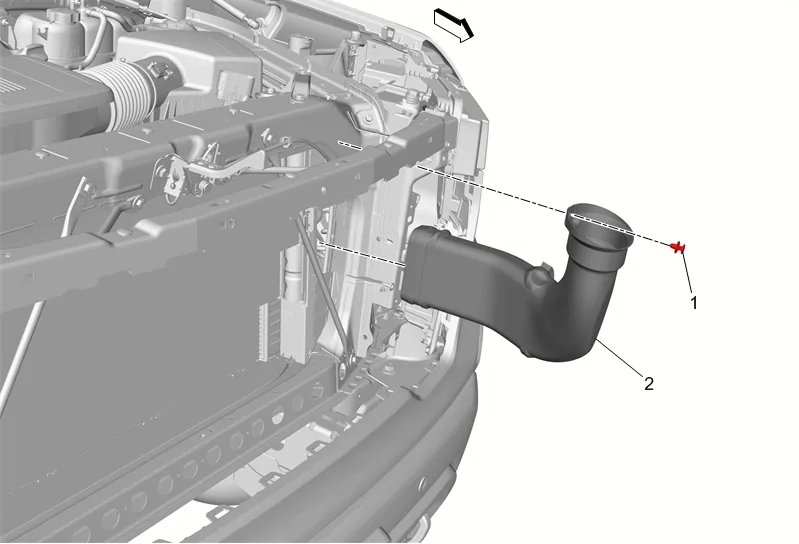

Front End Upper Tie Bar Removal and Installation — figure 16
Front End Upper Tie Bar Removal and Installation — figure 16
  1. Intake Air Duct Retainer (1) » Remove
  2. Intake Air Duct (2) » Remove

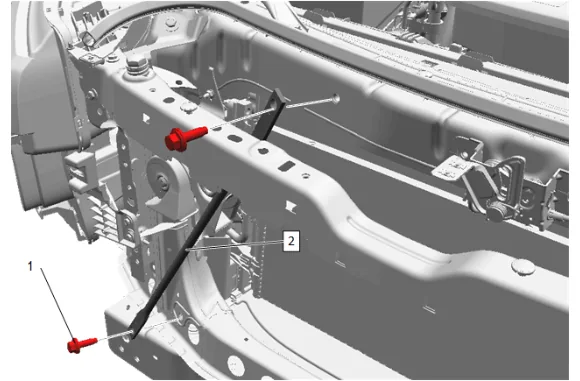

Front End Upper Tie Bar Removal and Installation — figure 17
Front End Upper Tie Bar Removal and Installation — figure 17
  1. Front End Sheet Metal Diagonal Brace Bolt (1) » Remove [4x]
  2. Front End Sheet Metal Diagonal Brace @ Radiator (2) » Remove [2x]

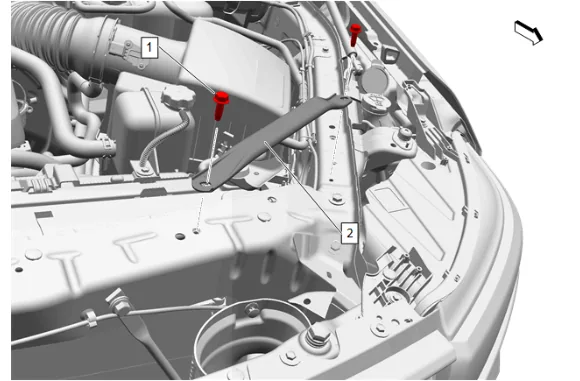

Front End Upper Tie Bar Removal and Installation — figure 18
Front End Upper Tie Bar Removal and Installation — figure 18
  1. Front End Sheet Metal Diagonal Brace Bolt (1) » Remove [4x]
  2. Front End Sheet Metal Diagonal Brace @ Upper Tie Bar (2) » Remove [2x]
Front End Upper Tie Bar Removal and Installation — figure 19
Front End Upper Tie Bar Removal and Installation — figure 19

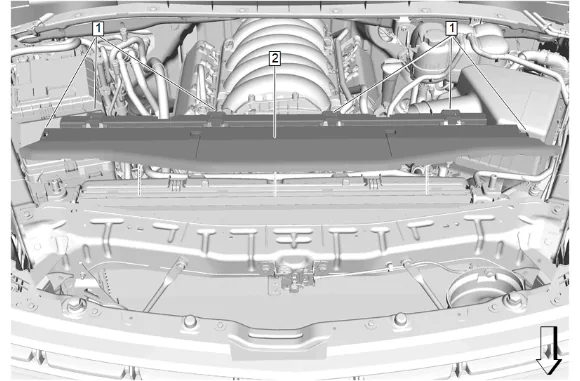

  1. Radiator Air Upper Baffle (1) » Remove
Front End Upper Tie Bar Removal and Installation — figure 20
Front End Upper Tie Bar Removal and Installation — figure 20

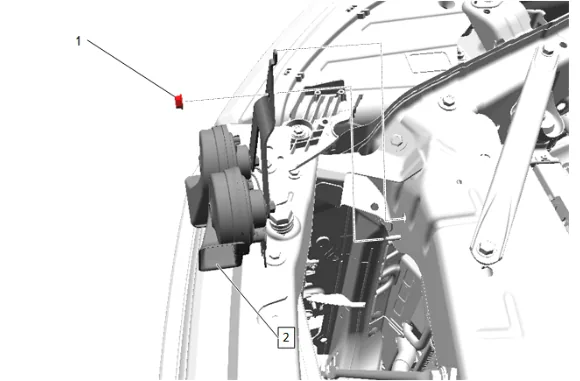

  1. Horn Nut (1) » Remove
  2. Dual Horn (2) » Remove
  3. Disconnect the electrical connector.

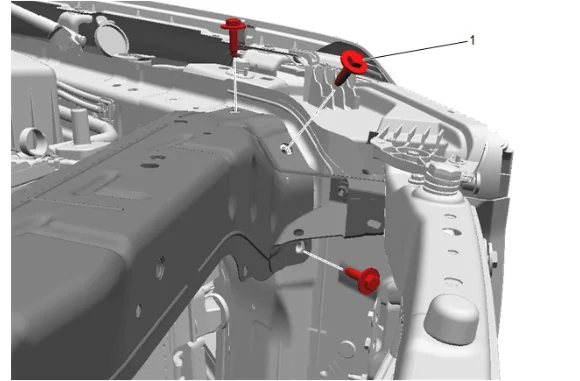

Front End Upper Tie Bar Removal and Installation — figure 21
Front End Upper Tie Bar Removal and Installation — figure 21
  1. Front End Upper Tie Bar Bolt (1) » Remove [3x]

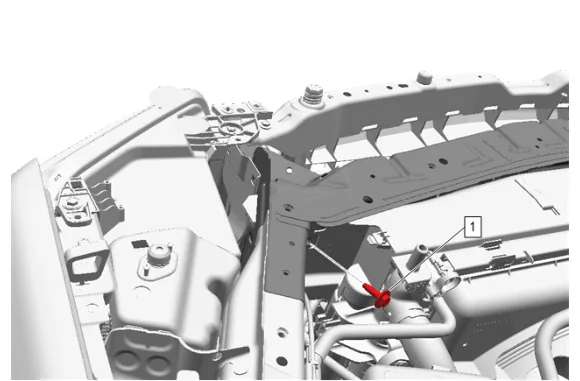

Front End Upper Tie Bar Removal and Installation — figure 22
Front End Upper Tie Bar Removal and Installation — figure 22
  1. Front End Upper Tie Bar Bolt (1) » Remove
Front End Upper Tie Bar Removal and Installation — figure 23
Front End Upper Tie Bar Removal and Installation — figure 23

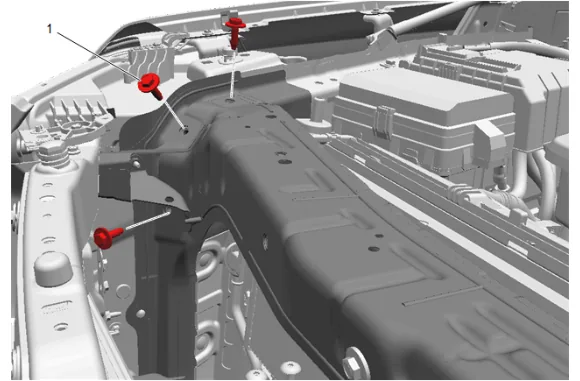

  1. Front End Upper Tie Bar Bolt (1) » Remove [3x]

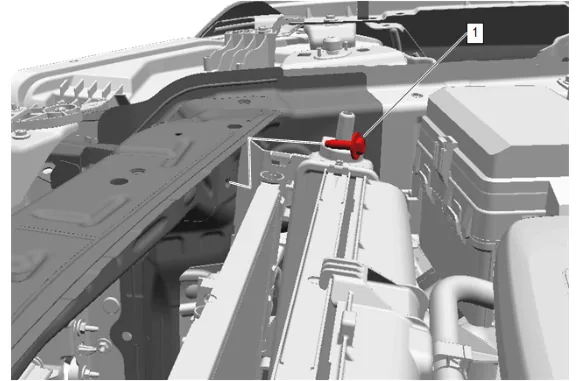

Front End Upper Tie Bar Removal and Installation — figure 24
Front End Upper Tie Bar Removal and Installation — figure 24
  1. Front End Upper Tie Bar Bolt (1) » Remove
  2. Disconnect the wiring harness retainers and reposition the harness as necessary.

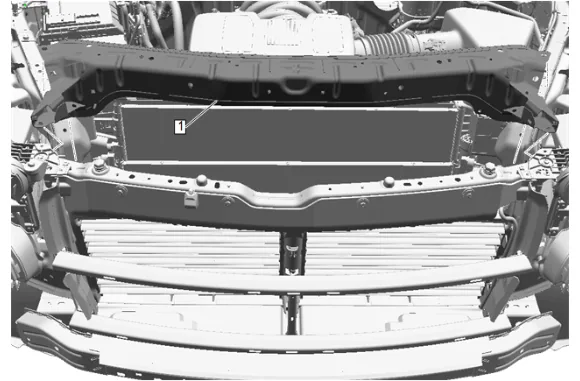

Front End Upper Tie Bar Removal and Installation — figure 25
Front End Upper Tie Bar Removal and Installation — figure 25

  1. Front End Upper Tie Bar (1) » Remove Installation Procedure

  2. Front End Upper Tie Bar (1) » Install

  3. Connect the wiring harness retainers and position the harness as necessary.

  1. Front End Upper Tie Bar Bolt (1) » Install and tighten — Fastener Specifications

  2. Front End Upper Tie Bar Bolt (1) » Install and tighten [3x] — Fastener Specifications

  3. Front End Upper Tie Bar Bolt (1) » Install and tighten — Fastener Specifications

  4. Front End Upper Tie Bar Bolt (1) » Install and tighten [3x] — Fastener Specifications

  5. Connect the electrical connector.

  6. Dual Horn (2) » Install

  7. Horn Nut (1) » Install and tighten — Fastener Specifications

  8. Radiator Air Upper Baffle (1) » Install

  9. Front End Sheet Metal Diagonal Brace @ Upper Tie Bar (2) » Install [2x]

  10. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 12.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 12.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 12.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 12.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  11. Front End Sheet Metal Diagonal Brace Bolt (1) » Install and tighten [4x] — Fastener Specifications

  12. Front End Sheet Metal Diagonal Brace @ Radiator (2) » Install [2x]

  13. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 15.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 15.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 15.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 15.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  14. Front End Sheet Metal Diagonal Brace Bolt (1) » Install and tighten [4x] — Fastener Specifications

  15. Intake Air Duct (2) » Install

  16. Intake Air Duct Retainer (1) » Install

  17. Headlamp Bracket - Left Side and Right Side (2) » Install [2x]

  18. Front End Upper Tie Bar Bolt - Left Side and Right Side (1) @ Headlamp Bracket » Install and tighten [8x] — Fastener Specifications

  19. Front Grille Support Reinforcement (2) » Install

  20. Front Grille Support Bracket Bolt (1) » Install and tighten [4x] — Fastener Specifications

  21. Front Bumper Shutter (2) » Install

  22. Front Bumper Shutter Bolt (1) » Install and tighten [9x] — Fastener Specifications

  23. Front Bumper Shutter Retainer (1) » Install [3x]

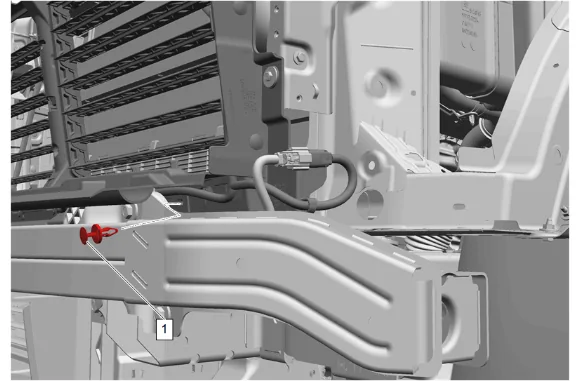

Front End Upper Tie Bar Removal and Installation — figure 26
Front End Upper Tie Bar Removal and Installation — figure 26

  1. Connect the electrical connectors and install wiring harness.

  2. Install the left and right side outer front bumper shutter retainer (1).

  3. Connect the electrical connector. (2)

  4. Ambient Air Temperature Sensor (1) » Install

  5. Front Bumper Fascia Upper Stiffener (1) » Install

  6. Install and tighten the left and right side front bumper fascia upper stiffener bolt (2). Fastener Specifications

  7. Tighten the left and right side front bumper fascia upper stiffener nut (1). Fastener Specifications

  8. Connect all electrical connectors.

  9. Secure the wiring harness retaining tab.

  10. Secure the front headlamp guide pin to the front bumper fascia guide (1).

  11. Front Headlamp - Left Side and Right Side (2) » Install [2x]

  12. Headlamp Bolt - Left Side and Right Side (1) » Install and tighten [6x] — Fastener Specifications

  13. Headlamp Bolt - Left Side and Right Side (1) » Install and tighten [6x] — Fastener Specifications

  14. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation

  15. After installation, aim the front headlamps. Front Headlamp Aiming

  16. Reposition the hood primary latch release cable (1)  from the upper tie bar.

  17. Hood Primary Latch Release Cable (3) » Install

  18. Install the retainer under the tie bar and connect the electrical connector.

  19. Hood Primary and Secondary Latch (2) » Install

  20. Hood Primary and Secondary Latch Bolt (1) » Install and tighten [2x] — Fastener Specifications

  21. Intake Air Splash Shield (2) » Install

  22. Intake Air Baffle Retainer (1) » Install [9x]

  23. Hood Secondary Latch Release Handle (2) » Install

  24. Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications
