Tahoe / Yukon Service Manual

Rear Side Door Weatherstrip Replacement - Door Side

Removal Procedure

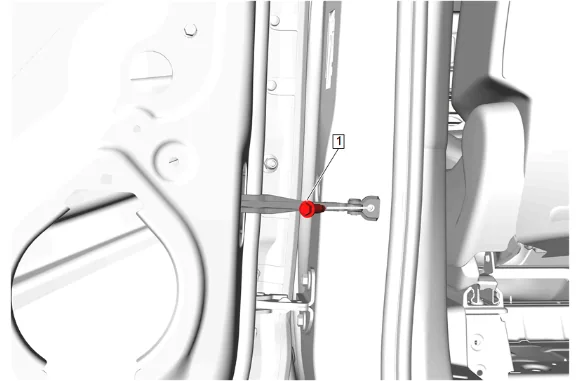

Rear Side Door Weatherstrip Replacement - Door Side — figure 1
Rear Side Door Weatherstrip Replacement - Door Side — figure 1

Rear Side Door Check Link Body Side Bolt (1) » Remove

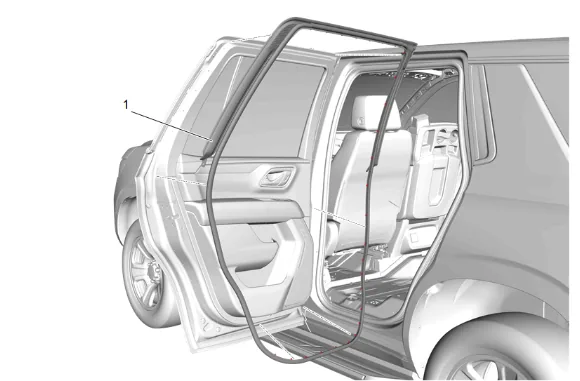

Rear Side Door Weatherstrip Replacement - Door Side — figure 2
Rear Side Door Weatherstrip Replacement - Door Side — figure 2

  1. Using the appropriate tool, remove the weatherstrip retainers from around the rear side door.

  2. Rear Side Door Weatherstrip - Door Side (1) » Remove Installation Procedure

  3. Working from top to bottom, install the rear side door weatherstrip retainers ensuring they are fully seated.

  4. Rear Side Door Weatherstrip - Door Side (1) » Install

  1. Rear Side Door Check Link Body Side Bolt (1) » Install and tighten — Fastener Specifications
