Front Seat Stowage Compartment Replacement (Seat Compartment)

Front Seat Stowage Compartment Replacement (Seat Compartment) Removal Procedure

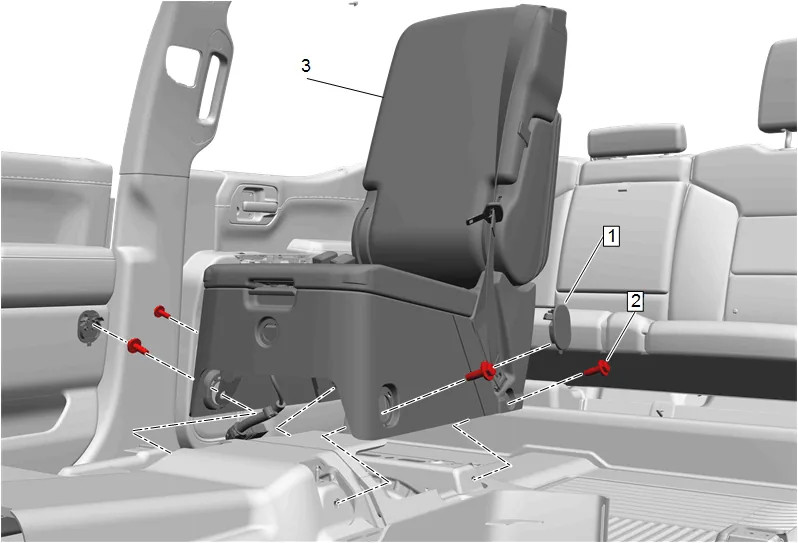

Front Seat Stowage Compartment Replacement (Seat Compartment) — figure 1

1. Front Center Seat (3) » Remove — Front Center Seat Removal and Installation

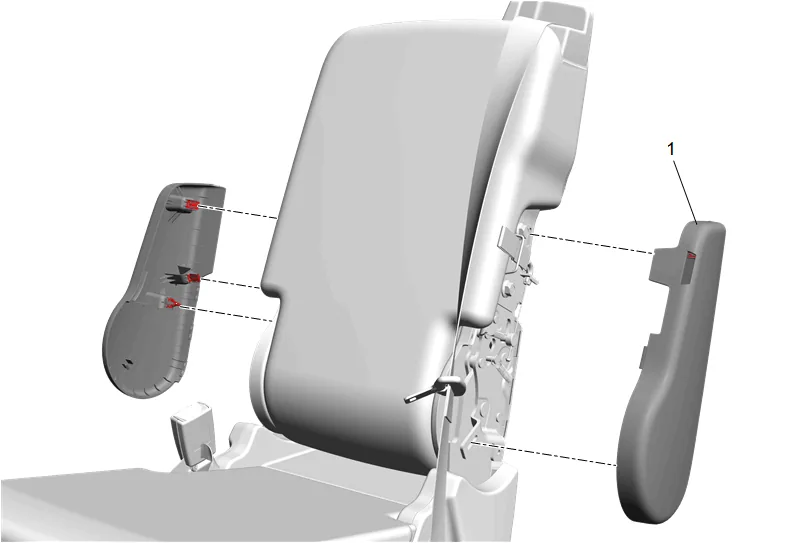

Front Seat Stowage Compartment Replacement (Seat Compartment) — figure 2

2. Using a suitable plastic trim tool, release the retaining clips.
3. Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Remove [2x]

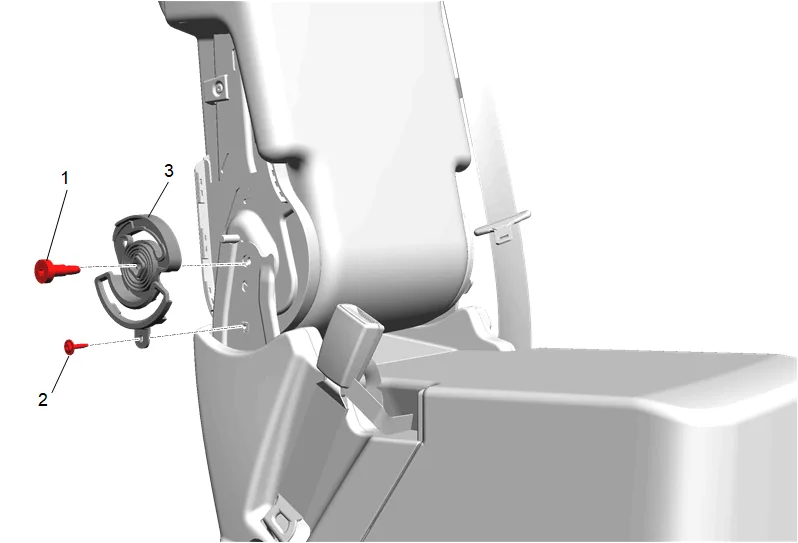

Front Seat Stowage Compartment Replacement (Seat Compartment) — figure 3

4. Front Seat Center Armrest Pivot Bolt (1) » Remove
5. Front Seat Armrest Adjust Retainer Bolt (2) » Remove
6. Front Seat Armrest Adjust Retainer (3) » Remove

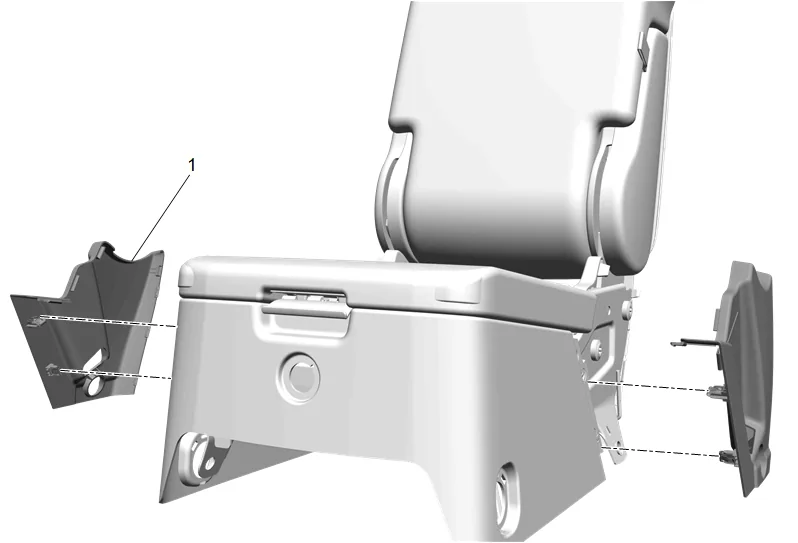

Front Seat Stowage Compartment Replacement (Seat Compartment) — figure 4

7. Using a suitable plastic trim tool, release the front seat center armrest hinge finish cover - lower retaining clips.

Note

Seat belt retaining bushings are for manufacturing purposes only.

8. Remove and DISCARD seat belt retaining bushings.
9. Front Seat Center Belt Buckle » Remove
10. Front Seat Center Belt Anchor Plate » Remove
11. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Remove [2x]

Front Seat Stowage Compartment Replacement (Seat Compartment) — figure 5

12. Disconnect the latch release cable.
13. Front Seat Center Armrest Bolt (1) » Remove [2x]
14. Front Center Seat Armrest (2) » Remove

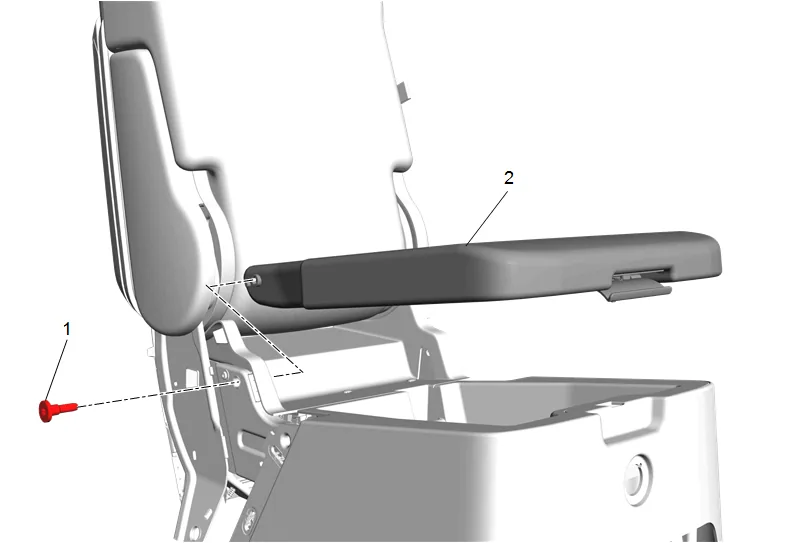

Front Seat Stowage Compartment Replacement (Seat Compartment) — figure 6

15. Front Seat Cushion Center Pad Pivot Bolt (1) » Remove

16. Front Seat Cushion Center Pad (2) » Remove Object Id: 5581809

17. Using a suitable plastic trim tool, release the retaining clips.

18. Front Seat Center Armrest Hinge Finish Inner Cover (1) » Remove Object Id: 5581797

19. From the underside of the front center seat, depress the six front seat stowage compartment  (1) retaining tabs while lifting the upwards to release the compartment from the seat frame.

20. { If equipped } Electrical Connector » Disconnect

21. Front Seat Stowage Compartment (1) » Remove

22. { If equipped } Theft Deterrent Module » Remove Installation Procedure Object Id: 5581797

23. { If equipped } Theft Deterrent Module » Install

24. Front Seat Stowage Compartment (1) » Install

25. { If equipped } Electrical Connector » Connect Object Id: 5581809

26. Front Seat Center Armrest Hinge Finish Inner Cover (1) » Install

27. Front Seat Cushion Center Pad (2) » Install

28. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 6.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 6.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 6.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 6.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Caution

Refer to Fastener Caution.

7. Front Seat Cushion Center Pad Pivot Bolt (1) » Install and tighten — Fastener Specifications

8. Front Center Seat Armrest (2) » Install

9. Front Seat Center Armrest Bolt (1) » Install and tighten [2x] — Fastener Specifications

10. Connect the latch release cable.

11. Front Seat Center Armrest Hinge Finish Cover - Lower (1) » Install [2x]

12. Front Seat Center Belt Anchor Plate » Install

13. Front Seat Center Belt Buckle » Install

14. Front Seat Armrest Adjust Retainer (3) » Install

15. Front Seat Armrest Adjust Retainer Bolt (2) » Install and tighten — Fastener Specifications

16. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 16.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 16.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 16.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 16.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

17. Front Seat Center Armrest Pivot Bolt (1) » Install and tighten — Fastener Specifications

18. Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Install [2x]

19. Front Center Seat (3) » Install — Front Center Seat Removal and Installation
