Battery Negative Cable Extension Cable Strap Replacement (LM2)

Battery Negative Cable Extension Cable Strap Replacement (LM2) Removal Procedure

1. Front Wheelhouse Liner - Right Side (3) » Remove — Front Wheelhouse Liner Replacement

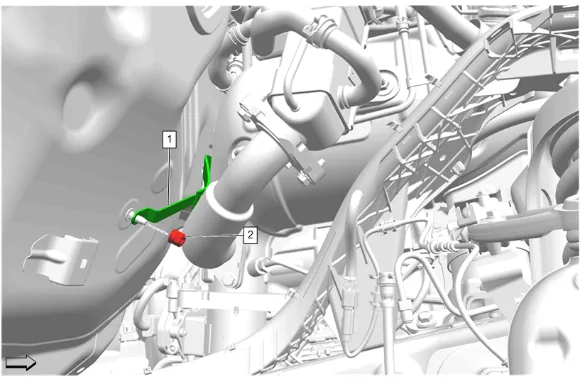

Battery Negative Cable Extension Cable Strap Replacement (LM2) — figure 1

2. Battery Negative Cable Ground Nut (2) » Remove
3. Battery Negative Cable Extension Cable Strap (1) » Remove

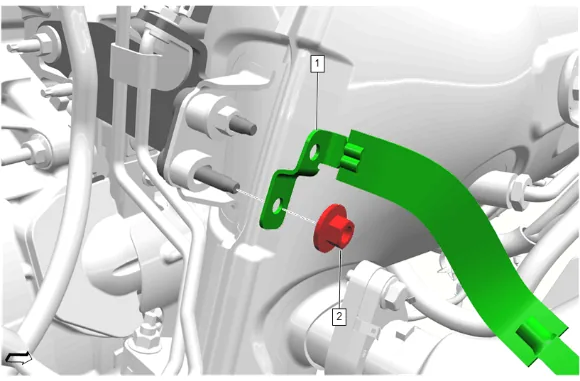

Battery Negative Cable Extension Cable Strap Replacement (LM2) — figure 2

4. Catalytic Converter Brace Bracket Nut (2) » Remove

5. Battery Negative Cable Extension Cable Strap (1) @ Catalytic Converter Brace Bracket » Remove Installation Procedure

6. Battery Negative Cable Extension Cable Strap (1) @ Catalytic Converter Brace Bracket » Install

Caution

Refer to Fastener Caution

2. Catalytic Converter Brace Bracket Nut (2) » Install and tighten — Fastener Specifications

3. Battery Negative Cable Extension Cable Strap (1) » Install

4. Battery Negative Cable Ground Nut (2) » Install and tighten — Fastener Specifications

5. Front Wheelhouse Liner - Right Side (3) » Install — Front Wheelhouse Liner Replacement
