Tahoe / Yukon Service Manual

Case Extension Disassemble (2WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4738756 Single Use Fasteners and Components Propeller Shaft Transmission Flange Fluid Seal Special Tools DT-45000 Seal Remover Equivalent regional tools: Special Tools

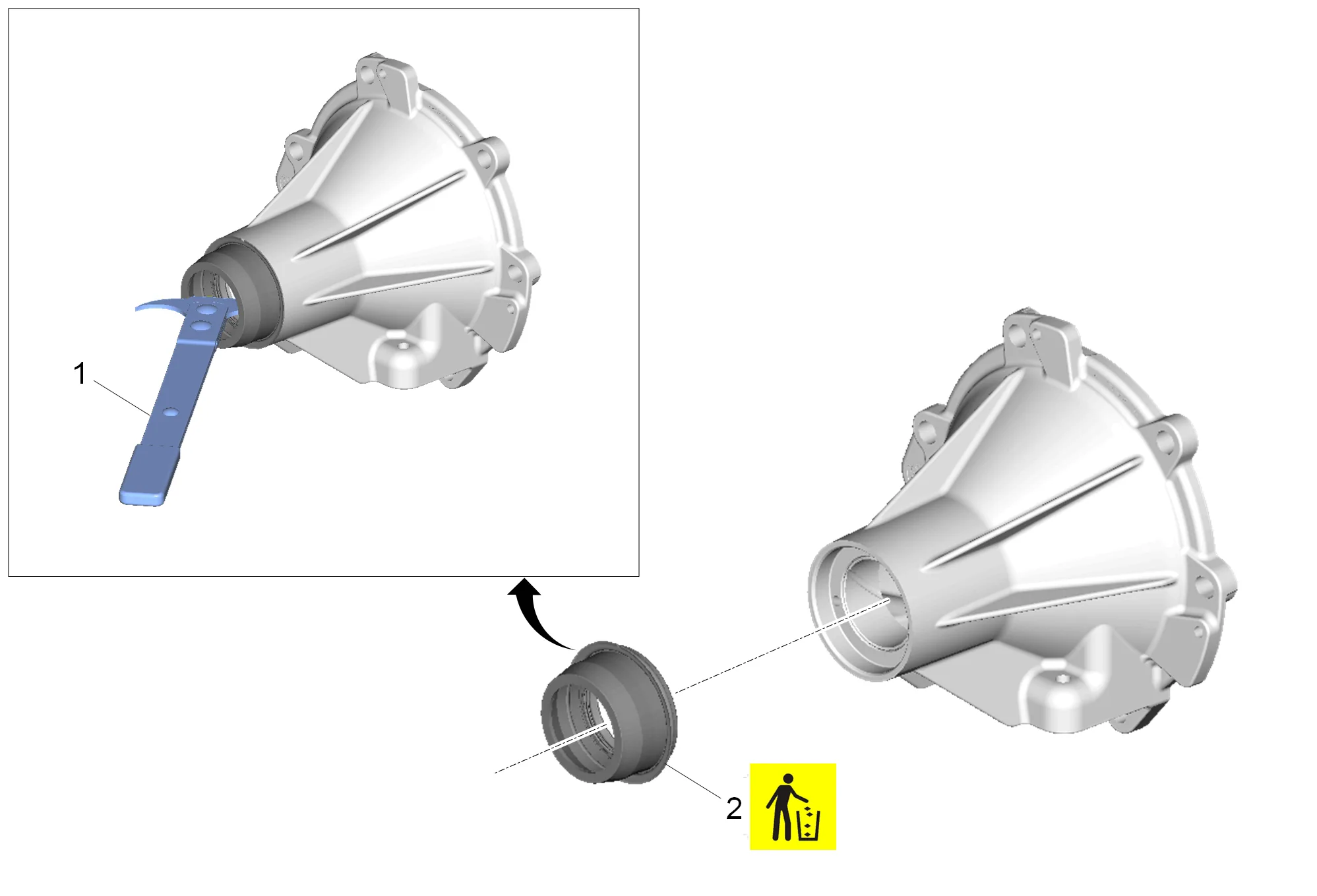

Case Extension Disassemble (2WD) — figure 1
Case Extension Disassemble (2WD) — figure 1
  1. Use the DT-45000 Seal Remover (1) to remove the Propeller Shaft Transmission Flange Fluid Seal (2).
  2. Propeller Shaft Transmission Flange Fluid Seal (2) » Remove and DISCARD
