Suspension Control Module Replacement

Removal Procedure

1. Spare Wheel » Remove
2. Raise and support the vehicle. Lifting and Jacking the Vehicle

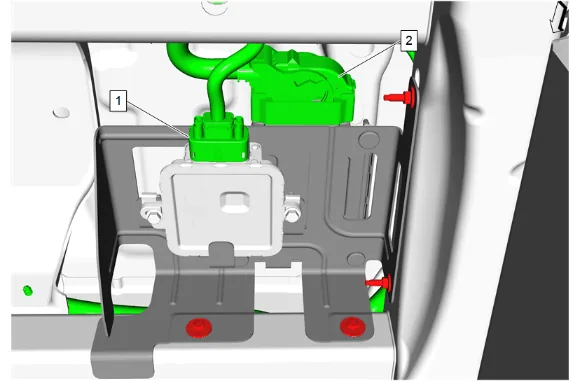

Suspension Control Module Replacement — figure 1

3. If equipped, disconnect the trailer brake control module wire harness connector (1).
4. Disconnect the electronic suspension control module wire harness connector (2).

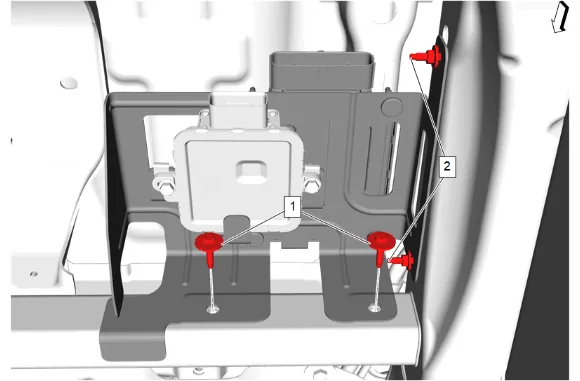

Suspension Control Module Replacement — figure 2

5. Electronic Suspension Control Module Bracket Bolt (1) » Remove [2x]

Note

The electronic suspension control module bracket nuts and studs are part of the bracket. Turn the stud right to loosen.

6. Loosen the 2 electronic suspension control module bracket studs (2).

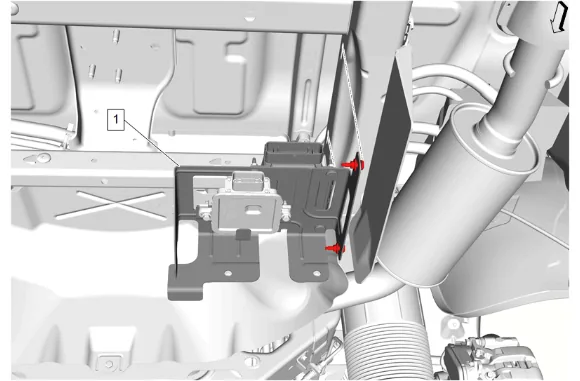

Suspension Control Module Replacement — figure 3

7. Remove the electronic suspension control module bracket (1) from the keyhole slot at the frame.

Suspension Control Module Replacement — figure 4

8. Electronic Suspension Control Module Bracket Nut (1) » Remove [4x]

9. Electronic Suspension Control Module (2) » Remove Installation Procedure

10. Electronic Suspension Control Module (2) » Install

Caution

Refer to Fastener Caution.

2. Electronic Suspension Control Module Bracket Nut (1) » Install and tighten [4x] — Fastener Specifications

3. Install the electronic suspension control module bracket (1) in to the keyhole slot at the frame.

Note

The electronic suspension control module bracket nuts and studs are part of the bracket. Turn the stud left to tighten.

4. Tighten the 2 electronic suspension control module bracket studs (2). Fastener Specifications

5. Electronic Suspension Control Module Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Connect the electronic suspension control module wire harness connector (2).

7. If equipped, connect the trailer brake control module wire harness connector (1).

8. Spare Wheel » Install

9. Remove the support and lower the vehicle.

10. After installation, program the module. Control Module References
