Case Extension Assembly Removal (4WD)

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - Off Vehicle | Document ID: 4742087 Single Use Fasteners and Components Automatic Transmission Case Extension Seal

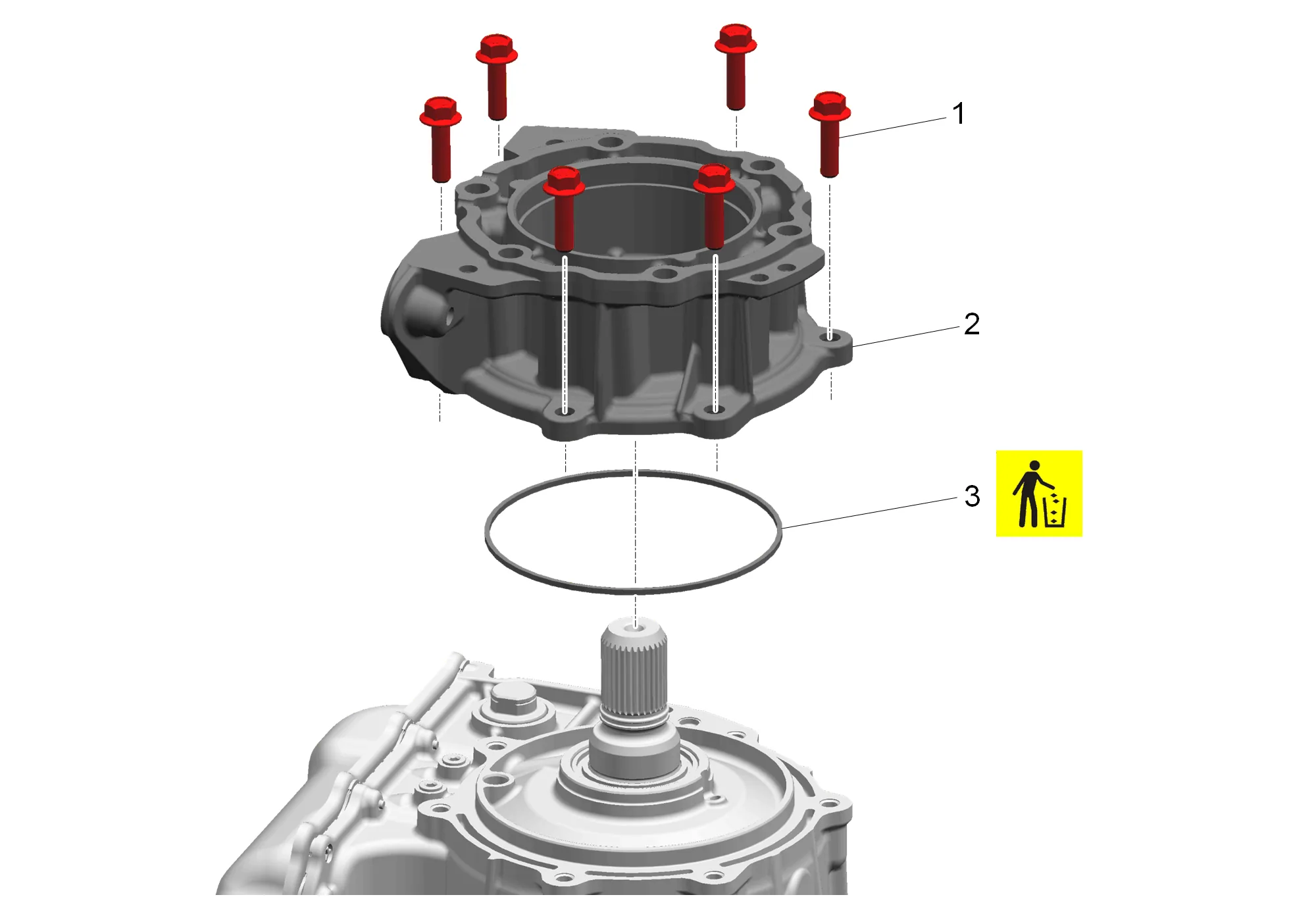

Case Extension Assembly Removal (4WD) — figure 1

1. Automatic Transmission Case Extension Bolt (1) » Remove [6x]
2. Automatic Transmission Case Extension (2) » Remove
3. Allow any remaining transmission fluid to drain from the case extension.
4. Automatic Transmission Case Extension Seal (3) » Remove and DISCARD
