Valve Rocker Arm Cover Insulator Replacement - Left Side (L84)

Valve Rocker Arm Cover Insulator Replacement - Left Side (L84) Removal Procedure

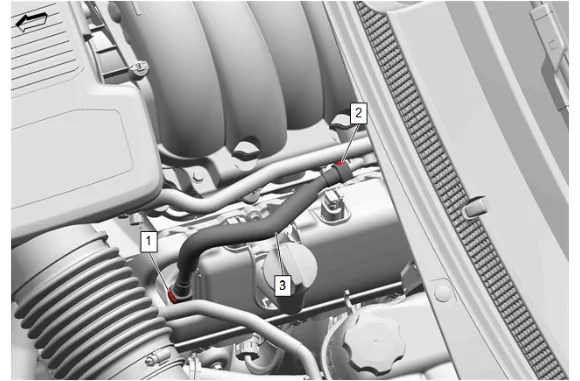

Valve Rocker Arm Cover Insulator Replacement - Left Side (L84) — figure 1

1. Positive Crankcase Ventilation Tube Connector (1) @ Positive Crankcase Ventilation Fitting » Disconnect and reposition — Plastic Collar Quick Connect Fitting Service

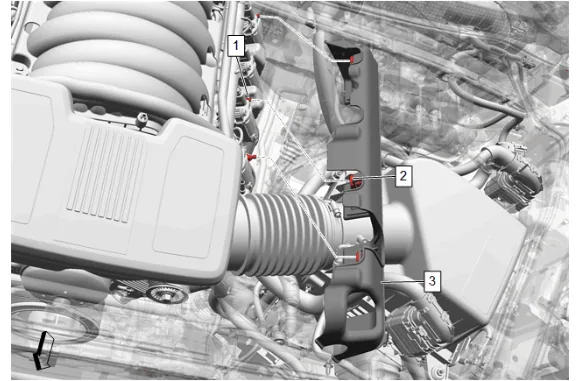

Valve Rocker Arm Cover Insulator Replacement - Left Side (L84) — figure 2

2. Grasp the valve rocker arm cover insulator (3) and lift up disengaging the 3 upper intake manifold sight shield grommets (2) from the 3 valve rocker arm cover insulator retainers (1).

3. Valve Rocker Arm Cover Insulator (3) » Remove

4. Inspect the 3 upper intake manifold sight shield grommets (2) on the valve rocker arm cover insulator and replace as necessary. Installation Procedure

5. Valve Rocker Arm Cover Insulator (3) » Install

6. Install the 3 upper intake manifold sight shield grommets (2) to the 3 valve rocker arm cover insulator retainers (1).

7. Positive Crankcase Ventilation Tube Connector (1) @ Positive Crankcase Ventilation Fitting » Install — Plastic Collar Quick Connect Fitting Service
