Front Upper Control Arm Replacement - Left Side (ZW7, Z56)

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) Special Tools CH-42188–B Ball Joint Separator Equivalent regional tools: Special Tools Removal Procedure

1. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 1

2. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 2

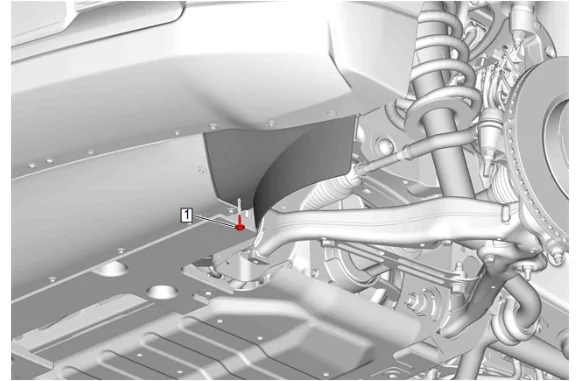

3. { If equipped } Front Bumper Fascia Bolt (1) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 3

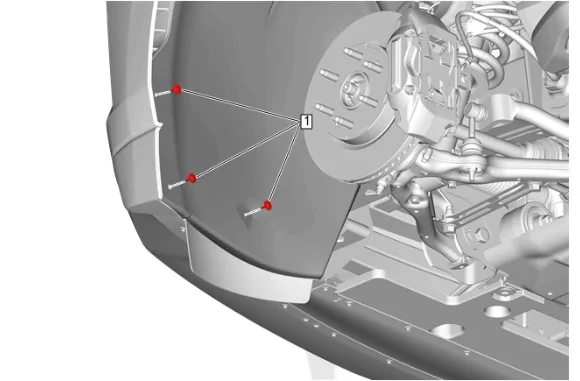

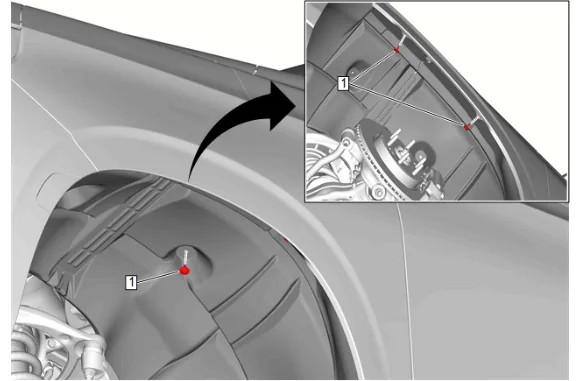

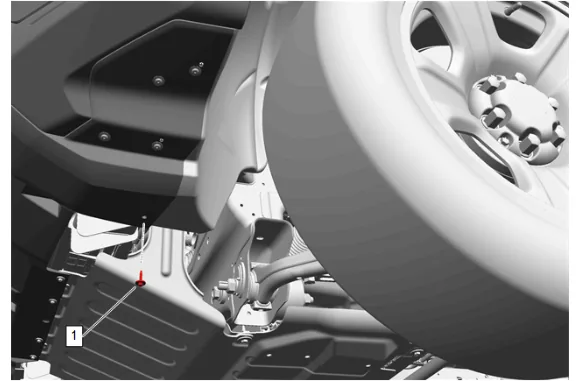

4. Front Wheelhouse Liner Bolt (1) » Remove [3x]

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 4

Note

Quantity of fasteners may vary based on option content.

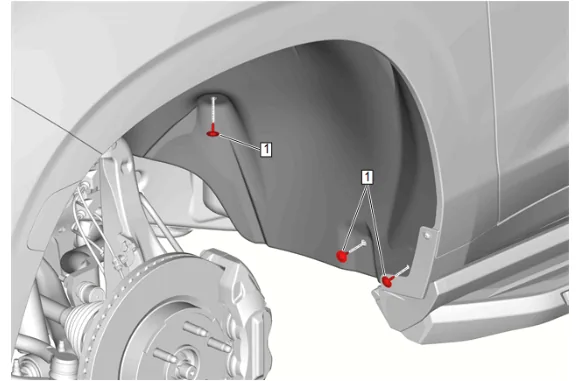

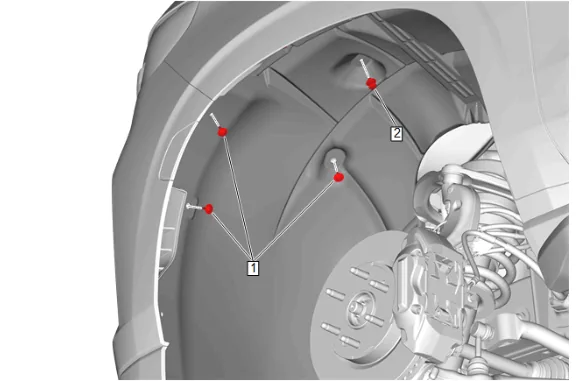

5. Front Wheelhouse Liner Bolt (1) » Remove [3x]
6. Front Wheelhouse Liner Retainer (2) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 5

7. Front Wheelhouse Liner Bolt (1) » Remove [3x]

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 6

8. Front Wheelhouse Liner Bolt (1) » Remove [3x]

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 7

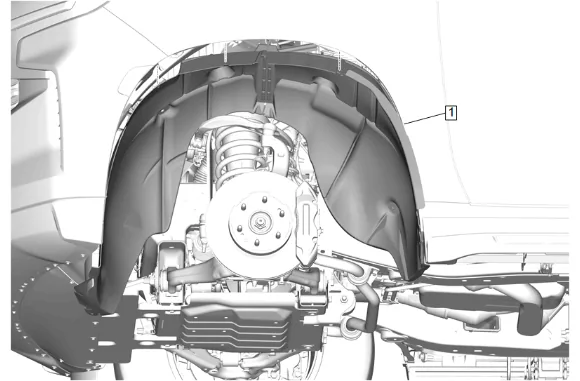

9. Front Wheelhouse Liner » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 8

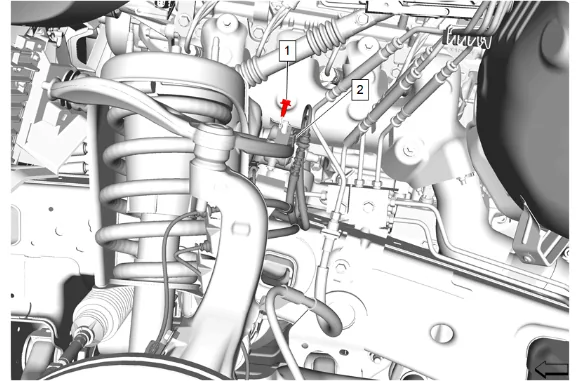

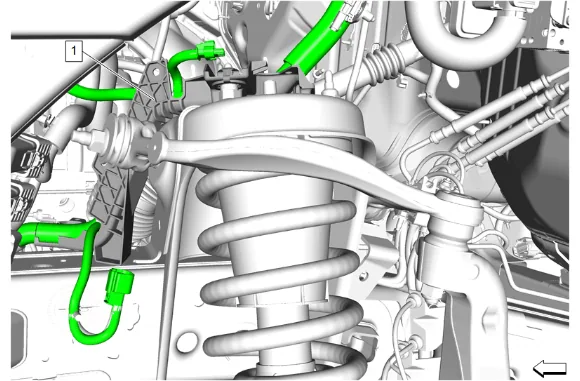

10. Unclip and reposition the chassis wiring harness bracket (1) away from the frame shock tower.

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 9

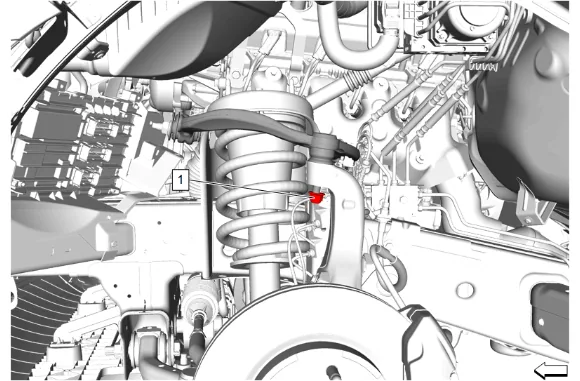

11. Remove the front wheel speed sensor bracket bolt (1) and reposition the front wheel speed sensor bracket (2) away from the front upper control arm.

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 10

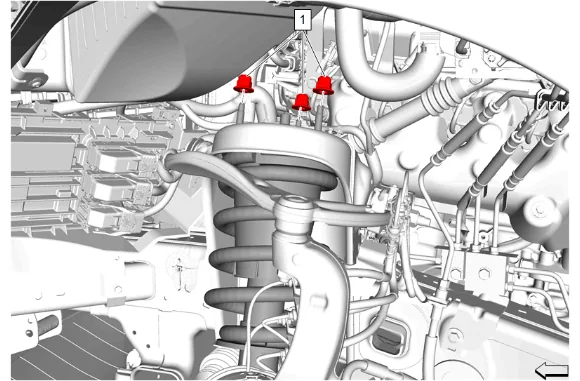

12. Front Shock Absorber Nut (1) » Remove [3x]

Caution

When working around ball joints, visually inspect the ball joint boots before and after service work is performed to ensure no damage has occurred. If damage to the boot is observed, the ball joint must be replaced.

Note

Using a jack stand support the lower control arm to prevent over-articulation of the front lower control arm ball joint.

13. Support the front lower control arm with a suitable jack stand.

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 11

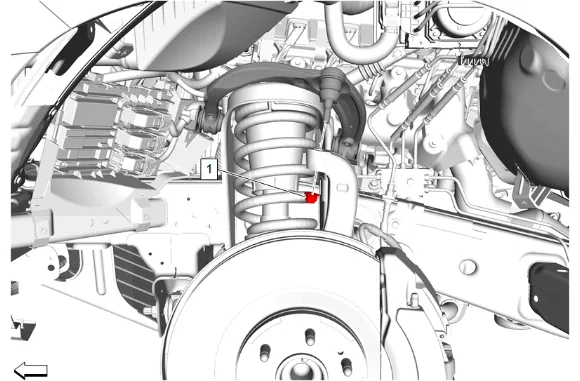

14. Front Brake Hose Bracket Bolt (1) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 12

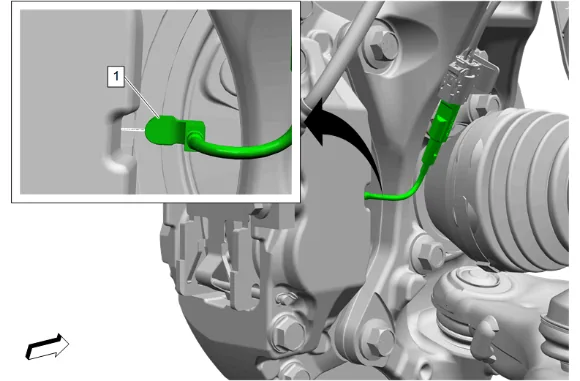

15. { If equipped } Front Disc Brake Pad Wear Sensor (1) @ Front Brake Caliper » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 13

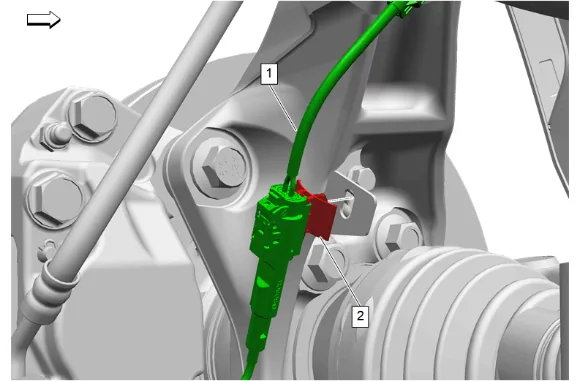

16. { If equipped } Front Disc Brake Pad Wear Sensor Retainer (2) » Remove
17. { If equipped } Position the front disc brake pad wear sensor wiring harness (1) out of the way.

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 14

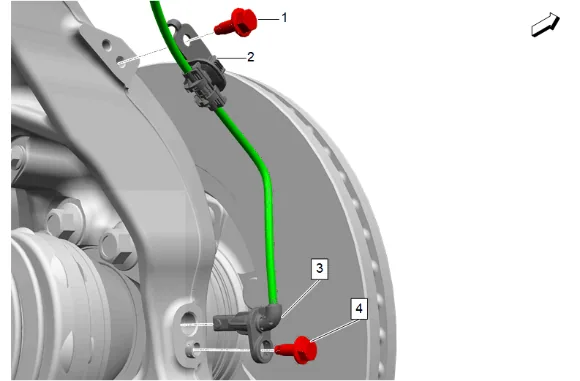

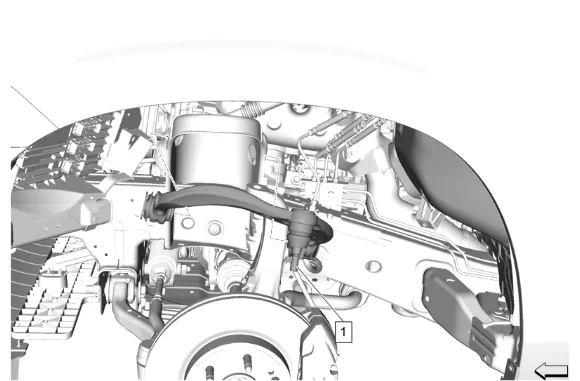

18. Front Wheel Speed Sensor Bolt (4) » Remove
19. Front Wheel Speed Sensor Bracket Bolt (1) » Remove
20. Front Wheel Speed Sensor (3) » Remove
21. Front Wheel Speed Sensor Bracket (2) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 15

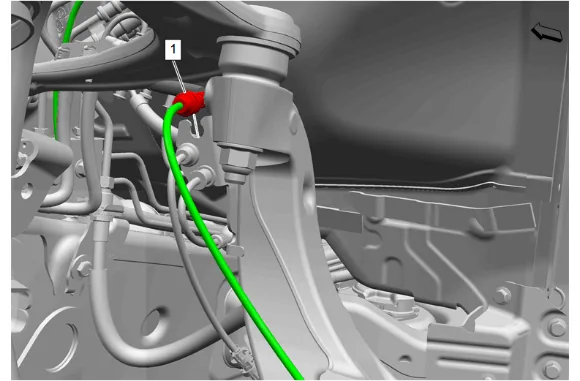

22. Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 16

23. Front Upper Control Arm Ball Stud Nut (1) » Loosen

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 17

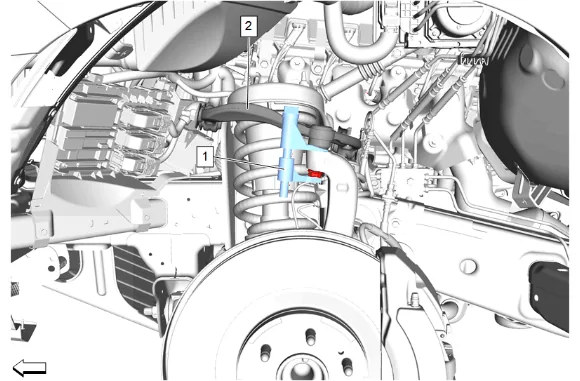

24. Using the CH-42188–B Ball Joint Separator(1) , separate the left front upper control arm (2) from the steering knuckle.
25. Remove the CH-42188–B Ball Joint Separator(1) from the left front upper control arm (2) and the steering knuckle.

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 18

26. Front Upper Control Arm Ball Stud Nut (1) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 19

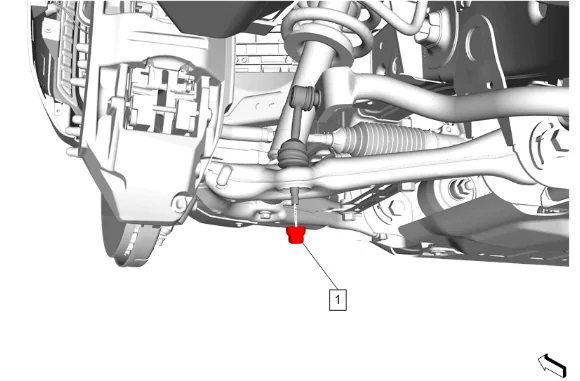

27. Front Stabilizer Shaft Link Nut (1) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 20

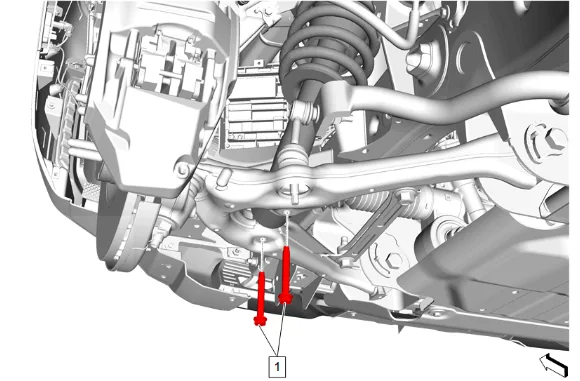

28. Front Shock Absorber Bolt (1) » Remove [2x]
29. Remove the jack stand from under the front suspension lower control arm.

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 21

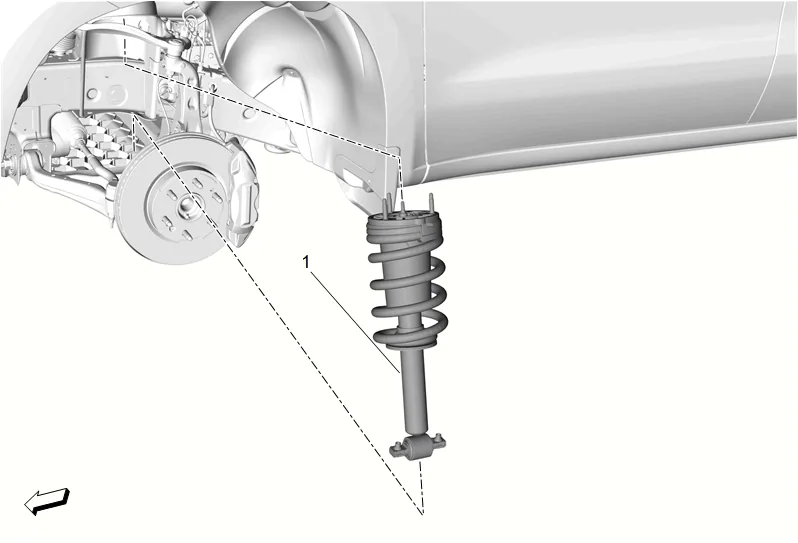

30. Front Shock Absorber (1) » Remove

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 22

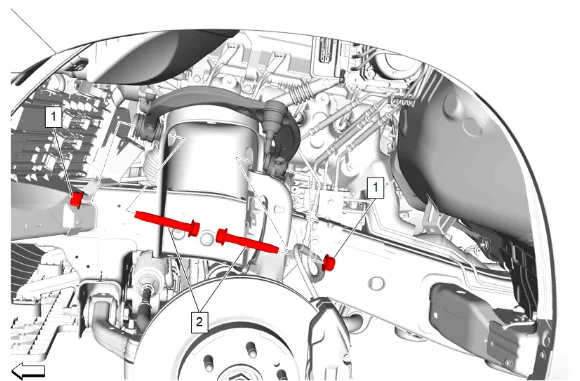

31. Front Upper Control Arm Nut (1) » Remove [2x]
32. Front Upper Control Arm Bolt (2) » Remove [2x]

Front Upper Control Arm Replacement - Left Side (ZW7, Z56) — figure 23

33. Front Upper Control Arm - Left Side (1) » Remove Installation Procedure

34. Front Upper Control Arm - Left Side (1) » Install

35. Front Upper Control Arm Bolt (2) » Install [2x]

Caution

Refer to Fastener Caution.

3. Front Upper Control Arm Nut (1) » Install and tighten [2x] — Fastener Specifications

Note

Prior to installing the front shock absorber, you MUST apply anti-corrosion wax to the frame shock tower.

4. Apply anti-corrosion wax to the frame shock tower. Anti-Corrosion Treatment and Repair

5. Front Shock Absorber (1) » Install

Note

Using a jack stand support the lower control arm to prevent over-articulation of the front lower control arm ball joint.

6. Front Shock Absorber Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Front Stabilizer Shaft Link Nut (1) » Install and tighten — Fastener Specifications

8. Front Upper Control Arm Ball Stud Nut (1) » Install and tighten — Fastener Specifications

9. Front Shock Absorber Nut (1) » Install and tighten [3x] — Fastener Specifications

10. Reposition and install the front wheel speed sensor bracket (2).

11. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

12. Front Wheel Speed Sensor Wiring Harness (1) @ Wiring Harness Bracket » Install

13. Front Wheel Speed Sensor Bracket (2) » Install

14. Front Wheel Speed Sensor Bracket Bolt (1) » Install and tighten — Fastener Specifications

15. Front Wheel Speed Sensor (3) » Install

16. Front Wheel Speed Sensor Bolt (4) » Install and tighten — Fastener Specifications

17. { If equipped } Position the front disc brake pad wear sensor wiring harness (1) into place.

18. { If equipped } Front Disc Brake Pad Wear Sensor Retainer (2) » Install

19. { If equipped } Front Disc Brake Pad Wear Sensor (1) @ Front Brake Caliper » Install

20. Front Brake Hose Bracket Bolt (1) » Install and tighten — Fastener Specifications

21. Reposition and install the chassis wiring harness bracket (1) to the frame shock tower.

22. Remove the jack stand from under the front lower control arm.

23. Front Wheelhouse Liner » Install

24. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

25. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content.

26. Front Wheelhouse Liner Retainer (2) » Install

27. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

28. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

29. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten — Fastener Specifications

30. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

31. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
