Rear Side Door Wiring Harness Replacement

Removal Procedure

1. Rear Side Door Trim » Remove — Rear Side Door Trim Removal and Installation

Rear Side Door Wiring Harness Replacement — figure 1

2. Radio Rear Side Door Speaker Bolt (1) » Remove
3. Radio Rear Side Door Speaker (2) » Remove
4. Disconnect the electrical connector.

Rear Side Door Wiring Harness Replacement — figure 2

5. Rear Side Door Trim Bolt (1) » Remove [2x]
6. Rear Side Door Pull Handle Bracket (2) » Remove

Rear Side Door Wiring Harness Replacement — figure 3

7. Route the rear side door inside handle cable through hole in the rear side door water deflector (1).
8. Rear Side Door Water Deflector (1) » Remove

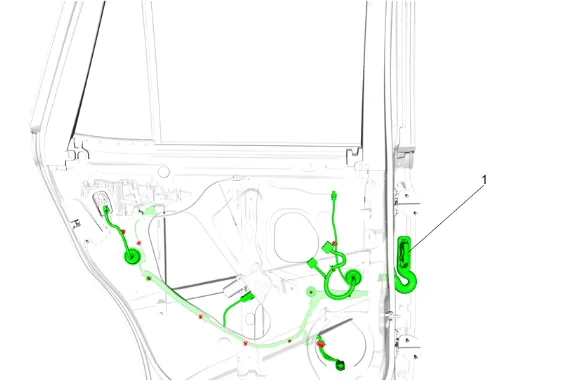

Rear Side Door Wiring Harness Replacement — figure 4

Note

Typical wiring harness shown, individual harness may be different due to option content.

9. Rear Side Door Wiring Harness (1) » Remove Installation Procedure

10. Rear Side Door Wiring Harness (1) » Install

Note

When reinstalling the rear side door water deflector ensure integral locators are installed properly and the rear side door water deflector is secured and leakproof.

2. Route the rear side door inside handle cable through hole in rear side door water deflector (1).

3. Rear Side Door Water Deflector (1) » Install

4. Rear Side Door Pull Handle Bracket (2) » Install

Caution

Refer to Fastener Caution.

5. Rear Side Door Trim Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Connect the electrical connector.

7. Radio Rear Side Door Speaker (2) » Install

8. Radio Rear Side Door Speaker Bolt (1) » Install and tighten — Fastener Specifications

9. Rear Side Door Trim » Install — Rear Side Door Trim Removal and Installation
