Front Floor Console Cup Holder Trim Plate Replacement (D07)

Front Floor Console Cup Holder Trim Plate Replacement (D07) Removal Procedure

Front Floor Console Cup Holder Trim Plate Replacement (D07) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Cup Holder Trim Plate Replacement (D07) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

Front Floor Console Cup Holder Trim Plate Replacement (D07) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Front Floor Console Lower Applique (1) » Remove

Front Floor Console Cup Holder Trim Plate Replacement (D07) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Front Floor Console Applique (1) » Remove

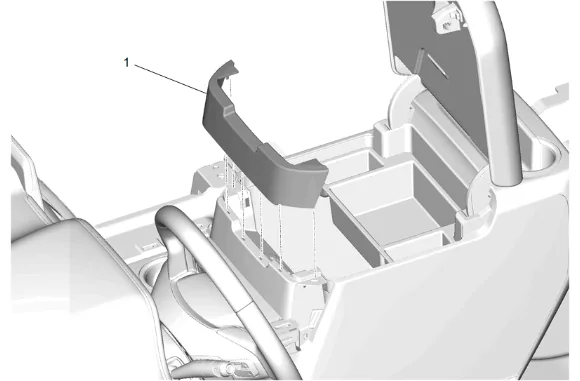

Front Floor Console Cup Holder Trim Plate Replacement (D07) — figure 5

9. Using a suitable plastic trim tool, release the retaining tabs.
10. Front Floor Rear Console Side Trim Panel (1) » Remove

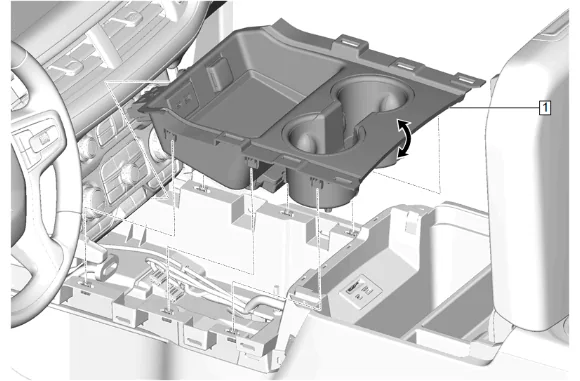

Front Floor Console Cup Holder Trim Plate Replacement (D07) — figure 6

11. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.

12. Disconnect the electrical connectors.

13. Front Floor Console Cup Holder Trim Plate (1) » Remove

14. Transfer components as necessary. Installation Procedure

15. Connect the electrical connectors.

16. Front Floor Console Cup Holder Trim Plate (1) » Install

17. Front Floor Rear Console Side Trim Panel (1) » Install

18. Front Floor Console Applique (1) » Install

19. Front Floor Console Lower Applique (1) » Install

20. Front Floor Console Applique (1) » Install

21. Front Floor Console Lower Applique (1) » Install
