Front Floor Console Extension Panel Replacement - Left Side

Front Floor Console Extension Panel Replacement - Left Side Removal Procedure

Front Floor Console Extension Panel Replacement - Left Side — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

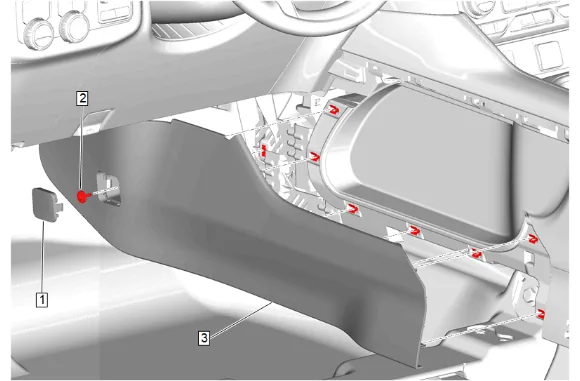

Front Floor Console Extension Panel Replacement - Left Side — figure 2

Note

Use a flat bladed plastic trim tool.

3. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove

4. Front Floor Console Extension Bolt (2) » Remove

5. Move the front seat to access the retainers.

6. Front Floor Console Extension Panel (3) » Remove Installation Procedure

7. Front Floor Console Extension Panel (3) » Install

Caution

Refer to Fastener Caution.

2. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

3. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

4. Front Floor Console Lower Applique (1) » Install
