Hood Strut Replacement

Warning

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Caution

Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Removal Procedure

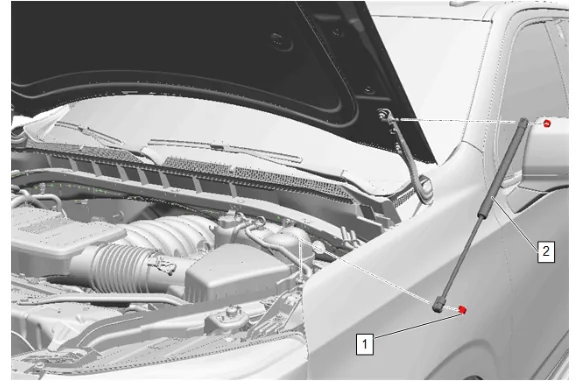

Hood Strut Replacement — figure 1

1. Remove the 2 metal clips (1) at the ends of the hood strut (2).
2. Hood Strut (2) » Remove Installation Procedure

Note

Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.

1. Hood Strut (2) » Install
2. Install the 2 metal clips (1)  to each end of the hood strut (2).
