Front Floor Rear Console Side Trim Panel Replacement

Removal Procedure

Front Floor Rear Console Side Trim Panel Replacement — figure 1
Front Floor Rear Console Side Trim Panel Replacement — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Lower Applique (1) » Remove
Front Floor Rear Console Side Trim Panel Replacement — figure 2
Front Floor Rear Console Side Trim Panel Replacement — figure 2
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Applique (1) » Remove
Front Floor Rear Console Side Trim Panel Replacement — figure 3
Front Floor Rear Console Side Trim Panel Replacement — figure 3
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Lower Applique (1) » Remove
Front Floor Rear Console Side Trim Panel Replacement — figure 4
Front Floor Rear Console Side Trim Panel Replacement — figure 4
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Front Floor Console Applique (1) » Remove

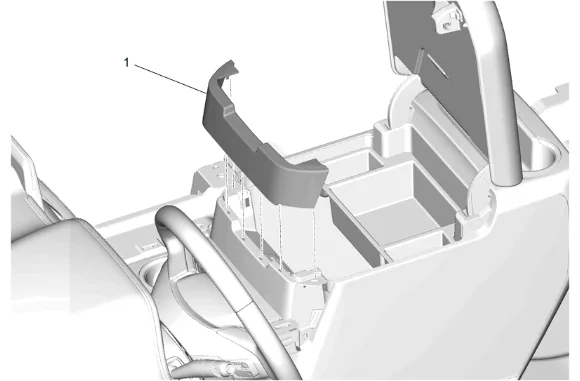

Front Floor Rear Console Side Trim Panel Replacement — figure 5
Front Floor Rear Console Side Trim Panel Replacement — figure 5

  1. Using a suitable plastic trim tool, release the retaining tabs.

  2. Front Floor Rear Console Side Trim Panel (1) » Remove Installation Procedure

  3. Front Floor Rear Console Side Trim Panel (1) » Install

  4. Front Floor Console Applique (1) » Install

  5. Front Floor Console Lower Applique (1) » Install

  6. Front Floor Console Applique (1) » Install

  7. Front Floor Console Lower Applique (1) » Install
