Lighting Control Module Replacement

Removal Procedure

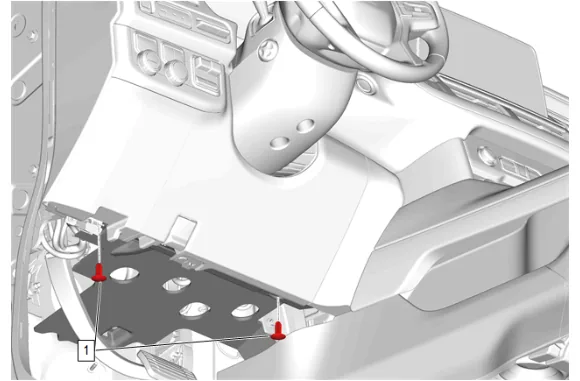

Lighting Control Module Replacement — figure 1

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

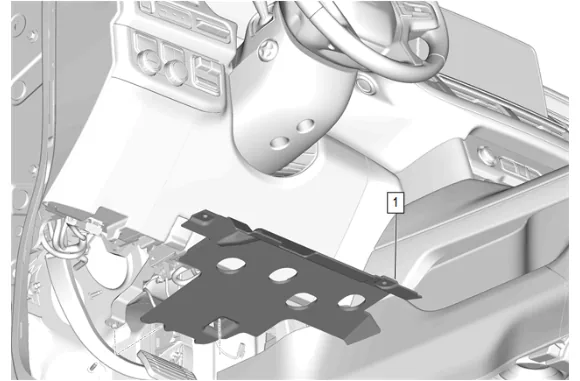

Lighting Control Module Replacement — figure 2

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove

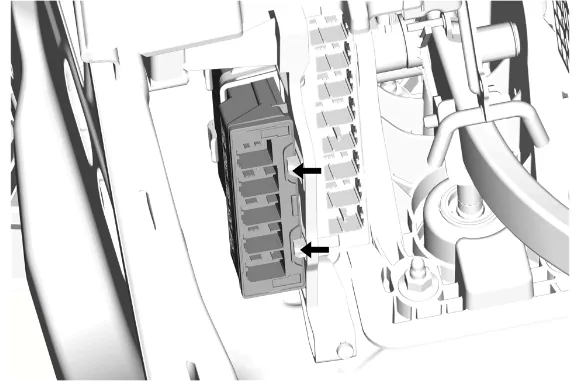

Lighting Control Module Replacement — figure 3

3. Disconnect the electrical connectors.
4. Release the retaining tabs.

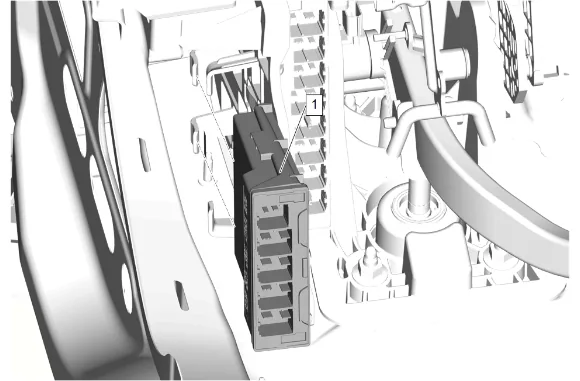

Lighting Control Module Replacement — figure 4

5. Lighting Control Module (1) » Remove Installation Procedure

6. Lighting Control Module (1) » Install

7. Ensure the retaining tabs have fully secured.

8. Connect the electrical connectors.

9. Instrument Panel Lower Trim Panel Insulator (1) » Install

10. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

11. Perform the necessary programming and setup procedure: Control Module References
