Transmission Control Module Replacement

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5599024

Warning

Refer to Safety Glasses Warning.

Caution

Always turn the ignition off when installing or removing the ECM connectors in order to prevent damage to the components.

Caution

Turn the ignition OFF when installing or removing the control module connectors and disconnecting or reconnecting the power to the control module (battery cable, powertrain control module (PCM)/engine control module (ECM)/transaxle control module (TCM) pigtail, control module fuse, jumper cables, etc.) in order to prevent internal control module damage. Control module damage may result when the metal case contacts battery voltage. DO NOT contact the control module metal case with battery voltage when servicing a control module, using battery booster cables, or when charging the vehicle battery. In order to prevent any possible electrostatic discharge damage to the control module, do no touch the connector pins or the soldered components on the circuit board. Remove any debris from around the control module connector surfaces before servicing the control module. Inspect the control module connector gaskets when diagnosing or replacing the control module. Ensure that the gaskets are installed correctly. The gaskets prevent contaminant intrusion into the control module. The replacement control module must be programmed. Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

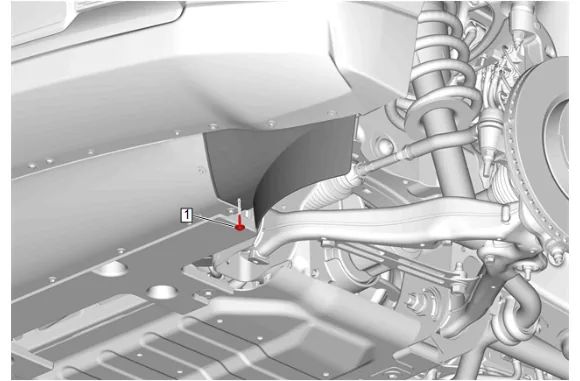

Transmission Control Module Replacement — figure 1

3. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

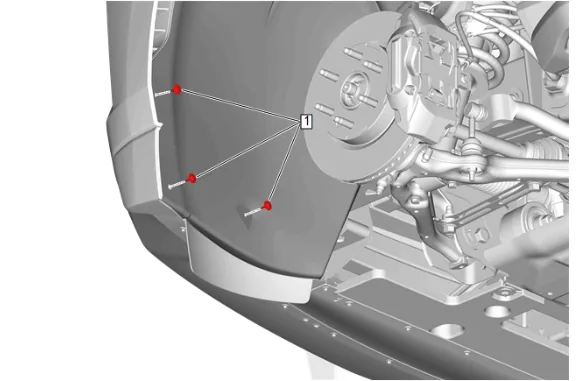

Transmission Control Module Replacement — figure 2

Note

Quantity of fasteners may vary based on option content.

4. Front Wheelhouse Liner Bolt (1) » Remove [3x]

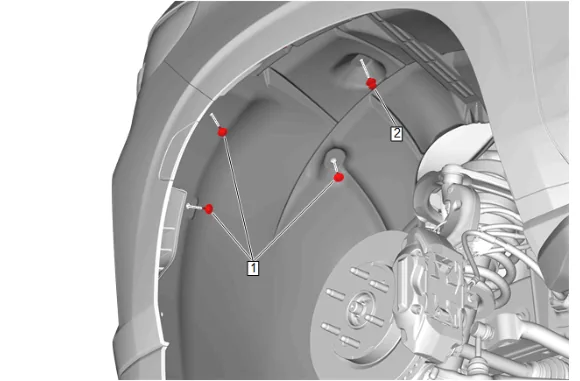

Transmission Control Module Replacement — figure 3

Note

Quantity of fasteners may vary based on option content.

5. Front Wheelhouse Liner Bolt (1) » Remove [3x]
6. Front Wheelhouse Liner Retainer (2) » Remove

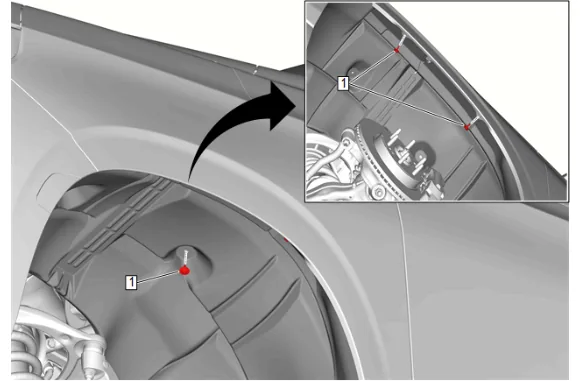

Transmission Control Module Replacement — figure 4

7. Front Wheelhouse Liner Bolt (1) » Remove [3x]
8. Reposition the front wheelhouse liner rearward.

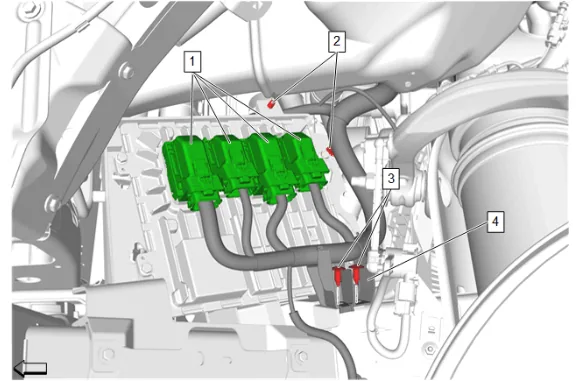

Transmission Control Module Replacement — figure 5

9. Disconnect the electrical connectors. (1)
10. Engine Wiring Harness Retainer (2) » Disengage [2x]
11. Engine Wiring Harness Channel Retainer (3) » Remove [2x]
12. Engine Wiring Harness (4) » Reposition

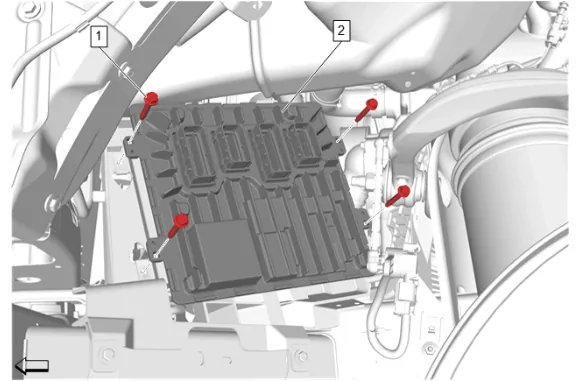

Transmission Control Module Replacement — figure 6

13. Engine Control Module Bolt (1) » Remove [4x]
14. Engine Control Module (2) » Remove

Transmission Control Module Replacement — figure 7

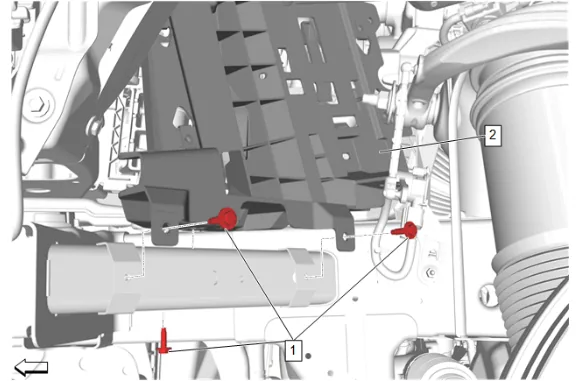

15. Engine Control Module Bracket Bolt (1) » Remove [3x]
16. Engine Control Module Bracket (2) » Reposition

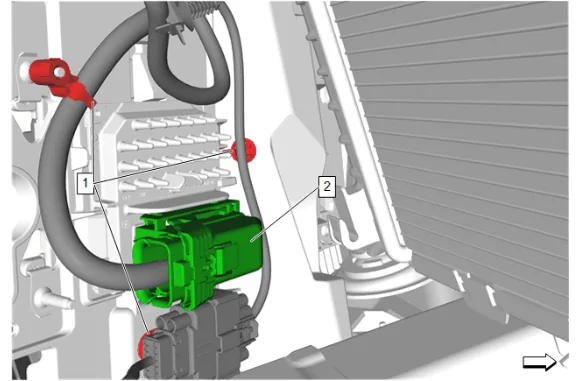

Transmission Control Module Replacement — figure 8

17. Engine Wiring Harness Retainer (1) » Disengage [2x]
18. Disconnect the electrical connector. (2)

Transmission Control Module Replacement — figure 9

19. Use a suitable tool to release the locking tab and remove the transmission control module (1) by sliding it out from the engine control module bracket (2). Installation Procedure

20. Transmission Control Module (1) @ Engine Control Module Bracket (2) » Install

21. Engine Control Module Bracket (2) » Move into position

22. Connect the electrical connector. (2)

23. Engine Wiring Harness Retainer (1) » Engage [2x]

24. Engine Control Module Bracket (2) » Install

Caution

Refer to Fastener Caution.

6. Engine Control Module Bracket Bolt (1) » Install and tighten [3x] — Fastener Specifications

7. Engine Control Module (2) » Install

8. Engine Control Module Bolt (1) » Install and tighten [4x] — Fastener Specifications

9. Engine Wiring Harness Retainer (1) @ Engine Control Module Bolt » Engage

10. Engine Wiring Harness (4) » Install

11. Engine Wiring Harness Channel Retainer (3) » Install [2x]

12. Engine Wiring Harness Retainer (2) » Engage [2x]

13. Connect the electrical connectors. (1)

14. Reposition the front wheelhouse liner forward.

15. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

16. Front Wheelhouse Liner Retainer (2) » Install

Note

Quantity of fasteners may vary based on option content.

17. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

Note

Quantity of fasteners may vary based on option content.

18. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

19. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

20. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

21. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

22. Program the transmission control module. Control Module References
