Automatic Transmission Fluid Pump Driven Gear Baffle Replacement

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5584467 Automatic Transmission Fluid Pump Driven Gear Baffle Replacement Single Use Fasteners and Components Exhaust System Seal - Left Side Exhaust System Seal - Right Side Removal Procedure

Automatic Transmission Fluid Pump Driven Gear Baffle Replacement — figure 1

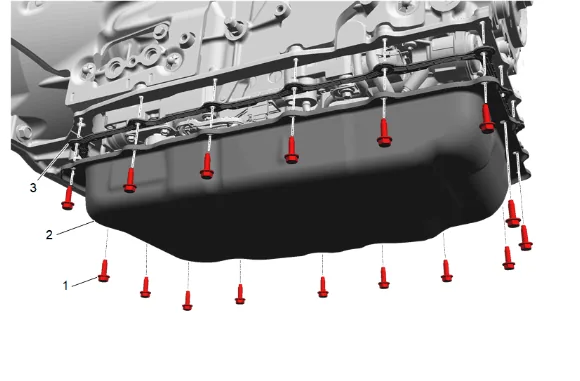

1. Automatic Transmission Fluid Pan (2) » Remove — Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement

Automatic Transmission Fluid Pump Driven Gear Baffle Replacement — figure 2

Note

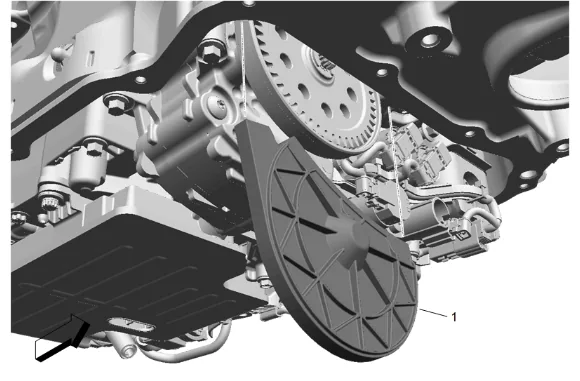

Only the front portion of the baffle is removed, the rear portion of the baffle remains fastened to the pump.

2. Unsnap and remove the automatic transmission fluid pump driven gear baffle (1). Installation Procedure

3. Install and snap the automatic transmission fluid pump driven gear baffle (1) into place.

4. Automatic Transmission Fluid Pan (2) » Install — Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement
