Accessory AC and DC Power Control Module Replacement (with 9C1)

Accessory AC and DC Power Control Module Replacement (with 9C1) Removal Procedure

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

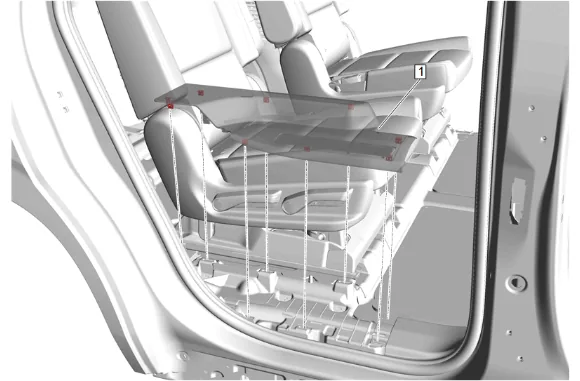

2. Place the rear seat in the fold and tumble position.

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 1

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Rear Side Door Sill Garnish Molding (1) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 2

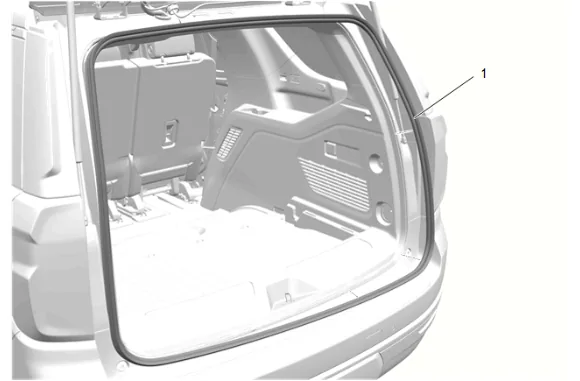

5. Liftgate Weatherstrip (1) » Reposition

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 3

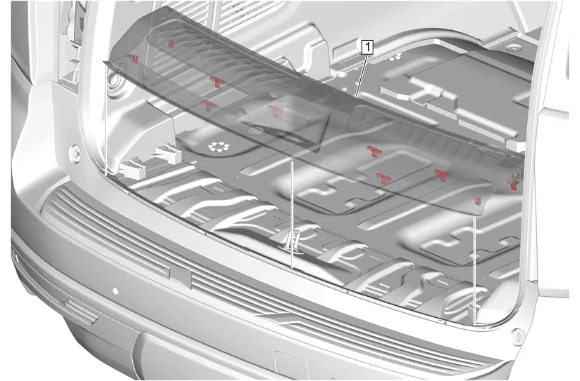

6. Liftgate Lock Striker Cover (1) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Rear End Trim Finish Panel (1) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 5

9. Rear Seat Belt Retractor Sleeve (1) » Reposition
10. Rear Seat Belt Anchor Plate Bolt (2) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 6

11. Rear Seat Belt Opening Bezel (1) » Disengage

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 7

12. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
13. Quarter Window Trim Finish Panel Bolt (2) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 8

14. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

15. Body Lock Pillar Upper Trim Panel (1) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 9

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 10

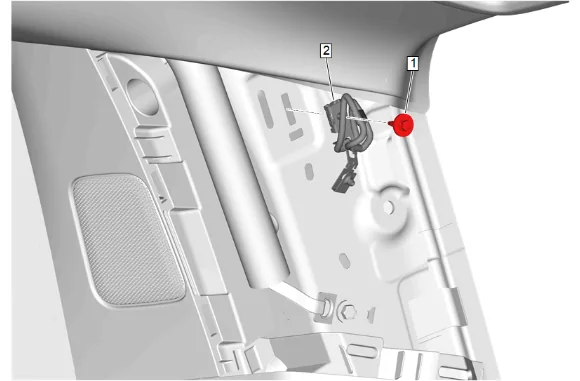

18. Body Side Rear Window Garnish Molding Bolt (1) » Remove
19. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 11

20. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 12

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Body Rear Corner Upper Garnish Molding (1) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 13

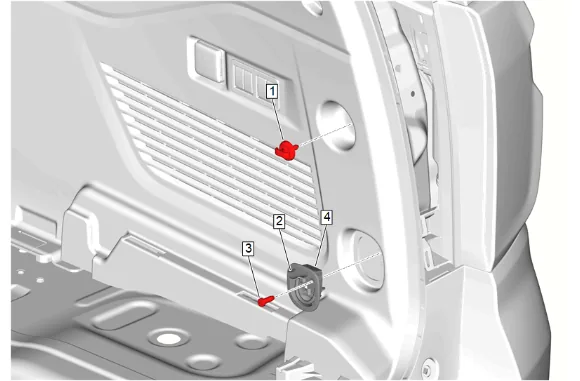

23. Convenience Net Retainer (1) » Remove
24. Cargo Tie Down Loop Bolt Cap (2) » Open
25. Cargo Tie Down Loop Bolt (3) » Remove
26. Cargo Tie Down Loop (4) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 14

27. Using a flat-bladed plastic trim tool, release the retaining clips.

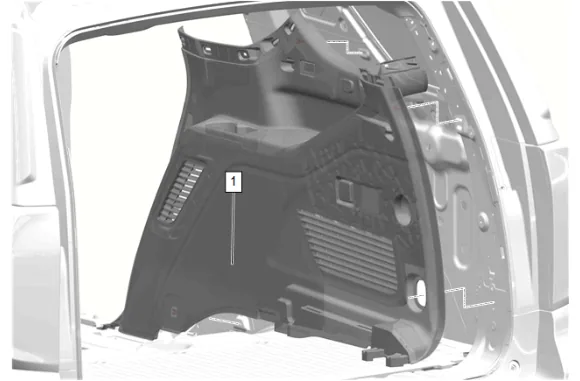

28. Quarter Lower Rear Trim Panel (1) » Remove

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 15

29. Disconnect the electrical connectors (1).
30. Remove the wiring harness retainers (2).

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 16

31. Disconnect the electrical connectors.

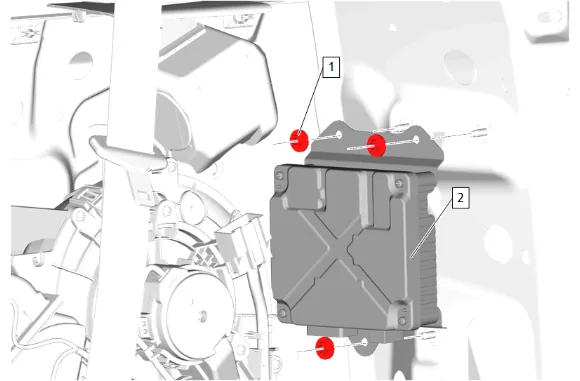

32. Accessory AC and DC Power Control Module Nut (1) » Remove [3x]

33. Accessory AC and DC Power Control Module (2) » Remove Installation Procedure

34. Accessory AC and DC Power Control Module (2) » Install

Caution

Refer to Fastener Caution.

2. Accessory AC and DC Power Control Module Nut (1) » Install and tighten [3x] — Fastener Specifications

3. Connect the electrical connectors.

4. Install the wiring harness retainers (2).

5. Connect the electrical connectors (1).

6. Quarter Lower Rear Trim Panel (1) » Install

7. Cargo Tie Down Loop (4) » Install

8. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

9. Cargo Tie Down Loop Bolt Cap (2) » Close

10. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

11. Body Rear Corner Upper Garnish Molding (1) » Install

12. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

13. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install

14. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Position the body side rear window garnish molding tether in the same position as before the molding removal.

15. Body Side Rear Window Garnish Molding (1) » Install

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

16. Body Lock Pillar Upper Trim Panel (1) » Install

17. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

18. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

19. Rear Seat Belt Opening Bezel (1) » Install

20. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

21. Rear Seat Belt Retractor Sleeve (1) » Reposition

22. Rear End Trim Finish Panel (1) » Install

23. Liftgate Lock Striker Cover (1) » Install

Accessory AC and DC Power Control Module Replacement (with 9C1) — figure 17

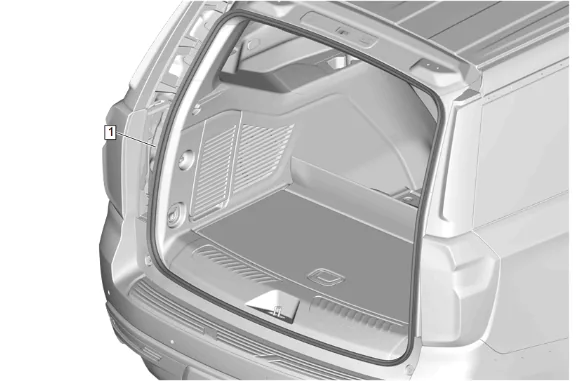

24. Liftgate Weatherstrip (1) » Install

25. Rear Side Door Sill Garnish Molding (1) » Install

26. Return the rear seat to the original position.

27. Enable the SIR System. SIR Disabling and Enabling
