Front Floor Courtesy Lamp Replacement - Left Side

Removal Procedure

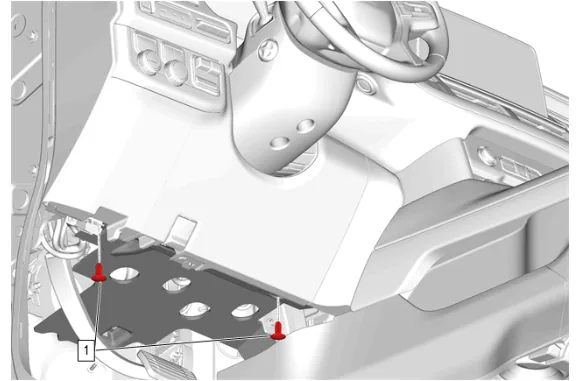

Front Floor Courtesy Lamp Replacement - Left Side — figure 1

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

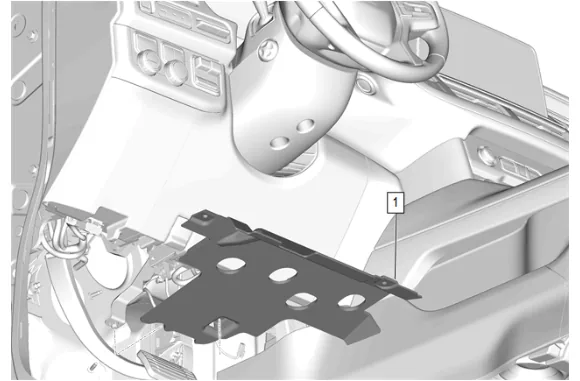

Front Floor Courtesy Lamp Replacement - Left Side — figure 2

2. Instrument Panel Lower Trim Panel Insulator (1) » Remove

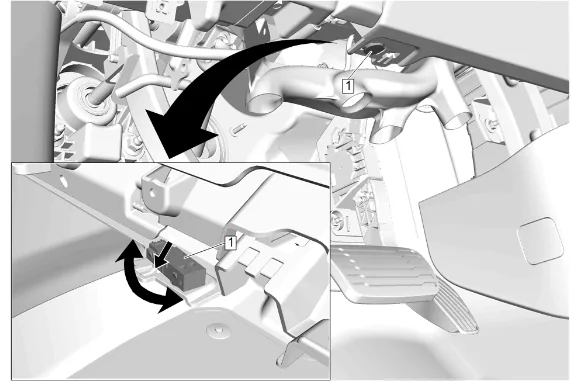

Front Floor Courtesy Lamp Replacement - Left Side — figure 3

3. Release the retaining tab.
4. Rotate the front floor courtesy lamp (1) a quarter turn counterclockwise to release.

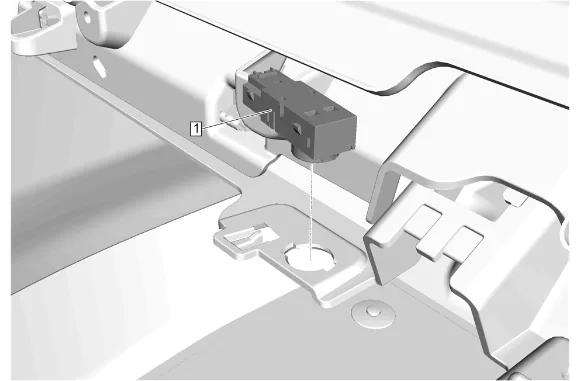

Front Floor Courtesy Lamp Replacement - Left Side — figure 4

5. Front Floor Courtesy Lamp (1) » Remove

6. Disconnect the electrical connector. Installation Procedure

7. Connect the electrical connector.

8. Front Floor Courtesy Lamp (1) » Install

9. Rotate the front floor courtesy lamp (1) a quarter turn clockwise to secure.

10. Secure the retaining tab.

11. Instrument Panel Lower Trim Panel Insulator (1) » Install

12. Instrument Panel Lower Insulator Retainer (1) » Install [2x]
